Specification
Brand : Simmons
BulletPoint1 : Silicon bronze valve body and poppet assembly
BulletPoint2 : Furnished with buna-n O-ring, stainless steel spring, and stainless steel locknut
BulletPoint3 : Foot valves have a working pressure of 400 P. S. I. Female threads
BulletPoint4 : Sealing: The piston adopts a high-quality five-component compact seal for excellent performance, and the rod adopts a standard U-cup polyurethane rod seal with inner O-ring, POM-C wear rings, and polyurethane wiper to ensure excellent sealing performance, which is helpful to solve the problems of oil evaporation, air leakage, and piston blockage.
BulletPoint5 : Hydraulic Power: The double-acting hydraulic cylinder can exert linear motion and force through the hydraulic system(maximum working pressure of 20Mpa), without the need for mechanical gear or lever to generate 5511lbs pull force and 7716lbs thrust force. So, it can achieve maximum performance even under heavy loads.
Color : Black
ConnectorType : Threaded
ExteriorFinish : Stainless Steel
ExternallyAssignedProductIdentifier : 6480303990286
ExternallyAssignedProductIdentifier1 : 008391019168
ExternallyAssignedProductIdentifier2 : 0008391019168
ExternallyAssignedProductIdentifier3 : 00008391019168
GpsrSafetyAttestation : 1
IncludedComponents : Underhood Performance Parts and Accessories;Engine Parts/Gaskets/Seals/Bearings;Engines & Engine Parts Engine Parts/Valves & Parts;automotive engine exhaust valves

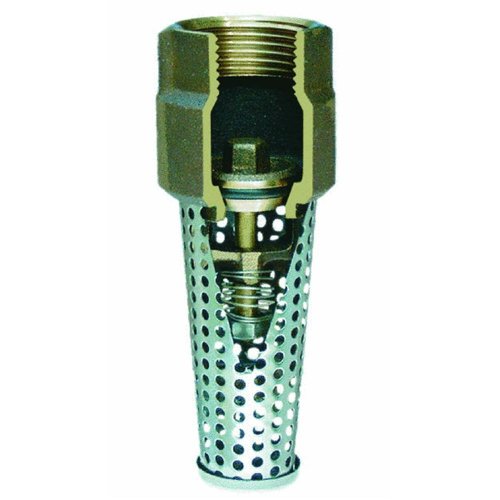

ItemName : SIMMONS MFG 1-1/4 BRZ Foot Valve
ItemPackageDimensions_Height : 5.08 centimeters
ItemPackageDimensions_Length : 13.462 centimeters
ItemPackageDimensions_Width : 5.588 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-check-valves
Manufacturer : SIMMONS MFG CO
Material : Silicone Rubber
Material1 : Stainless Steel
Material2 : Bronze
MaximumOperatingPressure : 400 pounds_per_square_inch
ModelName : 454SB
ModelNumber : 454SB
NumberOfItems : 1
NumberOfPorts : 2
PartNumber : 454SB
ProductDescription :

Description

This double-acting hydraulic cylinder converts the input hydraulic pressure energy into the mechanical energy of the piston's linear motion, thus providing strong pull and thrust for all types of mobile equipment. Its compact shape provides stable performance in compact devices. Through the welding and polishing process, and it is also an ideal for applications in harsh environments.

Specifications

Material: Steel

Color: Black

Process: Polishing and Welding

Surface Treatment: Painting

Pull Force: 2.5t/5511lbs

Thrust Force: 3.5t/7716lbs

Model: 19 11/16-28''

Stroke: 21cm/8.26in

Bore Diameter: 6.3/7.6cm(2.48/2.99in)

Rod Diameter: 3.5cm/1.37in

Joint Bearing Width: 6.4cm/2.51in

Joint Bearing Thickness: 2cm/0.78in

Pin Diameter: 2.5cm/0.98in

Max. Length: 71cm/27.95in

Min. Length: 50cm/19in

Port Size: M14*1.5

Hydraulic Cylinder Work Pressure Max: 20Mpa

Double Pilot Check Valve Port Size: G3/8

Double Pilot Check Valve Press Max: 30Mpa

Double Pilot Check Valve Flow Max: 12L/min

Hydraulic Oil Hose Length: 75cm/29.52in

Hydraulic Oil Hose Port Size: G3/8*19

Packing Size: 60*10*10cm/23.62*3.94*3.94in

Gross Weight: 13kg/28.89lbs

Package Included

1* Double-acting Hydraulic Cylinder

2* Hoses

2* Banjo Bolts

3* Sealing Rings

1* Wrench

1* Bracket

1* English Manual

Notes

1. Always check the cleanliness of oil for pollution. Please do not weld on the tube

2. Please note that the rod must be lubricated. At the same time, pay attention to protect the rod when cleaning.

3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

ProductSiteLaunchDate : 2005-08-17T00:00:00-00:00
Size : 1.25 Inch
SpecificationMet : NSF, ANSI 372
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 40141600
ValveType : foot valve
