Specification
Brand : UP100
BulletPoint1 : 100% full rubber or silicone structure, can meet a variety of high temperature. No clogging good sealing effective prevention of liquid gas backflow
BulletPoint2 : All-rubber structure corrosion resistance long service life good effect And provide a tight seal prevent backflow maintenance-free.
BulletPoint3 : When installing the check valve special attention should be paid to the direction of flow of the medium and the normal flow direction of the medium should be consistent with the direction of the arrow indicated on the valve body otherwise the normal flow of the medium will be cut off. Opening the pressure is small generally open 1-5KPA pressure liquid or gas it can open, good sealing Easy to install
BulletPoint4 : Silicone Duckbill Valve Made from Environmentally friendly silicone material; Outer diameter 15* innr diameter 9.2* height 12.8MM
BulletPoint5 : Package content: 10 x check valve
BulletPoint6 : 1/2" NPT size (lower threads) measures almost 7/8"
BulletPoint7 : The "compression" or "tube" size is easy to determine by measuring the tube or line that connects to the top of the check valve. The outside diameter of the tube or line IS the "compression" or "tube" size. Compression / tube size thread diameters will not correlate to standard measurement.
BulletPoint8 : 6 month no hassle warranty
Color : Brass
Department : Unisex Adult
ExteriorFinish : Rubber,Silicone
ExteriorFinish1 : Nickel
ExteriorFinish2 : Brass
ExternallyAssignedProductIdentifier : 7596317703152
ExternallyAssignedProductIdentifier1 : 0754412334603
ExternallyAssignedProductIdentifier2 : 754412334603
IncludedComponents : valve and ferrule
ItemDisplayDimensions_Length : 1 inches
ItemDisplayWeight : 1 pounds

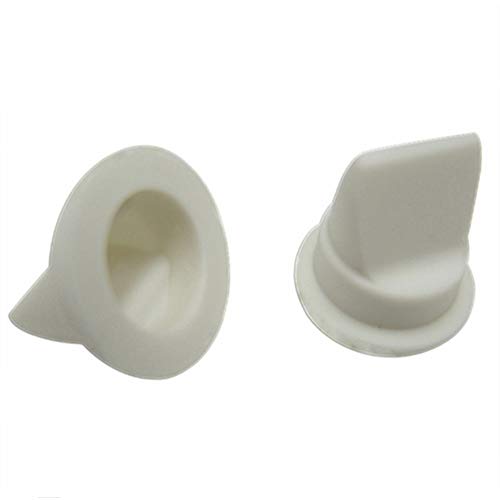

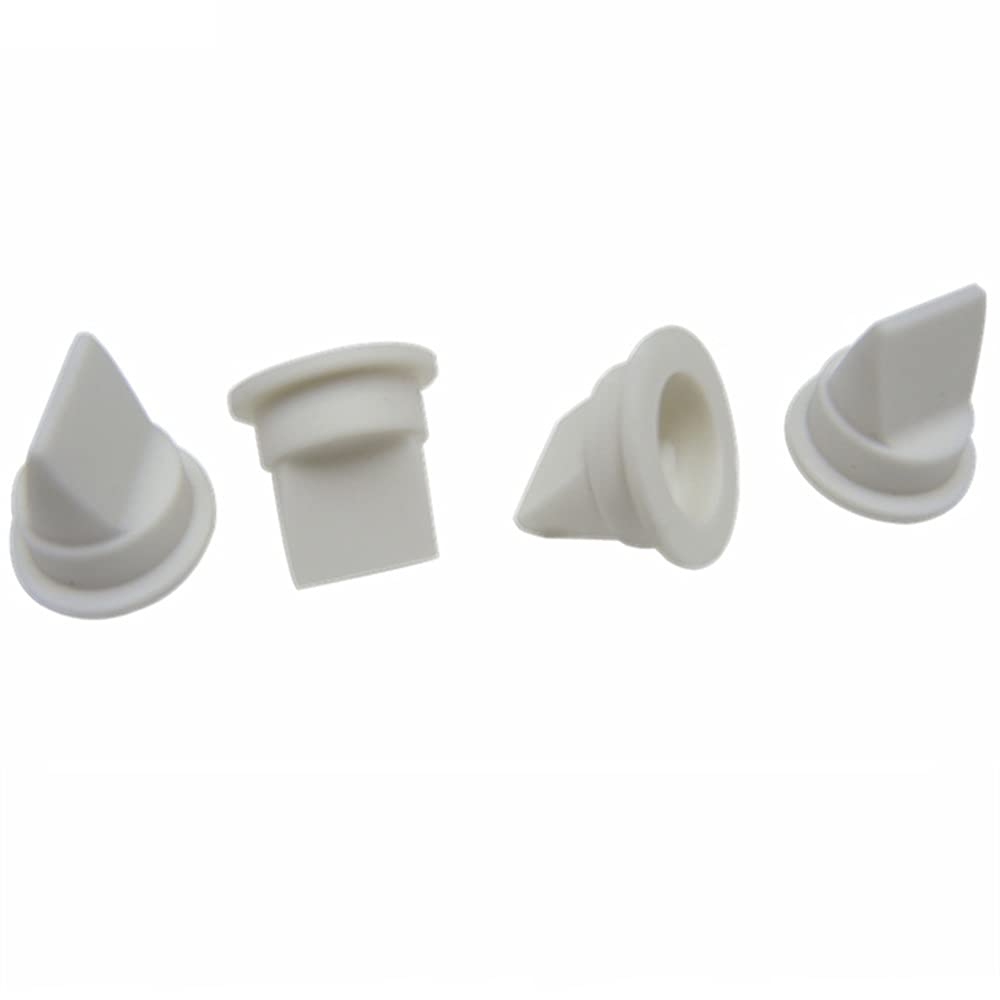

ItemName : 10 Pieces White Silicone Duckbill Valve One-Way Check Valve 15 x 9.2 x 12.8MM for Liquid and Gas Backflow Prevent
ItemPackageDimensions_Height : 2 inches
ItemPackageDimensions_Length : 4 inches
ItemPackageDimensions_Width : 2 inches
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-check-valves
Manufacturer : UP100
Material : Brass
Material1 : Rubber
Material2 : Silicone
MaximumOperatingPressure : 500 pounds_per_square_inch
ModelName : 00CTD581200
ModelNumber : 11010045
NumberOfItems : 10
NumberOfPorts : 10
PartNumber : 11010045
ProductDescription : Duckbill valve works

Duck bill valve is also known as a rubber check valve a back pressure flexible check valve a duckbill valve check valve a rubber check valve and a rubber slow closing check valve.
Duckbill valve material can use food grade silicone or rubber material In the absence of internal pressure the duck bill outlet closes under its own elasticity as the internal pressure gradually increases the duck bill outlet gradually increases keeping the liquid drained at high flow rates.
The valve opens when the appropriate pressure fluid gas passes through the valve.
When the flow rate or pressure increases the opening degree of the duckbill valve also increases
When the water flow stops the backwater pressure or atmospheric pressure will press the duckbill valve tightly to prevent backflow of liquid or gas
The pressure required to open the duckbill valve is very small
The pressure of the small duckbill valve produced is generally 1-5KPA Due to the convenient opening and closing of the duckbill valve and good sealing
it can effectively prevent the backflow of liquid and gas and meet the application requirements in many fields
For example machinery, and equipment daily necessities electronic, equipment irrigation, animal husbandry etc.

ProductSiteLaunchDate : 2019-06-28T07:00:00.000Z
Size : One Size
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 10
UnspscCode : 40141600
ValveType : Diaphragm Valve
