Brand : SHOUMANUAL
BulletPoint1 : 1100W pure copper motor, max safe operating pressure 7111.67psi, flow rate up to 79.37lbs/h.
BulletPoint2 : Function: Plugging grouting, consolidation grouting, crack reinforcement grouting
BulletPoint3 : Barrel Capacity: 5L/1.32gal. Pressure Range: 0-10000psi/0-700kg/cm². Switch Valve Safety Pressure Range:＜500kg/cm²/7111.6psi
BulletPoint4 : Can be applied to the repair of concrete cracks and waterproofing in places such as subways, airports, pipeline engineering, tunnel engineering, water conservancy engineering, residential buildings, bathrooms, bathrooms, kitchens, windowsills, balconies, bridges, elevated structures, highways, basements, rooftops, garages, etc.
BulletPoint5 : Please use professional matching grouting materials, such as water-soluble polyurethane rubber plugs, oil-soluble polyurethane rubber plugs, epoxy resin, acrylic ester, and other low-viscosity liquid materials (not included).
Color : White
ExternallyAssignedProductIdentifier : 7593720434598
ExternallyAssignedProductIdentifier1 : 0756804328115
ExternallyAssignedProductIdentifier2 : 756804328115
GpsrSafetyAttestation : 1
IncludedComponents : Grouting Machine

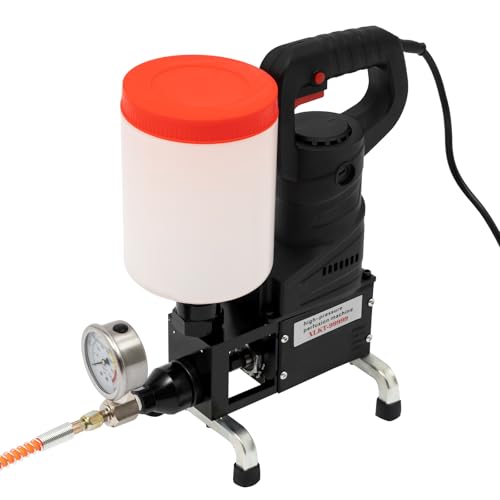

ItemName : High Pressure Grouting Machine, 1100W Electric Grout Gun Grouting Injection Pump Leak Stoppage Machine for Concrete Repair Waterproofing Crack Repair, 79.37lbs/h 110V
ItemPackageDimensions_Height : 0.04 inches
ItemPackageDimensions_Length : 4.13 inches
ItemPackageDimensions_Width : 2.17 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hand-caulking-guns
Manufacturer : JNLASEER
Material : Plastic
ModelName : Grouting Machine
ModelNumber : JZWB7A-000100US-SHML
NumberOfBoxes : 1
NumberOfItems : 10
PartNumber : NUOYAQI
PowerSourceType : ac
ProductDescription :

How to Install

1.Clean surface, locate leakage point.

2.Drill a hole along 0.79-3.15" area on both sides of leak point crack with 0.57" drill bit (not included).

3.After placing water stop needle, use T-shaped wrench to tighten it, embedding 1.57-2.36", embedding a needle every 1.97-7.87".

4.Add grouting material under power outage.

5.Before filling, open gun head valve first

6.Use gun head to inject grout into borehole until it overflows.

7.After at least 48 hours, needle and excess grouting material can be removed.

Specification

Model: XLKT-9999

Material: ABS, Alloy Steel, Rubber

Process: Injection Molding

Color: Black

Mount Type: Floor Mounted

Assembly Required: No

Motor Type: Brushed Pure Copper Motor

Barrel Capacity: 5L/1.32gal

Plug Type: US Standard

Power Supply: Corded Electric

Voltage: 110V

Power: 1100W

Pressure Range: 0-10000psi/0-700kg/cm²

High-Pressure Pipe Safety Pressure: 0-500kg/cm²/7111.6psi

Switch Valve Safety Pressure Range:＜500kg/cm²/7111.6psi

Flow Rate: 36 kg/79.37lbs/h

Power Cord Length: Approx. 3m/9.84ft

High-Pressure Pipe Length: 4.8m/15.75ft

Package Size: 45*40*20cm/17.7*15.7*7.8in

Gross Weight: 10kg/22lbs

Net Weight: 8kg/17.64lbs

Package Included

1 X Grouting Machine

1 X Grouting Gun

1 X High Pressure Pipe

1 X T-Shaped Wrench

1 Pair X Gloves

1 Pair X Goggles

2 X Carbon Brushes

Other Accessories for Assembly

Notes

1.When assembling high-pressure pipe and connecting rod, please wrap it with sealing tape.

2.Please occasionally loosen switch when using, do not keep pressing switch.
