Product Information
Editorial Review

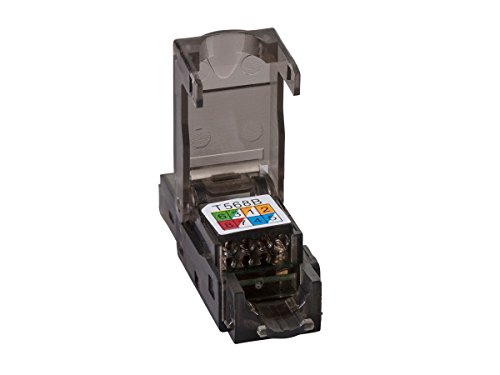

Entegrade Series Cat6 RJ-45 Field Connection Modular Plug, Unshielded for 23/24AWG Installation Cable, 10 pack Cat6a Class Ea RJ45 Field Assembly Plug STP & FTP Easy Assembly " terminate in field in minutes without special tools Wire Connection: Stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mmWire Connection: Solid wire AWG 26/1 to 22/1, wire diameter from 0.4 to 0.76 mm Transmission Characteristics: Cat6a per 1S0/IEC 11801 Ed.2.2:2011-06 Complies with class Ea to ISO/EIC 11801 Ed.2.2.2011-06, DIN EN 50173-1:2011-09 10 Gbit IEEE 802.3an Supports Power over Ethernet (PoE, PoE plus, and UPoE) Compatible with Cable Jacket Diameters from 6 to 9.5 mm Adjustable Strain Relief (6mm to 9.5mm Cable outside diameter) Load Bar for Faster and Easier Wire Pattern Termination Operating temperature: -40 ~ +60°C Relative humidity: 85% (30°C), Air pressure: 70-106Kpa Gold Plated Bronze Blade: bronze and gold plating (3-50 µinch}, mating durability not less than 750 cycles Made from Kirsite PC or PCB(UL94VO) Intermediate resistance: no more than 20 megohm in normal atmospheric pressure (not including bulk resistor) Insulated resistance: no less than 1,000 megohm in normal atmospheric pressure 1,000 VDC (700 VAC) Retention strength: 7.7kg between jack and plug
Features
1) CAT6 ClassEaRJ45Field Assembly Plug, Unshielded
2) Easy Assembly - terminate in field in minutes without special tools. Load Bar for Faster and Easier Wire Pattern Termination
3) Supports Power over Ethernet (PoE, PoE plus, and UPoE)
4) Wire Connection: Stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm or Solid wire AWG 26/1 to 22/1, wire diameter from 0.4 to 0. 76 mm
5) Complies with class Ea to ISO/EIC 11801 Ed.2.2.2011-06, DIN EN 50173-1:2011-09 10 Gbit IEEE 802.3an
Specification
Binding : Electronics
Brand : Monoprice
Color : Black
EAN : 0889028059050
Label : Monoprice
Manufacturer : Monoprice
Model : 124759
PackageDimensions_Weight : 0.25 pounds
PackageDimensions : L:8.70 X W:5.87 X H:1.69
ProductGroup : CE
ProductTypeName : CONSUMER_ELECTRONICS
Publisher : Monoprice
Studio : Monoprice
Title : Monoprice Entegrade Series Cat6 RJ-45 Field Connection Modular Plug, Unshielded for 23/24AWG Installation Cable, 10 pack
Entegrade Series Cat6 RJ-45 Field Connection Modular Plug, Unshielded for 23/24AWG Installation Cable, 10 pack Cat6a Class Ea RJ45 Field Assembly Plug STP & FTP Easy Assembly " terminate in field in minutes without special tools Wire Connection: Stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mmWire Connection: Solid wire AWG 26/1 to 22/1, wire diameter from 0.4 to 0.76 mm Transmission Characteristics: Cat6a per 1S0/IEC 11801 Ed.2.2:2011-06 Complies with class Ea to ISO/EIC 11801 Ed.2.2.2011-06, DIN EN 50173-1:2011-09 10 Gbit IEEE 802.3an Supports Power over Ethernet (PoE, PoE plus, and UPoE) Compatible with Cable Jacket Diameters from 6 to 9.5 mm Adjustable Strain Relief (6mm to 9.5mm Cable outside diameter) Load Bar for Faster and Easier Wire Pattern Termination Operating temperature: -40 ~ +60°C Relative humidity: 85% (30°C), Air pressure: 70-106Kpa Gold Plated Bronze Blade: bronze and gold plating (3-50 µinch}, mating durability not less than 750 cycles Made from Kirsite PC or PCB(UL94VO) Intermediate resistance: no more than 20 megohm in normal atmospheric pressure (not including bulk resistor) Insulated resistance: no less than 1,000 megohm in normal atmospheric pressure 1,000 VDC (700 VAC) Retention strength: 7.7kg between jack and plug
Features
1) CAT6 ClassEaRJ45Field Assembly Plug, Unshielded
2) Easy Assembly - terminate in field in minutes without special tools. Load Bar for Faster and Easier Wire Pattern Termination
3) Supports Power over Ethernet (PoE, PoE plus, and UPoE)
4) Wire Connection: Stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm or Solid wire AWG 26/1 to 22/1, wire diameter from 0.4 to 0. 76 mm
5) Complies with class Ea to ISO/EIC 11801 Ed.2.2.2011-06, DIN EN 50173-1:2011-09 10 Gbit IEEE 802.3an
Specification
Binding : Electronics
Brand : Monoprice
Color : Black
EAN : 0889028059050
Label : Monoprice
Manufacturer : Monoprice
Model : 124759
PackageDimensions_Weight : 0.25 pounds
PackageDimensions : L:8.70 X W:5.87 X H:1.69
ProductGroup : CE
ProductTypeName : CONSUMER_ELECTRONICS
Publisher : Monoprice
Studio : Monoprice
Title : Monoprice Entegrade Series Cat6 RJ-45 Field Connection Modular Plug, Unshielded for 23/24AWG Installation Cable, 10 pack
