LINKOMM RJ45 Slim Profile Series of Keystone Jack LINKOMM Slim Profile Keystone Jack is 90 degree wire connection, and slim profile for high density cabling installation. It is commonly used onto 3-port and 6-port wall plates and 1U 48-Port patch panels. It can be mounted onto surface mount boxes, keystone wall plates, or patch panels. T568A and T568B wiring map are labeled and easy to read. The strong and fire-retardant plastic housing features guarantee the best quality. Material - Jack Housing: ABS+PC UL 94V-0 - Jack Contact Braket: PBT+Glass Fiber, UL 94V-0 - Jack Contact Matirial: Phosphor Bronze with Nickel Plated - Jack Contact Finish: 50 micro-inch Gold plated on Plug contact - IDC Housing: PC UL 94V-2 - IDC Terminal: Phosphor Bronze with Tin Plated - PCB: FR4, UL 94V-0 Performance - T568A & T568B wiring - Insertion Force: 20N max. (IEC 60603-7-4) - Retention Strength: 7.7kg between jack and plug - Operation Temperature -10,,f to 60,,f (ISC/IEC 11801, ANSI/TIA 568 C.2) - Jack Mating Cycles: 750 cycles min. (ISO/IEC 11801, IEC 60603-7-4) - IDC: Suitable for 23-26AWG stranded and solid wire, compatible with 110 punch down tool - Transmission performance is in compliance with ANSI/TIA 568 C.2 standard
Features
1) 90 degree punch-down termination snap-in keystone jack including a free Punch Down Termination Palm Holder
2) Slim profile design best for 3, 6-port high density wall-plates and patch panels
3) IDC suitable for 23 to 26 AWG solid and stranded wires
4) Nickel and gold plated plug contacts for the best data transmission
5) Pointed termination IDC for fast and easy separating color coded wires
Specification
Brand : LINKOMM
Color : White
Label : LINKOMM
Manufacturer : LINKOMM
PackageDimensions_Weight : 0.66 pounds
PackageDimensions : L:10.00 X W:7.00 X H:1.20
ProductGroup : Home Improvement
ProductTypeName : BUILDING_MATERIAL
Publisher : LINKOMM
Size : 25 Pack
Studio : LINKOMM

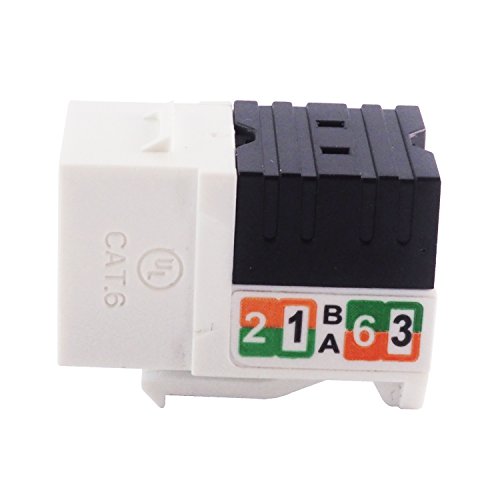

Title : LINKOMM (25 Pack) RJ45 Cat6 Slim Profile Keystone Jack, White, with Punch Down Termination Palm holder
