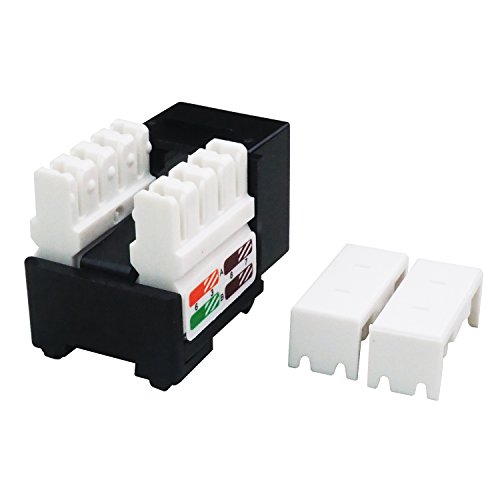

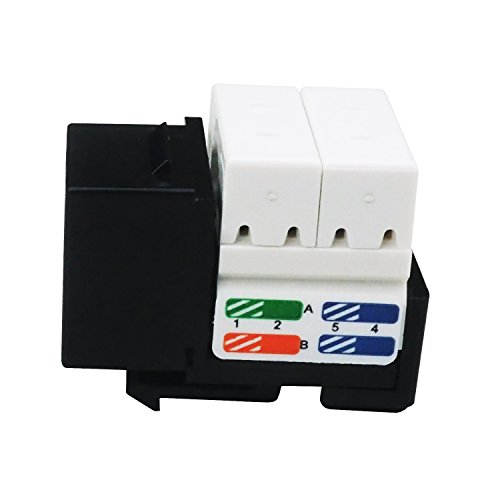

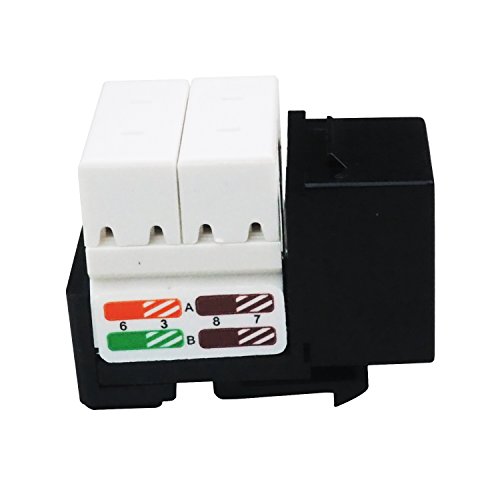

LINKOMM RJ45 Cat. 5e Keystone JackLINKOMM Keystone Jack is 90 degree wire connection. It can be mounted onto surface mount boxes, keystone wall plates, or patch panels. T568A and T568B wiring map are labeled and easy to read. The strong and fire-retardant plastic housing features guarantee the best quality. Material- Housing: ABS+PC, UL 94V-0- Contact Bracket: PBT+Glass Fiber, UL94V-0- Jack Contact: Phosphor Bronze with Nickel Plated- Contact Finished: 50 micro-inch Gold plated on Plug contact area- IDC Housing: PC+Glass Fiber, UL 94V-2- IDC Terminal: Phosphor Bronze with Tin plated- IDC CAP: ABS, UL94-HB- IDC Bracket: ABS, UL 94V-0- PCB: FR4, UL94V-0Performance- T568A&T568B wiring sticker- Insertion force: 20N max. (IEC 60603-7-4)- Retention strength: 7.7kg between Jack and Plug- Operating temperature: -10,,f to 60,,f. (ISO/IEC 11801, ANSI/TIA/EIA 568 C.2)- Life cycle: 750 cycles min.- IDC suitable for 22-26AWG stranded or solid wire, compatible with both 110&Krone punchdown tools- The Cat.5e transmission performance is in compliance with ANSI/TIA/EIA 568 C.2 standard
Features
1) Cat5e RJ45 90 degree punch-down termination snap-in unshielded keystone jack fits patch panels, wall plates, or surface mount boxes
2) IDC support KRONE and 110 punch-down tool
3) Nickel and gold plated plug contacts for the best data transmission
4) IDC suitable for 22 to 26 AWG solid and stranded wires
5) Comply with TIA/EIA 568 C.2 and UL requirements
Specification
Brand : LINKOMM
Color : Black
Label : LINKOMM
Manufacturer : LINKOMM
PackageDimensions_Weight : 1.00 pounds
PackageDimensions : L:9.00 X W:9.00 X H:2.70
ProductGroup : Home Improvement
ProductTypeName : BUILDING_MATERIAL
Publisher : LINKOMM
Size : 50 Pack
Studio : LINKOMM
Title : LINKOMM (50 Pack) RJ45 Cat5e Keystone Jack, Black, with Punch Down Termination Palm Holder
LINKOMM RJ45 Cat. 5e Keystone JackLINKOMM Keystone Jack is 90 degree wire connection. It can be mounted onto surface mount boxes, keystone wall plates, or patch panels. T568A and T568B wiring map are labeled and easy to read. The strong and fire-retardant plastic housing features guarantee the best quality. Material- Housing: ABS+PC, UL 94V-0- Contact Bracket: PBT+Glass Fiber, UL94V-0- Jack Contact: Phosphor Bronze with Nickel Plated- Contact Finished: 50 micro-inch Gold plated on Plug contact area- IDC Housing: PC+Glass Fiber, UL 94V-2- IDC Terminal: Phosphor Bronze with Tin plated- IDC CAP: ABS, UL94-HB- IDC Bracket: ABS, UL 94V-0- PCB: FR4, UL94V-0Performance- T568A&T568B wiring sticker- Insertion force: 20N max. (IEC 60603-7-4)- Retention strength: 7.7kg between Jack and Plug- Operating temperature: -10,,f to 60,,f. (ISO/IEC 11801, ANSI/TIA/EIA 568 C.2)- Life cycle: 750 cycles min.- IDC suitable for 22-26AWG stranded or solid wire, compatible with both 110&Krone punchdown tools- The Cat.5e transmission performance is in compliance with ANSI/TIA/EIA 568 C.2 standard
Features
1) Cat5e RJ45 90 degree punch-down termination snap-in unshielded keystone jack fits patch panels, wall plates, or surface mount boxes
2) IDC support KRONE and 110 punch-down tool
3) Nickel and gold plated plug contacts for the best data transmission
4) IDC suitable for 22 to 26 AWG solid and stranded wires
5) Comply with TIA/EIA 568 C.2 and UL requirements
Specification
Brand : LINKOMM
Color : Black
Label : LINKOMM
Manufacturer : LINKOMM
PackageDimensions_Weight : 1.00 pounds
PackageDimensions : L:9.00 X W:9.00 X H:2.70
ProductGroup : Home Improvement
ProductTypeName : BUILDING_MATERIAL
Publisher : LINKOMM
Size : 50 Pack
Studio : LINKOMM
Title : LINKOMM (50 Pack) RJ45 Cat5e Keystone Jack, Black, with Punch Down Termination Palm Holder
