Specification
Brand : Generic
BulletPoint1 : When a capacitive load is detected (for example, a person touches one of the conductive contacts), the corresponding LED lights up and the output pin goes low.
BulletPoint2 : Comes with a fully assembled circuit board and a 0.1 inch head support bar, so you can connect it to the breadboard.
BulletPoint3 : There is no need for a microcontroller here, just turn on 1.8‑5.5V DC and connect up to 5 conductive pads to the 5 pins on the left.
BulletPoint4 : Using AT42QT1070 chip, it can only be used in standard mode, but not in I2C mode.
BulletPoint5 : This module board is the easiest way to create a project with multiple capacitive touch sensors.
IncludedComponents : No

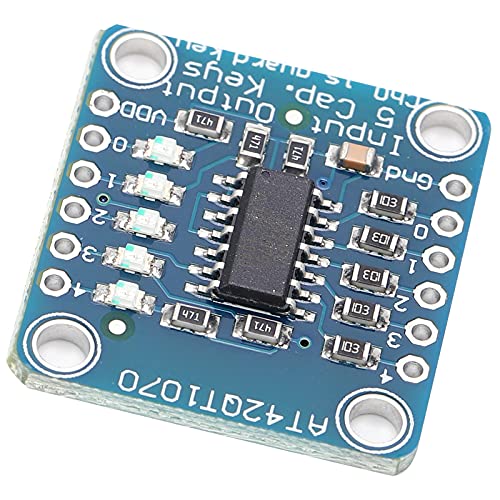

ItemName : Generic AT42QT1070 5-Pad Module, Capacitive Touch Sensor Module Sensor Module with Pin Header Capacitive Screen Module Board for Sensor Module, Genericrxd7m0yfn1
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 8 centimeters
ItemPackageDimensions_Width : 5 centimeters
ItemTypeKeyword : capacitive-proximity-sensors
Manufacturer : Generic
ModelNumber : Genericrxd7m0yfn1
NumberOfItems : 1
PartNumber : Genericrxd7m0yfn1
ProductDescription : 1. This module board is the easiest way to create a project with multiple capacitive touch sensors.
2. There is no need for a microcontroller here, just turn on 1.8‑5.5V DC and connect up to 5 conductive pads to the 5 pins on the left.
3. When a capacitive load is detected (for example, a person touches one of the conductive contacts), the corresponding LED lights up and the output pin goes low.
4. Comes with a fully assembled circuit board and a 0.1 inch head support bar, so you can connect it to the breadboard.
5. Using AT42QT1070 chip, it can only be used in standard mode, but not in I2C mode.

Specification:
Item Type: Sensor Module
Color: Blue

How to Use:
This board is the easiest way to create a project with multiple capacitive touch sensors.
There is no need for a microcontroller here‑just turn on 1.8 to 5.5 VDC and connect up to 5 conductive pads to the 5 pins on the left.
When a capacitive load is detected (for example, a person touches one of the conductive contacts), the corresponding LED lights up and the output pin goes low. You can use it to update an existing normal button item, and the button will connect to the ground when you press this button.
Please note that only one can be detected at a time (this is to prevent two or more contacts from appearing at the same time.
Comes with a fully assembled circuit board and a 0.1in head support bar, so you can connect it to the breadboard. For the contacts, we recommend using copper foil and then soldering the wires from the foil pad to the fracture.
There are many detailed information about sensitivity, power consumption, etc. in the data sheet.
Please note that the board only uses the chip in standard mode, and cannot be used in I2C mode.

PackageList:
1 x Module
2 x Pin Header
