Specification
Brand : lvifloae
BulletPoint1 : 【9in1 Multifunctional Measurement】: The 9in1 multifunction tester combines voltage, current, power, impedance, capacity, energy, temperature, runtime, and battery level measurement in a single compact unit, providing a comprehensive diagnostic tool for various electrical systems and components.
BulletPoint2 : 【Precise Data Calibration u0026 Customization】: Offering display fine-tuning for voltage and current, as well as programmable full and low battery voltage thresholds, the tester enables users to tailor measurements to their specific system requirements, ensuring optimal accuracy and relevance of displayed data.

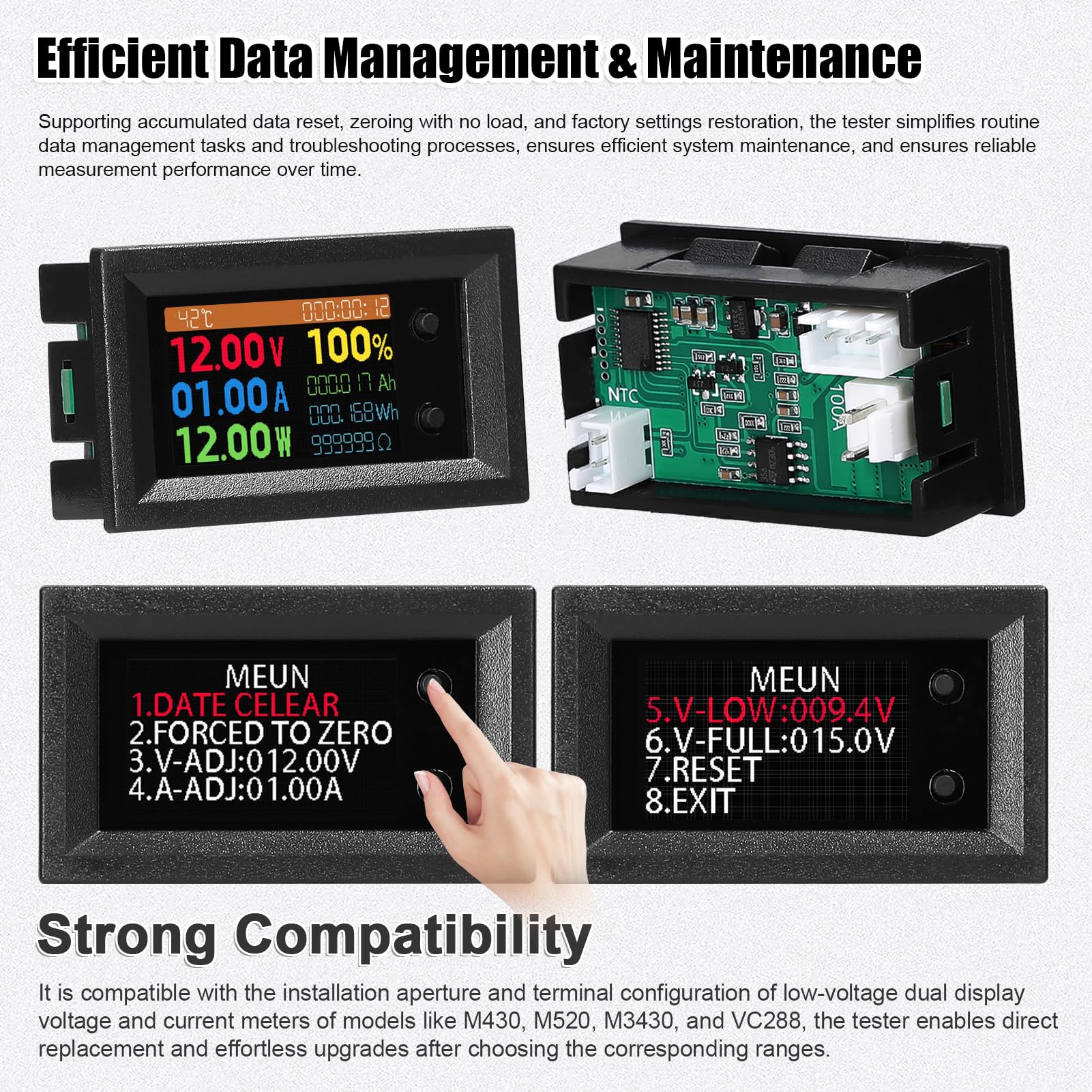

BulletPoint3 : 【Efficient Data Management u0026 Maintenance】: Supporting accumulated data reset, zeroing with no load, and factory settings restoration, the tester simplifies routine data management tasks and troubleshooting processes, ensures efficient system maintenance, and ensures measurement performance over time.
BulletPoint4 : 【Strong Compatibility】: It is compatible with the installation aperture and terminal configuration of low-voltage display voltage and current meters of like M430, M520, M3430, and VC288, the tester enables direct replacement and effortless upgrades after choosing the corresponding ranges.
BulletPoint5 : 【Energy-Efficient u0026 Lightweight Design】: The delivery is inclusive of wires and sensor, the DC430 combines energy efficiency with a compact, lightweight form factor, making it for space-constrained installations and portable applications.
Color : Multicolor
ExternallyAssignedProductIdentifier : 7666540936471
IncludedComponents : No

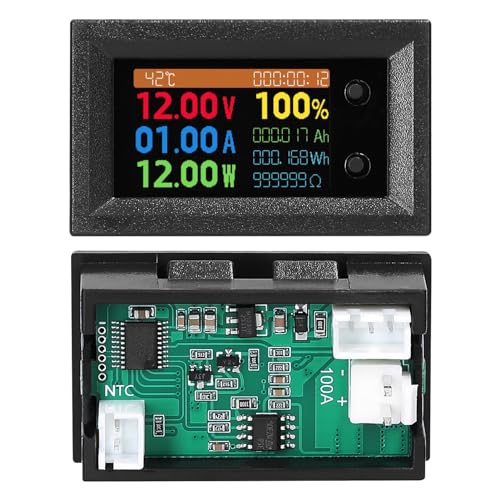

ItemName : lvifloae 9in1 Multifunction Tester 1.14-inch IPS Color Display Measuring Instrument with Voltage Current Power Impedance Capacity Energy Temperature Running Time Electricity (100A)
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemTypeKeyword : capacitance-meters
Manufacturer : lvifloae
MeasurementAccuracy : 0.1mm
ModelName : lvifloaed3euqbing2-00
ModelNumber : lvifloaed3euqbing2-00
NumberOfItems : 1
PartNumber : lvifloaed3euqbing2-00
ProductDescription : The 9in1 multifunction tester combines voltage, current, power, impedance, capacity, energy, temperature, runtime, and battery level measurement in a single compact unit, providing a comprehensive diagnostic tool for various electrical systems and components. It supports cumulative data clearing, no-load forced zeroing, display voltage fine-tuning, display current fine-tuning, low battery voltage setting, full battery voltage setting, restoring factory settings, etc., which is easy and convenient to operate. It simplifies routine data management tasks and troubleshooting processes, ensures efficient system maintenance, and ensures measurement performance over time.

Features:

Note:
The 10A version is on board with low-temperature drift alloy shunt, can be directly connected.
The 100A version needs to be connected in parallel with 50A 75mV shunt for normal use. Without the shunt, the current cannot be measured, the shunt needs to be prepared by oneself.
The 100A version needs to be connected in parallel with a 100A 75mV shunt for normal use. Without the shunt, the current cannot be measured, the shunt needs to be prepared by oneself.

Specifications:
Name: 9in1 Multifunction Tester
Material: plastics
Type: 10A Version, 50A Version, 100A Version (optional)
Working voltage: 4-30VDC
Voltage measurement ranges: 0-100VDC, Error ± 1.00V, 0.1V Jump
Current measurement ranges:
10A Version: 0.00A-10.00A, Error ± 0.1A, 0.03A Jump
50A Version: 0.00A-50.00A, Error ± 0.5A, 0.03A Jump
100A Version: 0.00A-100.0A, Error ± 1A, 0.03A Jump
Power measurement ranges:
10A Version: 00.00-1000W
50A Version: 00.00-5000W
100A Version: 00.00-9999W
Impedance display ranges: 0-99999 Ω (non internal )
Capacity measurement ranges: 0-999.999Ah
Energy metering ranges: 0-999.999Wh
Temperature sensor: cylindrical probe 10K 3950 1% sensor with a total length of approximately 1
ProductSiteLaunchDate : 2025-01-10T11:01:44.025Z
Size : 100A
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 41113600
WarrantyDescription : Universal
