Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : WnewTools
BulletPoint : Acrylic Shell Case For Inductor Capacitor Meter MG328 M328 Multifunction Transistor Tester
BulletPoint1 : 1. Two key operation, automatic shutdown.
BulletPoint2 : 2. A key operation, boot test, a key to get.
BulletPoint3 : 3. Automatically test the pin element and display them on the LCD.
BulletPoint4 : 4.1602 LCD screen with LCD (12864 LCD backlight).
BulletPoint5 : 5. Test speed, active ingredient test: 2 seconds (in addition to the larger capacitor capacitance measurement also takes a long time, the measurement time is one minute is normal).
Color : Black
ExternallyAssignedProductIdentifier : 7650230886603
ExternallyAssignedProductIdentifier1 : 0769902893645
ExternallyAssignedProductIdentifier2 : 769902893645
IncludedComponents : inc
ItemName : ESR02PRO Digital Transistor SMD Components Tester Diode Triode Capacitance Inductance Meter
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : capacitance-meters
Manufacturer : Wnew
Material : Material
MeasurementAccuracy : +/-0.5%
MeasurementType : Multimeter
ModelName : ESR02PRO Digital Transistor Tester (Battery is not included)
ModelNumber : CHU1218985
MountingType : Surface Mount
NumberOfItems : 1
PackageLevel : unit
PartNumber : CHU1218985
PowerSourceType : Powersource
ProductDescription :

Specification:

Resistance: 0Ω-50MΩ

Resolution: 0.01Ω

Capacitance: 25pf-100mf

Resolution: 1pf

Inductance: 0.01mH-20H

Resolution: 0.01mH

Measurement capacitance ESR Resolution: 0.01Ω

Battery: 9V battery (Not included)

Instructions:

1. Press the ""boot / test"" can be achieved boot and a test function, multiple tests can be repeated by this key; measured after 20 seconds, no operation automatically shut down.

2. The instrument provides patch, plug-in and external table three measurement methods, each way 1,2,3 feet are the same correspondence.

3. The device does not need to distinguish between the order of discipline, the measurement will be completed after the completion of each pin corresponding to the device function.

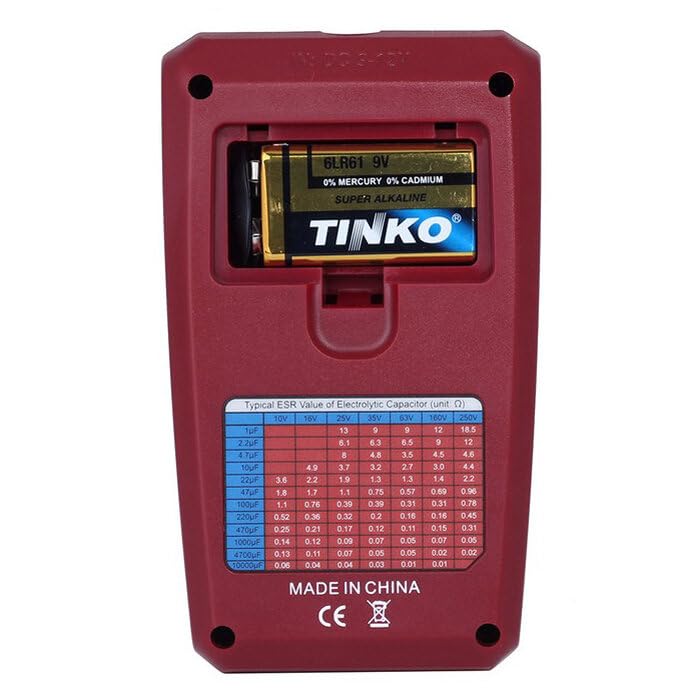

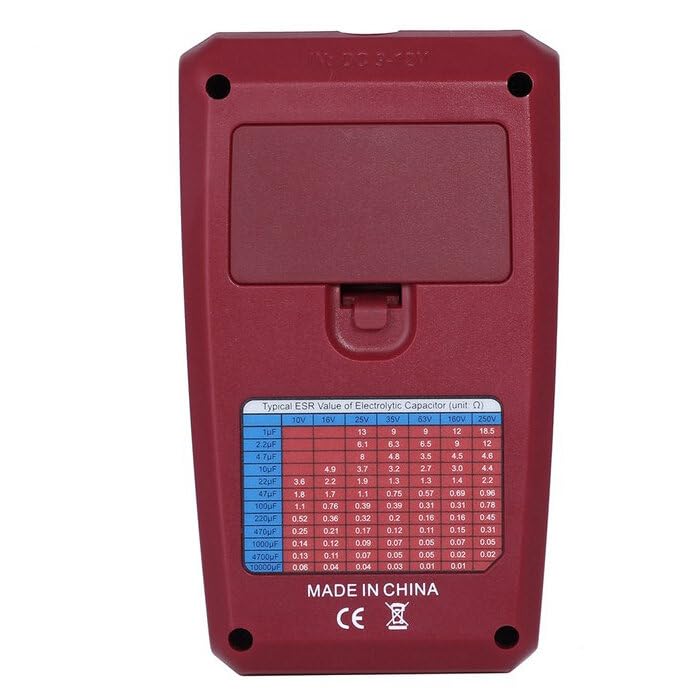

4. The instrument printed on the back of the electrolytic capacitor corresponding to the ESR typical reference table, the table is for reference only, please refer to the data published by the manufacturers.

Short to 1, 2, 3 test points, press the ""boot / test"" button, the screen prompts whether to enter the calibration, in 2 seconds by ""power on / test"" button to confirm, enter the calibration.

After the screen prompts to disconnect 1, 2, 3 test points, continue after the break until the end of the prompt calibration.

Precautions:

Be sure to discharge the instrument before testing the capacitor, otherwise it may damage the instrument.

When using the adapter, use an adapter with a DC 9V-12V (including 9V, 12V) voltage range.

The instrument will not charge the battery, when the battery power is less than 6V, please replace the battery.

When the capacitor is discharged, it can be discharged without power on.

Packing Included:

1 x ESR02PRO Digital Transistor Tester (Battery is not included)

1 x English User Manual

ProductSiteLaunchDate : 2023-06-22T15:52:37.852Z
Style : Handheld
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 27110000
