Specification
Brand : GXMRHWY
BulletPoint1 : N,Male,Straight,Standard,4 Hole Flange
BulletPoint2 : Great performance with DC to 11GHz Frequency and50ohm impedance;
BulletPoint3 : Threaded coupling mechanism ensure durability and stability for vibration application;
BulletPoint4 : Medium size used in military, industry or consumption electronic area, etc;
BulletPoint5 : High Quality with 30 days 100% Money back;

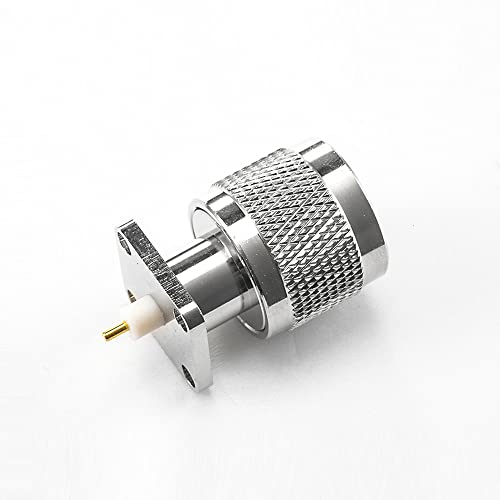

ItemName : GXMRHWY Solder Type N Connector Welding Plate 4 Hole Flange Straight Male for PCB Mount
ItemPackageQuantity : 1
ItemTypeKeyword : welding-cable
Manufacturer : GXMRHWY
ProductDescription : Aerospace and Defense
: Radar Equipment
Technology
: Ablation equipment
Commercial Vehicle
: Bluetooth and GPS
Telecommunications
: Antennas, Base Stations, Passive/Active Base Station Components, Telecommunication hardware
Data/Communications
: Broadcast Electronics, Wifi
Industrial
: Machine to Machine Communications
Technical Parameters:
Techinial Datasheet:
Electrical Characteristics
Impedance：50ohm
Frequency Range: 0~13 Ghz
VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
Dielectric Withstanding Voltage: 2500 V rms
Working Voltage: 1000 V rms
Center Contact Resistance ≦ 1.0 mΩ (Milliohms max.)
Outer Contact Resistance ≦ 0.2 mΩ (Milliohms max.)
Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)
Mechanical Characteristics
Coupling: 5/8-24 thread
Contact Retention: 6 lbs min.
Coupling nut torque: 30 in-lbs. min.
Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
Temprature Range: -65°C ~ +125°C ( PE Cable-40°C ~ +85°C )
Vibration: MIL-STD-202 Method204
Corrosion resistance: MIL-STD-202 Method 101
Material:
Part
Material
Finish
Body
Brass
Nickel Plating
Chain
Brass
Nickel Plating
