Description:

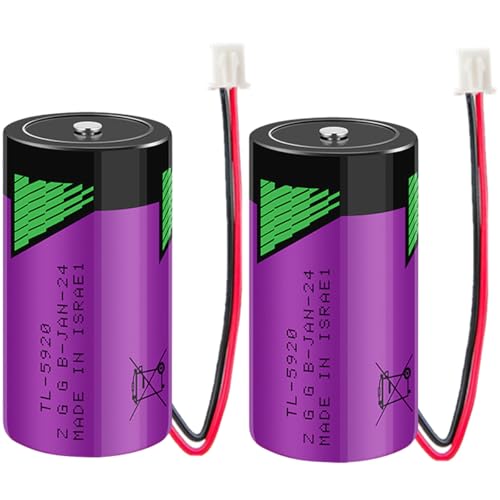

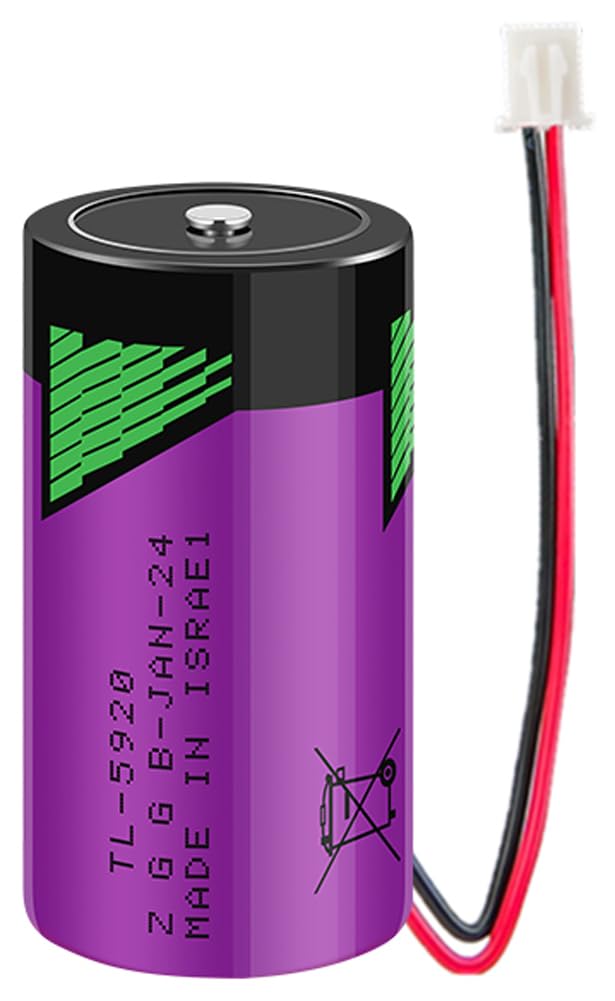

Model Name: TL-5920
Voltage: 3.6V
Capacity: 8500 mAh
Size: C
Chemistry: Lithium Thionyl Chloride (Li-SOCI2)
Termination Style: Button Top
Shelf Life: 10+ Years
Maximum Recomended Continuous Current: 230 mA
Maximum Pulse Current Capability: 400 mA
Size: 50*26*26mm
Weight: 49.5g
Advantage:
1. High operating voltage, stable during most of the application lifetime
2. Some of the highest nominal capacities on the market today
3. Low self-discharge rate (less than 1% after 1 year of storage at +20°C)
4. Excellent resistance to humid environments
5. Low magnetic signature
6. Non-flammable (and non-pressurized at ambient temperature) inorganic (but corrosive) electrolyte Less than 1% capacity loss during storage at ambient temperature before use
7. Excellent reliability over extended operating life
8. Operating Temperature Range: -60°C/+85°C (-76°F/+185°F)
Warning:
1.This battery is not rechargeable. Do not try to recharge.
2.The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
3.Don't use different models of battery in series.
4.Soldering the tab should be finished in few seconds.
5.Do not use if the battery casing was mangled.
Compatible With:
ER26500 LS26500 LS26500C TL-4920 TL-2200 SB-C01 SB-C02 SL- 770 XL-140F XL-145F PT-2200
Package Included:
2 x TL-5920 Battery
