Specification
Brand : HangTon
BulletPoint1 : TY28 9-pin 10A waterproof free-solder screw crimp bulkhead electrical connector, easy for assembly cable
BulletPoint2 : Features Waterproof IP68, threaded coupling, quick disconnect. The contact pins of the connector are pure copper gold-plated, which has strong conductivity, corrosion resistance and oxidation resistance
BulletPoint3 : Rear panel mount female socket and cable plug with watertight cap
BulletPoint4 : Rated Voltage/Current AC 380V / 10A, Contact resistance 2mΩ, Insulation resistance 2000mΩ. Suitable wire outer diameter range 10-15mm, Wire gauge 1.5mm² or 14AWG, Contact Diameter Φ1.8mm
BulletPoint5 : Protected against solids and liquids, provide a secure and reliable power connection in the harsh environment
BulletPoint6 : Butted Seam
Color : Panel Mount
ConnectorType : Pin
ExternallyAssignedProductIdentifier : 7301540906900
ExternallyAssignedProductIdentifier1 : 601986125406
ExternallyAssignedProductIdentifier2 : 0601986125406
ExternallyAssignedProductIdentifier3 : 00601986125406
ExternallyAssignedProductIdentifier4 : 4901087176779
IncludedComponents : High Temp Butt Connector 12-10
IsOemAuthorized : 1

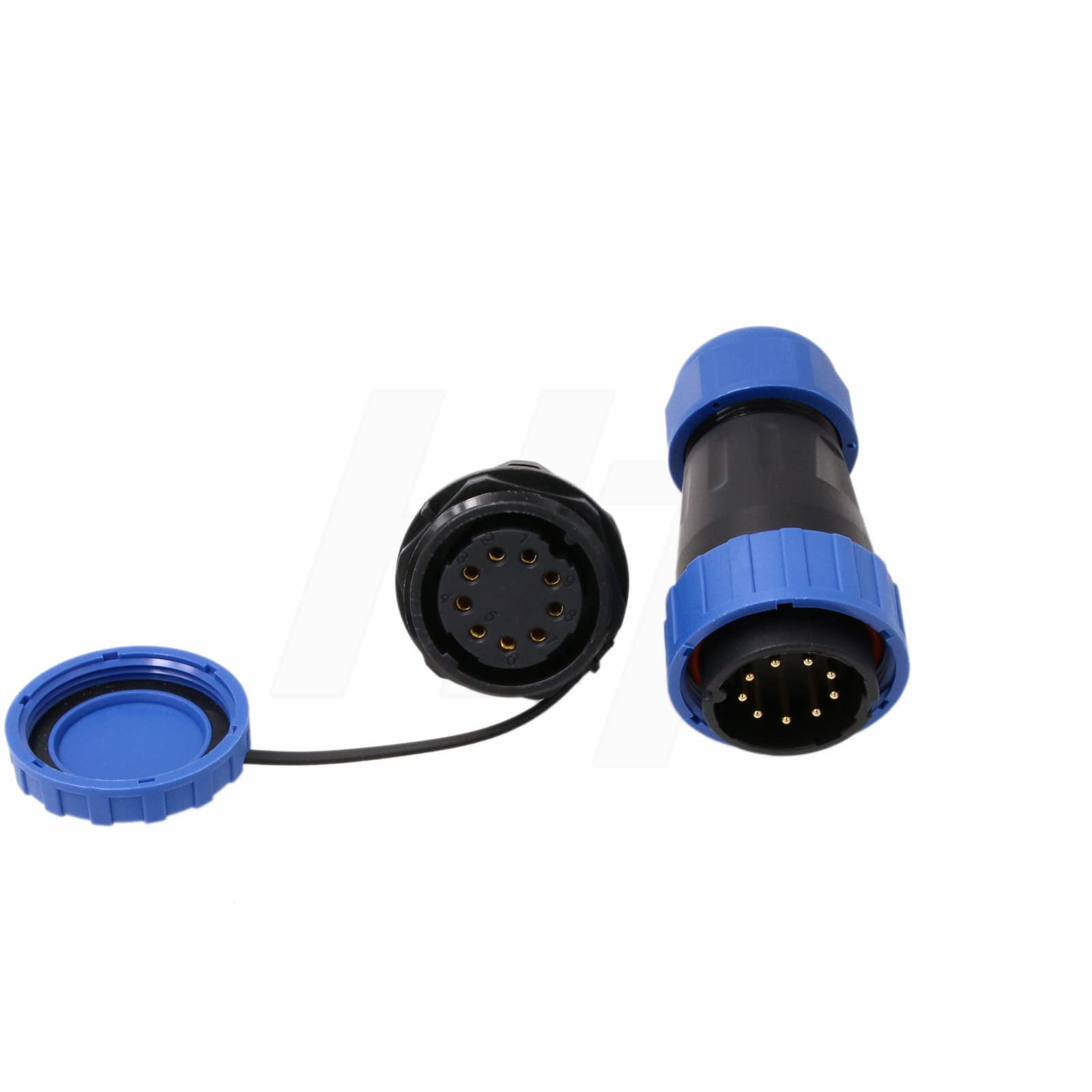

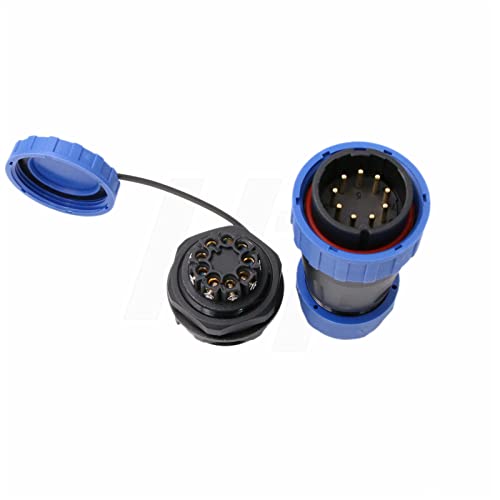

ItemName : HangTon TY28 9 Pin 10A Aviation Waterproof Screw Crimp Connector Male Female Quick-Disconnect for Outdoor Boat Marine Electrical Bulkhead Automotive DIY Power Device
ItemPackageDimensions_Height : 12.1 centimeters
ItemPackageDimensions_Length : 3.1 centimeters
ItemPackageDimensions_Width : 10.2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : butt-terminals
Manufacturer : HangTon Connect
Material : Copper
Material1 : For Aluminum and Copper Applications
Material2 : Metal
Material3 : High Dielectric Rubber
Material4 : Vinyl Coating
MaximumVoltage : 380 volts
MeasurementSystem : Metric
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
ModelNumber : TY28
NumberOfItems : 100
OperatingVoltage : 600 volts
PackageLevel : unit
PartNumber : 5pin cable
ProductDescription : Features:
The connector can provide a safe and reliable connection in the harsh environment .
TY28 series connector is ideal for watertight power equipment applications, outdoor electric tools or appliances, camper van truck power, communications, marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box.

Specifications:
TY28:
Model: 2 3 4 5 6 7 9 Pin
IP Rating: IP68
Panel Cutout Diameter: 28.5mm
Cable Outer Diameter Range:10-15mm
Coupling Type: Threaded Coupling
Shell material: Thermoplastic Nylon66, Fire Resistance: V-0
Insert Material: Thermoplastic PA66, max temperature 200℃
Contact Material: Pure copper plated gold
Wiring way: Free-Solder / Screw Crimp
Mating Cycle: >500 times
Temperature Range: -25~+85℃

Package Includes:
1 x Plug with male contact
1 x Socket with female contact
1 x Waterproof / Dustproof Cap

ProductSiteLaunchDate : 2018-06-20T07:00:00.000Z
Size : 9 Pin 10A
SpecificationMet : UL
SpecificationMet1 : RoHS
SpecificationMet2 : ISO 9001
SpecificationMet3 : SGS
StudSize1 : AWG26-24
StudSize2 : AWG22-18
StudSize3 : AWG16-14
StudSize4 : AWG12-10
Style : 100-Pack
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TemperatureRating : 257 degree celsius
TerminalType : Screw Terminal
UnitCount : 1
WebsiteShippingWeight : 0.01 kilograms
