Specification
AutomotiveFitType : universal_fit
Brand : ACNAO
BulletPoint1 : Time and Energy Saving: With it, you can lift heavy objects more easily, reducing the risk of manual labor, improving the safety of use, and enhancing efficiency.
BulletPoint2 : Strong Lifting Force: The mechanism boasts a lifting capacity of 6,6139 lbs, which enables it to lift heavy objects of large weight with ease. The impressive lifting force renders it a versatile and efficient option for fulfilling various lifting requirements.
BulletPoint3 : Thoughtful Design: It can be used in narrower and lower spaces and has a stroke of 2 inches to meet your usage needs. In addition, the 900cc oil storage capacity can be used for a long time, avoiding frequent additions.
BulletPoint4 : Simple Operation: You can tighten the return switch on the hydraulic pump clockwise, loosen the bleed nut, press the handle, and the jack automatically jacks up. After loosening the return switch, the jack automatically retracts. In addition, the direction of the use of the jack is not restricted and can be used horizontally, or upside down.
BulletPoint5 : Access to More Spaces: Compared to traditional large jacks, this one has a compact body (4.17*4.41 inches), which allows it to work not only in large places but also in narrow and tight spaces.
Color : Green
CompatibleWithVehicleType : Please see details
IncludedComponents : 1* Hydraulic Cylinder Jack 1* Hand Pump
IsAssemblyRequired : 1

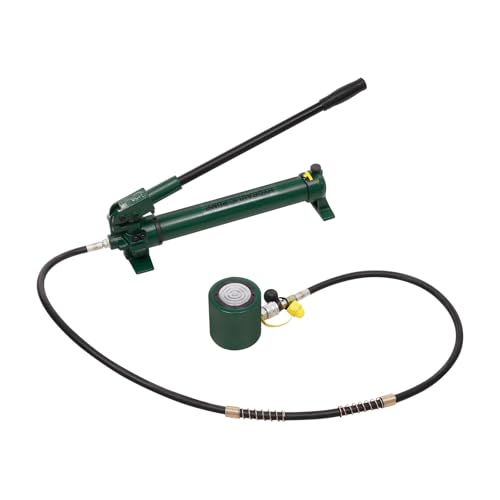

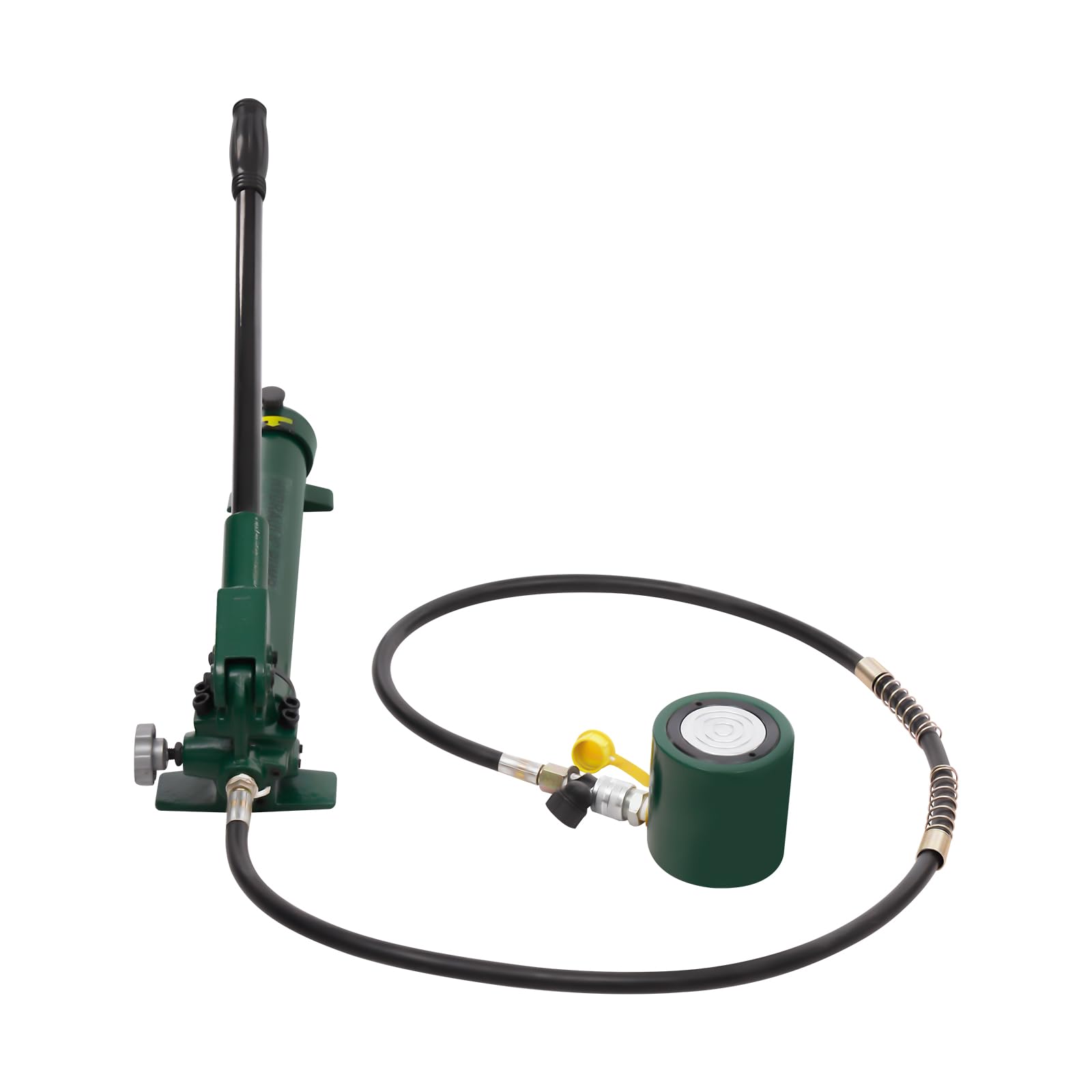

ItemName : 30T Hydraulic Ram Jack with CP-700 Hand Pump, Portable Hydraulic Jack Hydraulic Lifting Cylinders, 2in Stroke Hydraulic Cylinder Jack for Construction Sites, Bridges, Steel, and Other Industries
ItemTypeKeyword : bottle-jacks
LoadCapacity : 30 T
Manufacturer : ACNAO
Material : Alloy Steel
ModelName : Hydraulic Ram Jack
ModelNumber : 30T
NumberOfItems : 1
PartNumber : 30T Hydraulic Ram Jack
ProductDescription :

This hydraulic jack+hand pump allows you to lift heavy objects with ease.      Its excellent performance is complemented by convenient operation, which not only greatly improves work efficiency, but also demonstrates the charm of the ideal combination of mechanical aesthetics and practical functions.      It is an indispensable and ideal assistant in factories, construction sites, warehouses, docks, railroad or ship construction, and other places.

Details

Smooth Surface: The hydraulic cylinder features a smooth surface with circle textures, providing reliable support during working.

Ergonomic Handle: The handle on the hydraulic pump makes it comfortable to hold and is non-slip.

Application

It can be used for the installation and maintenance of large and medium-sized mechanical equipment in construction sites, petroleum, electric power, metallurgy, chemical industry, ships, bridges, steel, and other industries.      It can be used with punching machines, cutting machines, bending machines, cable cutter hydraulic pliers, and other machines.

Specification

Cylinder Model: RSC-3050

Hand Pump Model: CP-700

Color: Green

Shape: Cylinder

Material: Steel

Process: Plastic Spraying

Interface Size: 3/8''

Maximum Output Pressure: 700/10000KG/CM2

Output Pressure: High Pressure 700KG/CM2, Low Pressure 20KG/CM2

Oil Storage Capacity: 900CC

Length of Oil Pipe: 2m/6.56ft

Power: 30T/66139lbs

Stroke: 50mm/2in

Travel: 50min

Collapsed Height: 105mm/4.13in

Extended Height: 155mm/6.1in

Cylinder Jack Size(D*H): 10.6*11.2cm/4.17*4.41inch

Hand Pump Size: 50*15*15cm/19.69*5.91*5.91inch

Package Size: 65.5*20*19cm/25.79*7.87*7.48inch

Gross Weight: 17kg/37.48lbs

Net Weight: 15kg/33.07lbs

Package Included

1* Hydraulic Cylinder Jack

1* Hand Pump

Notes

1.     Please use the product on a flat surface, not on soft or rough ground, and do not apply unilateral force to the spindle.

2.     It is recommended to use No.15 hydraulic oil (not included).

3.     Before use, the interface between the jack and the pump should be installed firmly, otherwise it will leak oil.      A slight oil leak at the interface is normal.

4.     The first time you use it, you need to press the hydraulic pump a few more times to remove the air inside the jack.

5.     Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 24101600
WarrantyDescription : 60 Days
