Specification
AutomotiveFitType : universal_fit
Brand : Offabing
BulletPoint1 : IMPORTANT PARTS : The hydraulic pump consists of ZG 3/8 female connector, non-slip handle, hydraulic pump body, release valve and hose. Our hydraulic cylinder jack not only has a smooth surface, but also has good sealing and no oil leakage. At the same time, the non-slip handle makes the use more comfortable.
BulletPoint2 : PORTA POWER 30 TON : This hydraulic jack is only 4.1” high, but the stroke is up to 2” high. Compared with ordinary jacks, multi-section jacks can be used in a narrower and lower space, effectively increasing the stroke of the jack within the height of the body, so that the weight can be raised higher and more convenient to use.
BulletPoint3 : SMOOTH LACQUER SURFACE : The surface of hydraulic ram cylinder is painted with lacquer, which is not easy to rust. Made of heavy-duty metal construction, our hydraulic cylinder jack is durable and designed for long-lasting use. The dustproof sleeve of the jack can prevent the dust from entering and is dirt-resistant.
BulletPoint4 : COMPOSITE STRUCTURE & MULTI-FUNCTION : Equipped with various accessories, it has multiple functions such as lifting, jacking, shoveling and splitting, and can be quickly installed by using quick connectors. 30 ton or large cylinders are suitable for cp-700 pumps.
BulletPoint5 : WIDE RANGE OF APPLICATIONS : Our porta power ram and hydraulic hand pump are often used in power, chemical, steel, bridges, machinery and other industries. Suitable for vertical, horizontal and inverted directions, but cannot be tilted use. In order to operate correctly, all cylinders need to be connected to a solid flat lifting surface rather than soft or rough surface.
Color : Yellow
CompatibleWithVehicleType : Car
IncludedComponents : 1* Hydraulic Jack 1* Pump
IsAssemblyRequired : 1

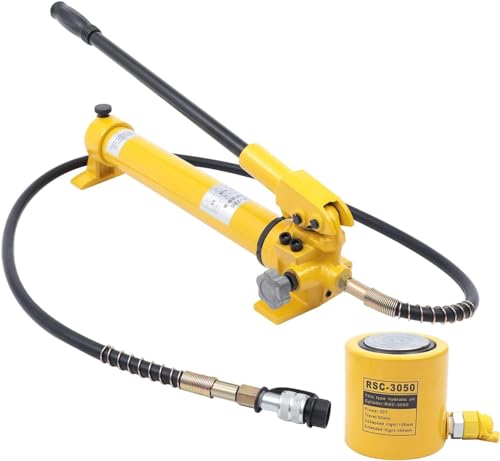

ItemName : 30T Hydraulic Jack Porta Power Ram Kit + CP-700 Manual Hydraulic Hand Pump Multi Section Jack, 2” Stroke Industrial Mini Hydraulic Cylinder (30T Hydraulic Jack + CP-700 Pump)
ItemPackageDimensions_Height : 66.548 centimeters
ItemPackageDimensions_Length : 19.812 centimeters
ItemPackageDimensions_Width : 25.4 centimeters
ItemTypeKeyword : bottle-jacks
LoadCapacity : 30.00 tons
Manufacturer : BESTSTART
Material : Alloy Steel
MinimumHeight : 105 millimeters
ModelName : Hydraulic Jack Porta Power Ram Kit-C0128
ModelNumber : Hydraulic Jack Porta Power Ram Kit-C0128
NumberOfItems : 1
PartNumber : RCCHOL015
ProductDescription :

Specification

• Material: Steel
• Quick Coupling Type (Thread): ZG3/8
• Fuel Hose Material: Rubber

• Jack Model: RSC-3050
• Tonnage: 30T/66138lbs
• Travel(Adjustable Height): 50mm/1.9inch
• Jack Height: 105mm/4.1inch
• Jack Extended Height: 155mm/6.1inch
• Jack Diameter: 104mm/4.09inch
• Oil Storage Capacity: 210CC
• Jack Weight: 5.5kg/12.1lbs

• Pump Model: CP-700
• Oil Storage Capacity: 700CC
• Pump Max. Pressure: 70MPa
• Pump Min. Pressure: 7MPa
• Pump Weight: 10.5kg/23.1lbs

How to Use

• 1.First, connect the quick connector of the manual pump to the jack.
• 2.Select the position and tighten the hydraulic pump drain screw clockwise.
• 3.Press the handle up and down.
• 4.When you can see the coil on the spindle, stop pressing.
• 5.Loosen the hydraulic pump oil drain screw counterclockwise.

Package Included

• 1* Hydraulic Jack
• 1* Pump

Notes

• 1.Please keep the load bearing surface hard and flat and do not exceed the tonnage and rated strok, otherwise, the cylinder will be damaged.
• 2.It is only applicable to railroad vehicle maintenance, machinery installation, construction project support, etc., not applicable to household cars.
• 3.The package does not include hydraulic oil, please buy it locally by yourself. Thank you for your understanding.
• 4.Please stop immediately when you see the stop line.

ProductSiteLaunchDate : 2024-11-09T17:26:06.151Z
Style : 30T Hydraulic Jack + CP-700 Pump
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 24101600
WarrantyDescription : 90 days
