Specification
Brand : HQHAOTWU
BulletPoint1 : 【Single Head Hinge Drilling Machine】This single head woodworking hinge drilling machine features elegant appearance, simple and convenient operation, and can adjust the drilling position vertically and horizontally, which is convenient and fast, and the switch control is accurate and in place.
BulletPoint2 : 【Excellent Design】The machine has no tool calibration device, which can ensure the need of drilling depth. Three holes in the vertical position can be processed at one time, including one big hole for hinge head hole and two for assembly screw hole. Suitable for drilling various profiles.
BulletPoint3 : 【Parameters】Maximum drilling diameter: 35mm; Maximum depth of hole: 50mm; Maximum work piece length: 1000mm; Speed of main shaft: 2880R/min; Air pressure: 0.6-0.8MPA; Motor power: 1.5KW. Combined Drill Model: 45-9.5.
BulletPoint4 : 【Powerful Motor】Adopt 1.5KW copper core motor, rotating speed of main shaft is up to 2880RPM, which is powerful and durable. Featured with flexible, stable and reliable drilling operation,high efficiency.
BulletPoint5 : 【Application】This machine is used for drilling processing of cabinets, wardrobes, door processing and manufacturing,it ​is mainly for loose leaf and hinge drilling, drilling can be adjusted horizontally and vertically, convenient and quick to meet the requirements of drilling processing, It is the ideal equipment for various door industry processing manufacturers.
Color : 50mm/1.97"
DrillType : drill_press
ExternallyAssignedProductIdentifier : 7372310778843
ExternallyAssignedProductIdentifier1 : 840403763405
ExternallyAssignedProductIdentifier2 : 0840403763405
FinishType : Brass
IncludedComponents : Drill Bits (35mm*1, 3mm*2), Combined Drill Model: 45-9.5

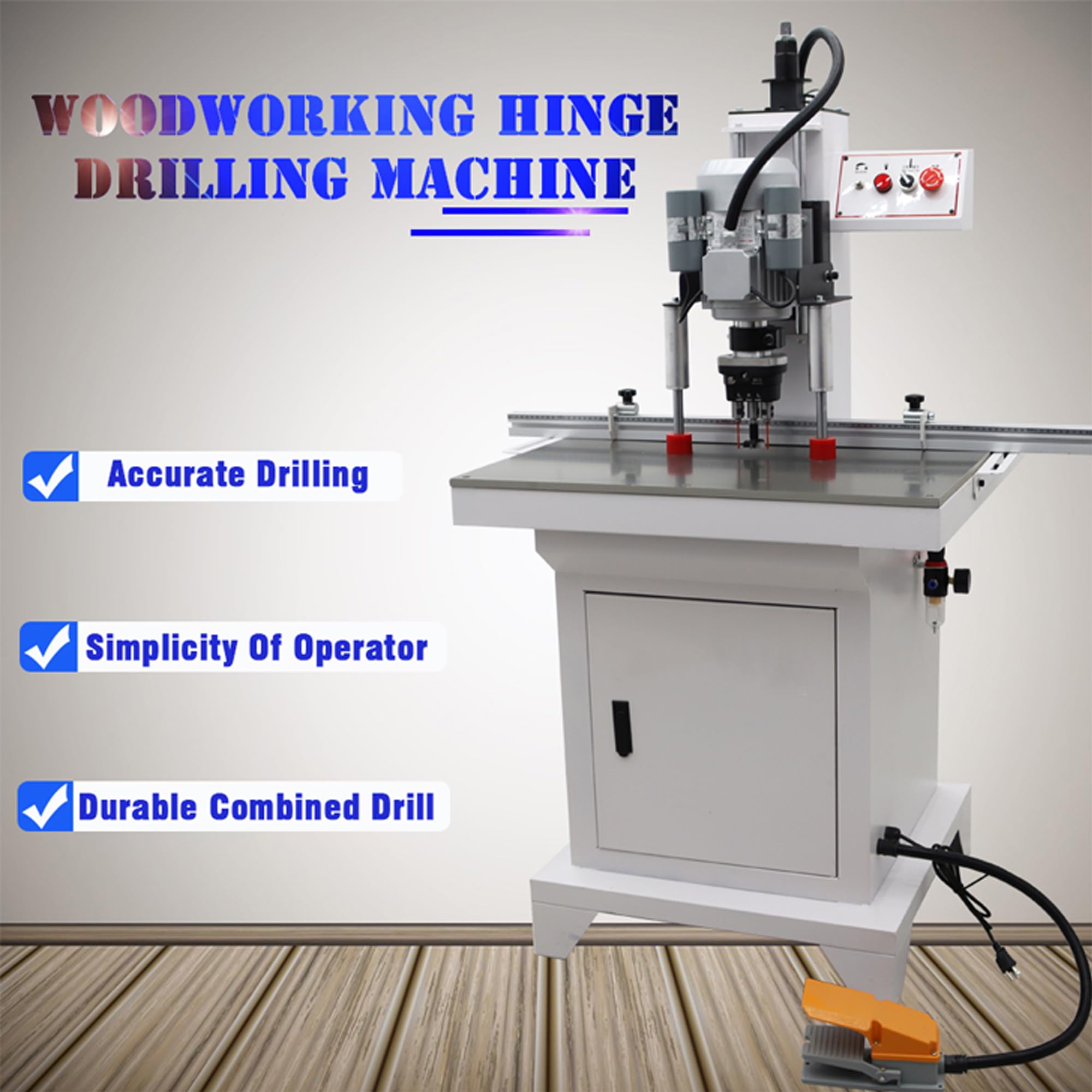

ItemName : HQHAOTWU Pneumatic Hinge Boring Insertion Machine Single Head Hinge Boring Drill Press Machine Woodworking Hinge Drilling Processing Machine Adjustable Punching Depth 45-9.5 Combined Drill
ItemPackageDimensions_Height : 65.75 inches
ItemPackageDimensions_Length : 31.89 inches
ItemPackageDimensions_Width : 28.35 inches
ItemPackageQuantity : 1
ItemTypeKeyword : boring-bits
Manufacturer : HQHAOTWU
Material : Metal
MaximumPower : 1500 watts
MaximumRotationalSpeed : 2880 rpm
ModelNumber : 45-9.5
NumberOfFlutes : 2
NumberOfItems : 1
PartNumber : DX027304
PowerSourceType : Air Powered
ProductDescription : Parameters
Voltage: 110V
Power:1500W
Punching Depth:0-50mm
Speed:2880r/min
Drill:φ35mm*1,φ3mm*2
Combined Drill Model:45-9.5
Scale:39.4″(100cm)
Air Pressure:0.6-0.8MPA
Precautions For Use：
1. Before starting the equipment, check whether the voltage, oil pump, oil quantity, etc. are normal, whether the lubrication is good, and whether the fixture is intact and normal.
2. After the device is switched on, it must perform the mechanical zero return operation at first, and then the test run. The time is 5 minutes, check whether the operation of the machine is normal, after that everything can be continued.
3. By using the calibration knife switch on the control panel, after the drill bit is raised, the guiding ruler and positioning pin are fixed through measurement. After repeated experiments to obtain the accurate position, the work can begin.
4. The drill speed should not be too fast, and the drill should be sharp. Too fast feed speed will cause chip removal difficulties, cause drilling smoke, hole wall carbonization, and fast feed speed is more likely to lead to serious consequences of spindle break.
5. After working for a period of time, the drilling head slide may be loose, if not adjusted, it will cause the processed hole is oval or diagonal hole, and in serious cases, it will cause the spindle to bend and break. The method is to loosen the screw fixing the slide seat, adjust the lock screw on the side of the slide block, so that the drill can not swing back and forth, up and down, and then it should be locked, but not adjusted too tight, otherwise the drilling head can not move smoothly, crawling phenomenon.
6. When there’s something wrong with this equipment, the operator should handle it in time. If it can't be handled, or if the problem is serious, please turn off the power of the equipment immediately and notify the professional maintenance personnel to solve the problem.
ProductSiteLaunchDate : 2023-12-06T01:50:25.843Z
Size : 45-9.5 Combined Drill
SkipOffer : 1
Speed : 2880 rpm
Style : SINGLE HEAD
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SurfaceRecommendation : Metal
SurfaceRecommendation1 : Copper
SurfaceRecommendation2 : Metal
UnitCount : 1
UnspscCode : 31162403
Voltage : 110 volts
