Specification
Brand : JMT
BulletPoint1 : UART interface, BL¡¤E5.3, high speed transmission 1Mbps,?low power consumption 1uA.
BulletPoint2 : Bluetooth-compatible 5.3 serial port through the transmission,?power can be communicated, without complex development and setup.
BulletPoint3 : 512KB FLASH and 36 KB RAM chip IO have been externally referenced to support?the secondary development of the module firmware, applicable to more flexible.
BulletPoint4 : Self-developed low-power algorithm logic, no fear of power supply problems. AT command configuration or APP remote configuration parameters. Chip built-in ARM-M10+ high performance processor.
BulletPoint5 : Compatible with a variety of physical layer and communication protocols,?Compatible with Zigbee 3.0, BLE5.3, Proprietary systems,?Simplelink-compatible TI 15.4 stack (2.4GHz), expanding more application scenarios.
CompatibleDevices : Surfboardes
ConnectorType : Barrel Connector
ExternallyAssignedProductIdentifier : 7403450244414
ExternallyAssignedProductIdentifier1 : 0609652492722
ExternallyAssignedProductIdentifier2 : 609652492722
InputVoltage : 240 volts

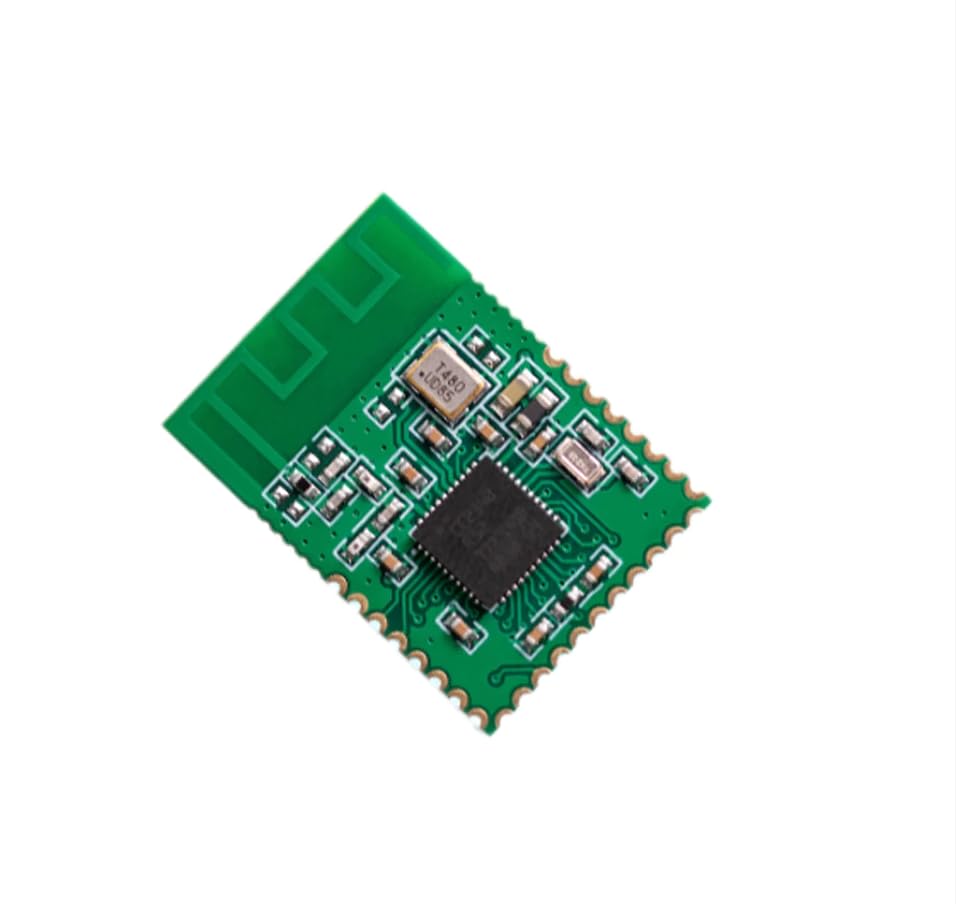

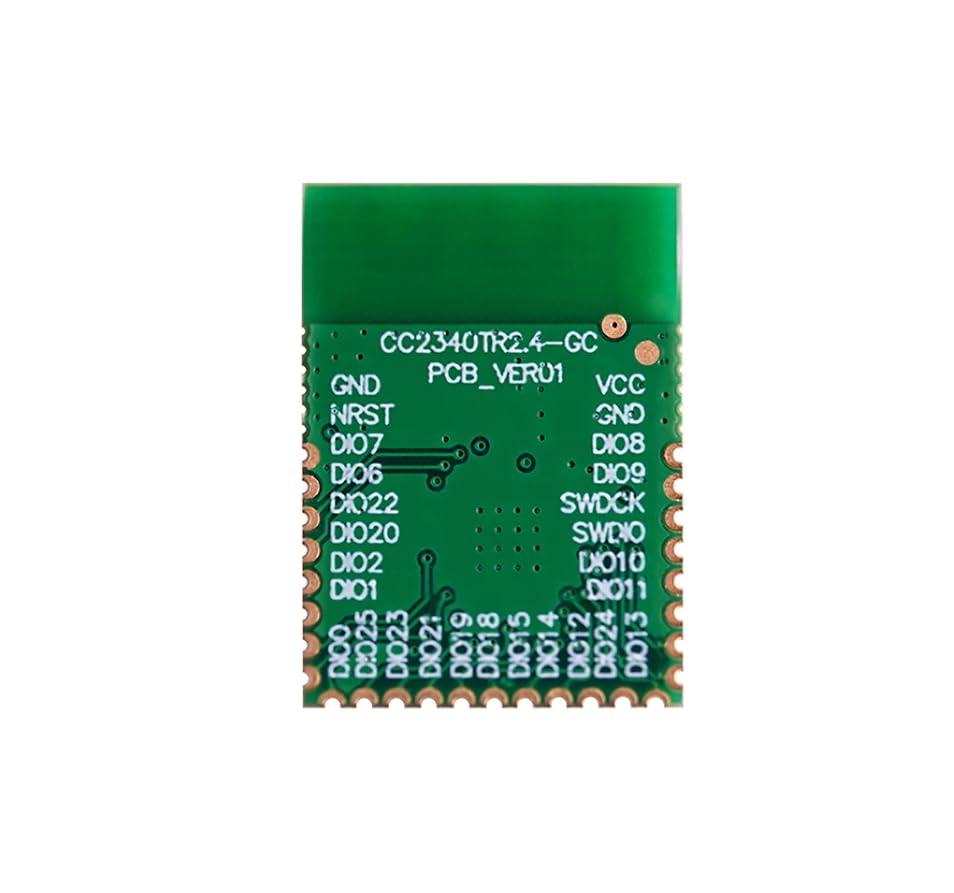

ItemName : JMT Digital Transmission Module Serial Port Pass-Through Slave Mode Support Secondary Development Compatible with Bluetooth 5.3 (5Pcs)
ItemPackageQuantity : 1
ItemTypeKeyword : bluetooth-network-adapters
Manufacturer : JMT
ModelNumber : 6924023125936
ModemType : voice
MountingType : Wall Mount
NumberOfPorts : 3
PartNumber : F52088
PowerSourceType : Corded Electric
ProductDescription : JMT Digital Transmission Module Serial Port Pass-through Slave Mode Support Secondary Development Compatible with Bluetooth 5.3


Feature:

TI high performance low power consumption.

UART interface, BLE5.3, high speed transmission 1Mbps, low power consumption 1uA.

Bluetooth-compatible 5.3 serial port through the transmission, power can be communicated, without complex development and setup.

Self-developed low-power algorithm logic, no fear of power supply problems.

AT command configuration or APP remote configuration parameters.

Chip built-in ARM-M10+ high performance processor.

512KB FLASH and 36 KB RAM chip IO have been externally referenced to support the secondary development of the module firmware, applicable to more flexible.

Compatible with a variety of physical layer and communication protocols, Compatible with Zigbee 3.0, BLE5.3, Proprietary systems, Simplelink-compatible TI 15.4 stack (2.4GHz), expanding more application scenarios.


Parameters:
Voltage range: 1.7V-3.8V
Standard voltage: 3.3V
Frequency range: 2402MHz to 2480MHz programmable configuration
Frequency Error: +/-10ppm
Modulation mode: GFSK
Data transfer rate: 1Mbps
Transmission distance: 150m (in open environment)
Output power: 0dBm (default 0)
Receiving sensitivity: -99dBm
Sleep current: <1uA
Receiving current: 2.43mA
Transmit current: 8.3mA@0dBm
Operating Temperature: -30¡æ-85¡æ
Size: 18.8*15.1mm
Antenna impedance: 50ohm
Antenna interface: PCB on-board antenna
ProductSiteLaunchDate : 2024-04-19T07:44:05.969Z
Size : 5Pcs
SpecificationMet1 : CE
SpecificationMet2 : RoHS
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 43200000
