Specification
Brand : JMT
BulletPoint : 1
BulletPoint1 : Low power Compatible-with-Bluetooth serial port transparent module integrated with master and slave/Compatible-with-Bluetooth serial port transparent transmission.
BulletPoint2 : Adopting a low-power Compatible-with-Bluetooth chip with a main frequency of 96MHz and RISC 32-bit CPU, Complies with BLE-Compatible 5.0 protocol, supports low-power mode, and can achieve microampere power consumption.
BulletPoint3 : The transmission distance can reach 40-60 meters, and the size is only 14 * 9.5mm.
BulletPoint4 : Supports Compatible-with-Bluetooth?5.0 protocol for faster transmission speed and longer distances.
BulletPoint5 : Interface Type: UART/PWM/GPIO/I2C/SPI/ADC. Serial Port Parameters: 9600~921600/data bit 8/stop bit 1.
Color : One Color
CompatibleDevices1 : Printer
CompatibleDevices2 : Keyboard
CompatibleDevices3 : Headphone
ConnectivityTechnology : Serial
DataLinkProtocol : Bluetooth
ExternallyAssignedProductIdentifier : 6114769048808
ExternallyAssignedProductIdentifier1 : 0609652470591
ExternallyAssignedProductIdentifier2 : 609652470591
HardwareInterface : bluetooth

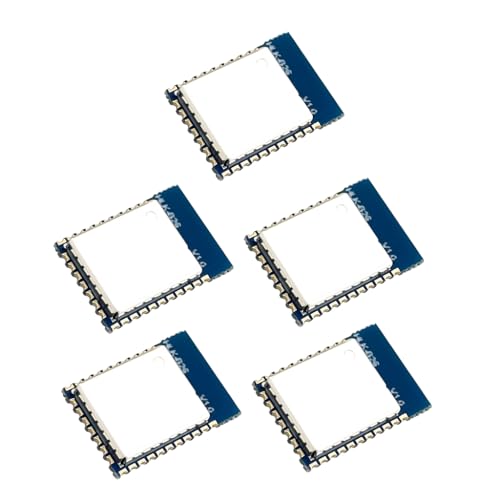

ItemName : JMT B26 Serial Port Transmission Module Low Power Wireless Module Master Slave Integrated Compatible with Bluetooth 5.0 (5Pcs)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : bluetooth-network-adapters
Manufacturer : HI-LINK
Material : ABS Metal
ModelNumber : DaLizA
ModemType : voice
NumberOfItems : 1
NumberOfPorts : 3
PartNumber : F51147

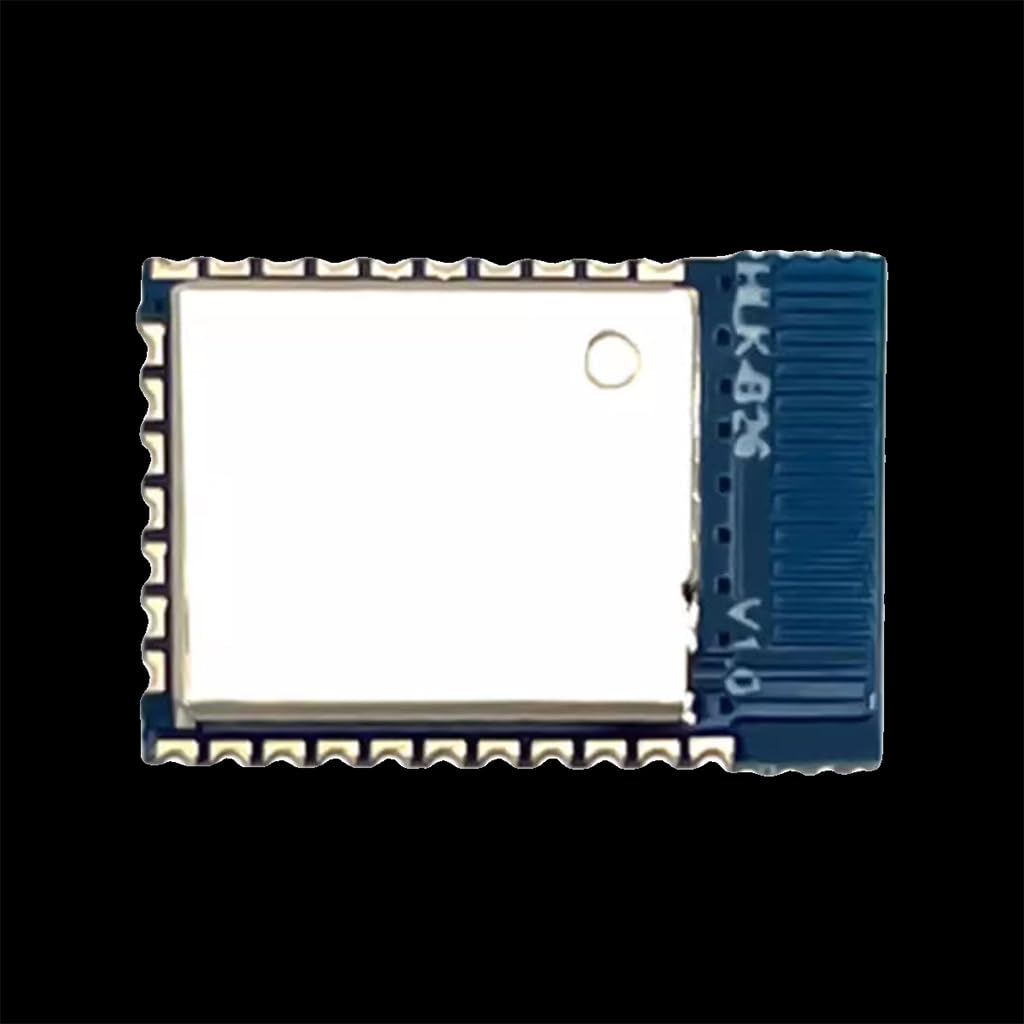

ProductDescription : JMT B26 Serial Port Transmission Module Low Power Wireless Module Master Slave Integrated Compatible with Bluetooth 5.0


Serial Port Transmission Module Features£º
Low power Compatible-with-Bluetooth serial port transparent module integrated with master and slave/Compatible-with-Bluetooth serial port transparent transmission.

Adopting a low-power Compatible-with-Bluetooth chip with a main frequency of 96MHz and RISC 32-bit CPU, Complies with BLE-Compatible 5.0 protocol, supports low-power mode, and can achieve microampere power consumption.

The transmission distance can reach 40-60 meters, and the size is only 14 * 9.5mm.

Supports Compatible-with-Bluetooth 5.0 protocol for faster transmission speed and longer distances




Compatible-with-Bluetooth parameters:

Compatible-with-Bluetooth specification: B-L-E 5.0

Frequency range: 2.402-2.480GHz

Transmission power: -20dBm~+8dBm adjustable

Receiving sensitivity: -92dbm

Interface type: UART/PWM/GPIO/I2C/SPI/ADC

Reference distance: 40-60m



Hardware parameters:

Serial port parameters: 9600~921600/data bit 8/stop bit 1

Power supply input: DC1.8-3.4V/typical 3.0V

Sleep current:~102.3uA

Working current:~4MA (configurable parameter tuning)

Package size: 14 ¡Á nine point five ¡Á 2mm

Antenna type: onboard antenna

Working temperature -40 ¡æ~+85 ¡æ
ProductSiteLaunchDate : 2023-11-09T08:01:35.768Z
Size : 5Pcs
SpecificUsesForProduct : personal
UnspscCode : 43200000
WarrantyDescription : No Warranty
