Product Information
Editorial Review
This is a Bluetooth 4.0 module with 4pin base board that can support iphone4s or later. But does not support the version is lower than the android 4.3 phone(it don't support classic bluetooth 2.0 spp features) The core module is HM-10 Base board from DSD TECH Operating voltage: 3.3V to 6V How to Enable Apple Notification Center Service (ANCS) ANCS function 1.1 Please read apple notification ducument first 1.2 Send AT+TYPE3 command change to AUTH and BOND mode. 1.3 Send AT+ANCS1 command to open ANCS. 1.4 Send AT+PASS[para1] command to set passcode. Default passcode is "000000" 1.5 Send AT+RESET to restart module. Now you can use LightBlue to scan and made a connect with module. iOS will ask you input passcode. please input your passcode value. If all is okay, you should receive AT+ANCS[para1] command from module UART. About HM-10 Module Core module is the original HM-10 module, not fake. DSD TECH brand guarantees and we accept refund without any excuse. WARRANTY We back this item with ONE YEAR WARRANTY. If you meet any question, please contact us, we will fix your issue within 24 hours.
Features
1) Low Energy: With HM-10 bluetooth 4.0 module, you can add Bluetooth features to your project and support iphone4s or later.

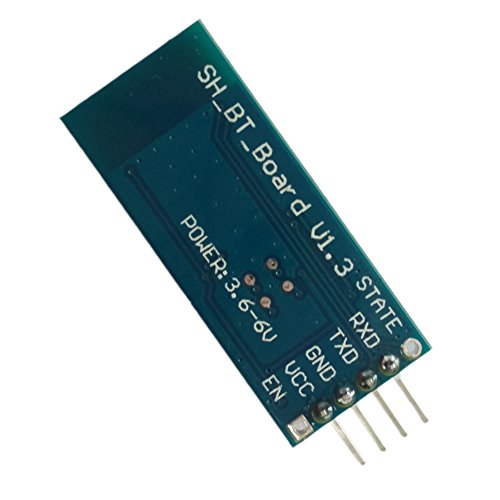

2) DSD TECH Brand 4pin Base Board: Through this base board, leads to VCC, GND, TX, RX. You can be very convenient to connect to your arduino project
3) Led status indication: when the connection is established will always light, disconnection is flash
4) iBeacon Support:You can make this module into ibeacon mode.So you can have your own ibeacon.it also Supports Apple Notification Center Service (ANCS)
5) working voltage 3.6 V to 6V,Default rate of 9600. DSD TECH back this Bluetooth 4.0 LE module with ONE Year WARRANTY. If you meet any question, please contact us, we will fix your issue within 24 hours.
Specification
Binding : Electronics
Brand : DSD TECH
Color : Multicoloured
EAN : 0710219132002
Label : DSD TECH
Manufacturer : DSD TECH
Model : HM-10
PackageDimensions_Weight : 0.18 pounds
PackageDimensions : L:5.28 X W:4.33 X H:0.39
ProductGroup : PC Accessory
ProductTypeName : COMPUTER_COMPONENT
Publisher : DSD TECH
Studio : DSD TECH
Title : DSD TECH HM-10 Bluetooth 4.0 BLE iBeacon UART Module with 4PIN Base Board for Arduino UNO R3 Mega 2560 Nano
