Specification
Brand : INTRADIN (SHANGHAI) IMPORT & EXPORT
BulletPoint1 : Powered by a 5 speed, 5/8 HP motor
BulletPoint2 : Delivers 3, 140 max RPM
BulletPoint3 : Features a 10” swing

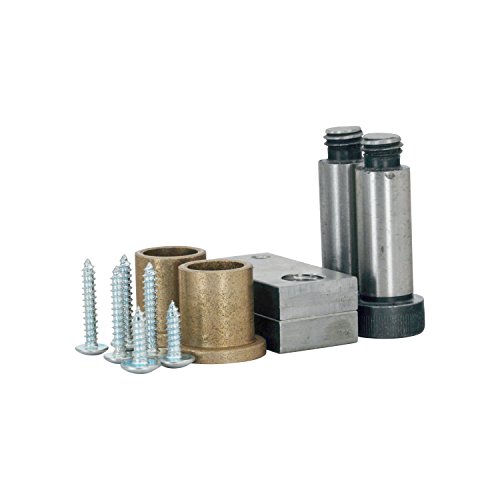

BulletPoint4 : Includes: (2)- 3/8" x 3/4" x 2" Steel Plate, (2)- 5/8" x 1-1/2" Shoulder Bolt, (2)- 5/8" ID x 13/16" OD Bronze Bearing, (4)- 8 x 1" Bolt, (2)- 10 x 5/8" Bolt
BulletPoint5 : This was as inexpensive as buying a 1/3 HP drill press and offered a low profile unit that could be easily set up on a work bench.)
Color : Brushed
DrillType : drill_press
ExternallyAssignedProductIdentifier1 : 052088089705
ExternallyAssignedProductIdentifier2 : 0052088089705
ExternallyAssignedProductIdentifier3 : 00052088089705
GpsrSafetyAttestation : 1
Hazmat1 : auto-grounding
Hazmat10 : EG_NoAir
Hazmat11 : ES_NoAir
Hazmat12 : FR_NoAir
Hazmat13 : GB_NoAir
Hazmat14 : IE_NoAir
Hazmat15 : IN_NoAir
Hazmat16 : IT_NoAir
Hazmat17 : JP_NoAir
Hazmat18 : MX_NoAir
Hazmat19 : NL_NoAir
Hazmat2 : 3
Hazmat20 : PL_NoAir
Hazmat21 : SA_NoAir
Hazmat22 : SE_NoAir
Hazmat23 : SG_NoAir
Hazmat24 : TR_NoAir
Hazmat25 : US_NoAir
Hazmat26 : ZA_NoAir
Hazmat3 : AE_NoAir
Hazmat4 : AU_NoAir
Hazmat5 : BE_NoAir
Hazmat6 : BR_NoAir
Hazmat7 : CA_NoAir
Hazmat8 : CN_NoAir
Hazmat9 : DE_NoAir
IncludedComponents : bench mount drill press
IsElectric : 1

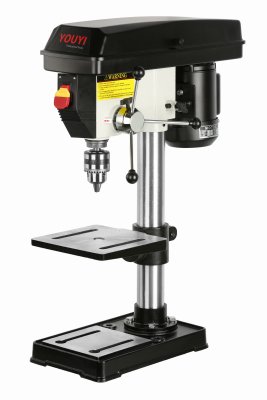

ItemName : INTRADIN (SHANGHAI) IMPORT & EXPORT 2701S050 Master Mechanic Bench Mount, Drill Press, 10"
ItemPackageDimensions_Height : 60.96 centimeters
ItemPackageDimensions_Length : 45.72 centimeters
ItemPackageDimensions_Width : 50.8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-benchtop-drill-presses
Manufacturer : INTRADIN (SHANGHAI) IMPORT & EXPORT
Material : Metal
MaximumRotationalSpeed : 3140 rpm
ModelName : Master Mechanic, 10", Bench Mount, Drill Press
ModelNumber : 2701S050
NumberOfItems : 1
NumberOfSpeeds : 5
PartNumber : 2701S050
Pattern : benchtop drill press
PowerSourceType : Corded Electric
ProductDescription : Installation:
1. Insert the (2) bronze bushings into the two holes located on the back of the base of the tool.
2. Install the (2) #12 x 1/2? sheetmetal screws into the two holes
on the side edges of the base and tighten screws until screw head is tighten as far as possible. 3. Insert the (2) shoulder bolts thru the top side of the bronze bushing and screw the shoulder bolt threads into the threaded hole in the 1? x 2? steel base plates.
4. Place the Euro-Drill’s drive shaft into the drill press chuck and secure.
5. With the Euro-Drill hanging in the drill press chuck, adjust the table height until the table just touches the bottom side of the base plates.
6. Point the base plates toward the back of the drill press. Depress the Euro-Drill as if drilling a hinge hole, until the fence on the bottom side of the tool strikes the table surface. While holding the tool down, screw the base plates to the table top using the (4) #8 x 1? sheetmetal screws. If the shoulder bolts bind at all, your table is slightly uneven. To correct for this, use thin cardboard shims where needed under the base plates. It is important that the base of the tool move freely up and down on the shoulder bolts.
7. While holding the tool in the down position as described in Step 6. slide straight edge under the tool until it is against the fence of the tool. Draw a reference line on both sides of the tool, to use for placement of an additional wood guide fence. This will make it easy to position doors under the tool for drilling.
8. Adjust the drill press speed to 1100 to 1600 RPM, DO NOT run the drill press any faster.
9. Turn down the appropriate turn stop.
10. Place door against the wood fence and slide the door under the tool’s base.
11. Bring down the tool until it just touches the door.
12. Slide the door until it engages the turn stop.
ProductSiteLaunchDate : 2018-01-24T05:03:51.990Z
Size : 10"
Speed : 3140 rpm
Style : drill press
UnitCount : 1
UnspscCode : 27112700
Voltage : 230 volts_of_alternating_current
