Specification
Brand : BIXIBIN
BulletPoint1 : Versatile Testing Capabilities: Offers four basic measurement modes (CC, CV, CR, CP) and five specialized modes (battery, dynamic, scanning, list, and short-circuit tests) to handle a wide range of power electronics testing needs.
BulletPoint2 : High Accuracy and Precision: Delivers 1mV/10mV resolution and 1mA/10mA accuracy, ensuring precise and repeatable results for power supply, charger, and battery testing.
BulletPoint3 : Safe and Reliable Operation: Equipped with over-current, over-voltage, over-temperature, and over-power protections, plus reverse input polarity indication to prevent equipment damage.
BulletPoint4 : Remote Control and Data Storage: Supports USB communication for remote operation, external trigger inputs, and has a built-in data storage feature to preserve test results during power loss.
BulletPoint5 : Portable and Durable: Compact, lightweight design (3.31 lbs), with rugged aluminum housing and silicone buttons for long-lasting use in various industrial environments.
Color : Black
ExternallyAssignedProductIdentifier : 7629662675352
ExternallyAssignedProductIdentifier1 : 0761099770778
ExternallyAssignedProductIdentifier2 : 761099770778
GpsrSafetyAttestation : 1
IncludedComponents : 1* Electronic Load Tester 1* Power Cord 1* Communication Interface

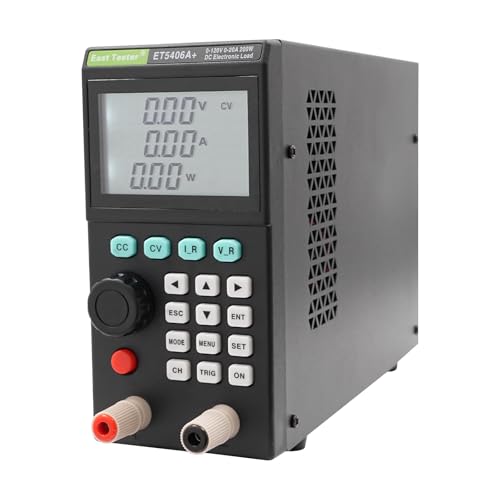

ItemName : Electronic Load Tester ET5406A+ 200W Programmable DC Load Detector Current Voltage USB Testers for Power Supply, Battery, Charger, and Power Electronics Testing
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 20 centimeters
ItemPackageDimensions_Width : 13 centimeters
ItemTypeKeyword : auto-battery-testers
LowerTemperatureRating : -40 degrees_celsius
Manufacturer : BIXIBIN
Material : plastics
MeasurementAccuracy : +0.5%
MinimumOperatingVoltage : 0.1 volts
ModelName : ETAINGYEUNwrou02tshi
ModelNumber : JZ8VF8-000200US
NumberOfItems : 1
PartNumber : ET5406A+
PowerSourceType : Corded Electric
ProductDescription :

Details

4 Rubber Non-slip Feet: They can absorb the shock, prevent the machine from slipping, and avoid scratching the tabletop.

Heat Dissipation Holes: They ensure timely heat dissipation of the machine and prolong its service life.

Intelligent Fan: The fan with intelligent speed control function can effectively reduce the noise when working.

Application

This product can be widely used in the production line test of chargers, switching power supplies, linear power supplies, batteries, and other industries.  It is an indispensable tool for power supply product development, production testing, and quality control.

Specifications

Model: ET5406A+

Style: Modern

Shape: Rectangular

Color: Black

Material: Aluminium, Silicone

Surface Treatment: Spray Painting

Plug Standard: US Standard

Mount Type: Tabletop

Assembly Required: No

Power Source: Corded Electric

Battery Tester Discharge Mode: CC, CR

Voltage: 0-120V

Input Current: 0-20A

Input Power: 200W

Operating Temperature: 0°C -40°C/ 32-104 ℉

Storage Temperature: -10℃ -70°C/ 14-158 ℉

Relative Humidity: <80 %

Maximum Discharge Capacity: 9999 Ah

Power Cord Length: 1.48m/ 4.85 FT

CV Mode

Range: 0.1~19.999V, 0.1~120.00V

Resolution: 1mV, 10mV

Accuracy: ±(0.05%+0.02%FS)

CC Mode

Range: 0~3.000A, 0~20.00A

Resolution: 1mA, 10mA

Accuracy: ± (0.05%+0.05%FS)

CR Mode

Range: 0.05Ω~4.50kΩ

Resolution: 10mΩ, 1Ω

Accuracy: ± (0.1%+0.5%FS)

CP Mode

Range: 0~200W

Resolution: 10mW

Accuracy: ± (0.1%+0.5%FS)

Gross Weight: 4.3kg/9.48 lbs

Net Weight: 1.5kg/ 3.31 lbs

Product Size: 30*14*21cm/ 11.81*5.51*8.27 in

Package Size: 41*43*61cm/ 16.14*16.93*24.01 in

Package Included

1* Electronic Load Tester

1* Power Cord

1* Communication Interface

1* Chinese Manual

Notes

1.Please note that although there is an LED icon in the Mode column of the segment code screen, this instrument does not have an LED test mode, nor does it have a battery internal resistance test.

2.Please note that there must be a positive voltage between the red and black terminals, if a negative voltage is input, there will be a reverse connection warning. Reverse connection may damage the instrument itself, or damage the power supply under test.

3.Please be careful not to input voltage to the input terminals without powering up and switching on the instrument. When the instrument is powered on, there will be a short-circuit self-test at the input terminals for 2 ms.

4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

ProductSiteLaunchDate : 2025-01-08T08:32:50.876Z
Size : One SIze
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
UnitCount : 1
UnspscCode : 26111700
UpperTemperatureRating : 104 degrees_fahrenheit
