Specification
AutoPartPosition : outer
Brand : Galley Power LLC
BulletPoint : Blue Sea Systems
BulletPoint1 : Waterproof. Remote ON and OFF signal to turn on/off LVD
BulletPoint2 : Alarm output with 1A current sinking capability for direct relay drive
BulletPoint3 : Flushed selector for 8 disconnect/reconnect threshold (-F): 9.3~12.0V for 12V battery and 18.6~24.2V for 24V battery
BulletPoint4 : Automatic 12V/24V battery detection; ultra-low standby current down to 0.26mA in 12V mode
BulletPoint5 : 4.5mΩ ultra-low pass-through resistance: Max continuous current 20A under -40~130⁰F ambient temperature
Color : White
ConnectivityProtocol : X-10
ConnectorType : Clamp
CurrentRating : 300 amps
ExternallyAssignedProductIdentifier1 : 632085060060
ExternallyAssignedProductIdentifier2 : 0632085060060
IncludedComponents : 6 Gauge Marine Wire 30FT
InternationalProtectionRating : IP54
ItemDisplayDimensions_Length : 10 inches
ItemDisplayWeight : 0.01 pounds

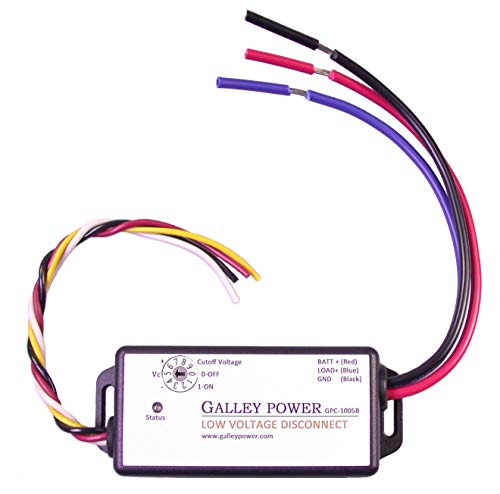

ItemName : Waterproof 20A Low Voltage Disconnect w/Remote ON/Off and Alarm, 12V/24V Auto Detect
ItemPackageDimensions_Height : 1 inches
ItemPackageDimensions_Length : 13 inches
ItemPackageDimensions_Width : 4 inches
ItemPackageQuantity : 1
ItemTypeKeyword : boating-battery-switches
Manufacturer : Galley Power LLC
Material : copper
MaximumCurrent : 300 amps
ModelNumber : 10
MountingType : Panel Mount
NumberOfItems : 1
NumberOfPositions : 1
OperatingVoltage : 48 volts
OperationMode : ON-OFF
PartNumber : GPC-1005-FEDA1
ProductDescription : Wire color scheme
Blue wire-> Load+
Black wire-> GND
Red wire-> Batt+

GPC-1005B-FEDA1 is a water-proof low voltage disconnect with remote on/off control and alarm output.
It disconnects attached load if the battery voltage drops below predefined threshold.
It reconnects the load when the battery is recharged.

For install instructions and details, please go to
https://www.galleypower.com/store/p16/GPC-1005B-REDA1_-_LVD_with_remote_ON%2FOFF_and_Alarm.html

Ten threshold options set by rotary selector
For 12V battery: 2, 9.3V; 3, 9.7V; 4, 10.1V; 5, 10.5V; 6, 10.9V; 7, 11.3V; 8, 11.7V; 9, 12.1V
For 24V battery: 2, 18.6V; 3, 19.4V; 4, 20.2V; 5, 21.0V; 6, 21.8V; 7, 22.6V; 8, 23.4V; 9, 24.2V
When selector=0, OFF: Disconnect power from the load. (When rotated to 2~9, the unit will stay off until reconnect threshold is reached.)
When selector=1, ON: Connect power to the load if no pending fault. (When rotated to 2~9, the switch will stay on until disconnect threshold is reached.)
Recessed selector.

Features
Ultra low pass-through impedance 4.5mΩ
Ultra low standby current 0.26mA in 12V mode and 0.65mA in 24V mode
Low normal operating current 3.5mA in 12V mode and 5.8mA in 24V mode
Automatic 12V/24V battery detection
10 threshold options
Water proof
Max continuous current: 20A under full temperature range -40~130⁰F
Red-Green dual color LED display for battery monitoring and fault reporting
Remote on and remote off control
Low noise and low interference by solid-state switch
Comprehensive protections
Dimension: 80x40x20mm w/ flanged lid
1-year limited warranty
ProductSiteLaunchDate : 2015-08-20T07:00:00.000Z
Size : 30FT
SpecificationMet : RoHS
SpecificUsesForProduct : Exterior,Interior
Strands : Multi Strand
Style : 6 AWG
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SwitchType : Push Button
UnitCount : 1
UnspscCode : 46182500
Voltage : 12 volts
