Specification
Brand : VOZINMOST
BulletPoint1 : The 30 ampere automotive marine circuit breaker has undergone professional electrical performance testing and aging testing, which can prevent power surges from damaging your amperes when the system is over powered or short circuited.
BulletPoint2 : The surface Mount circuit breaker 30A combines switching and circuit protection into a single device, manual reset arm is easy to operate, automatic testing and manual coverage.
BulletPoint3 : Fuse Inverter 30A meets S.A.E. J1625, J1171, UL1500 (Ignition Protected)；Housing is thermalplastic UL rated 94V0.
BulletPoint4 : "Trip Free" design cannot be held "ON" during fault current condition; Terminal Size: 5/16"-18.
BulletPoint5 : This Thermal Circuit Breaker 30A is made of alloy material and waterproof housing including waterproof cap, splash and dust proof, strong electrical conductivity, high temperature and pressure resistance.
CircuitBreakerType : Standard
CircuitType : 1-way
Color : Red
ConnectivityProtocol : X-10
ConnectorType : Plug In
ControllerType : Push Button
ControlMethod : touch
CurrentRating : 30 amps
CustomerPackageType : Standard Packaging
Department : unisex-adult
ExternallyAssignedProductIdentifier1 : 085226048241
ExternallyAssignedProductIdentifier2 : 0085226048241
ExternallyAssignedProductIdentifier3 : 00085226048241
FitType : Universal Fit
IncludedComponents : NO
InternationalProtectionRating : IP00
ItemDisplayWeight : 2.3 pounds

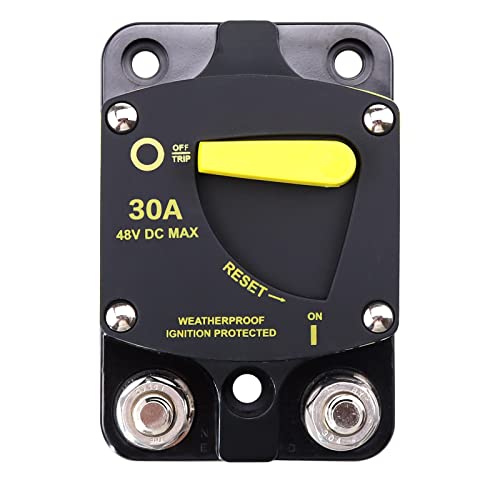

ItemName : VOZINMOST 30 Amp Circuit Breake with Manual Reset Switch Button, 12V-48V DC Waterproof Surface Mount Circuit Breaker 30A for Car Audio RV Marine Boat Truck
ItemPackageDimensions_Height : 10.0076 centimeters
ItemPackageDimensions_Length : 5.1054 centimeters
ItemPackageDimensions_Width : 7.2898 centimeters
ItemPackageQuantity : 1
ItemShape : Square
ItemTypeKeyword : boating-battery-switches
LightType : Non-Illuminated
LowerTemperatureRating : 1 degrees_celsius
Manufacturer : VOZINMOST
Material : Plastic
Material1 : Brass
Material2 : Polycarbonate
ModelName : 9703DP
ModelNumber : Boat Tilt Trim Switch
MountingType : Surface Mount
NationalStockNumber : 5930-01-486-1938
NumberOfItems : 1
NumberOfPoles : 1
NumberOfPositions : 1
OperatingVoltage : 12 volts_of_direct_current
OperationMode : ON-OFF
PackageLevel : unit
PartNumber : ZT-BG-CB-YELLOW-30A
ProductDescription :

Application:
1. Robust 5/16"-18 terminals provide high torque connections,mounting Hole Accept #10 (M5) Screw.
2. Large clearance around terminal studs accepts up to 1/0 AWG lugs
3. Easy Installation: Surface mount, can be mounted on panel or firewall,protective stud insulator included, No need to replace the inline fuse.
4. 30Amp DC Surface Mount circuit breaker combines switching and circuit protection into a single device.
5. uitable for car audio/video system, automobiles, yachts and Amps protection and in trucks, boat, RVs, marine, buses, Caravan, Winch,
Tractor and ATV applications ect; Also used in battery charges and DC sound amplifier system.

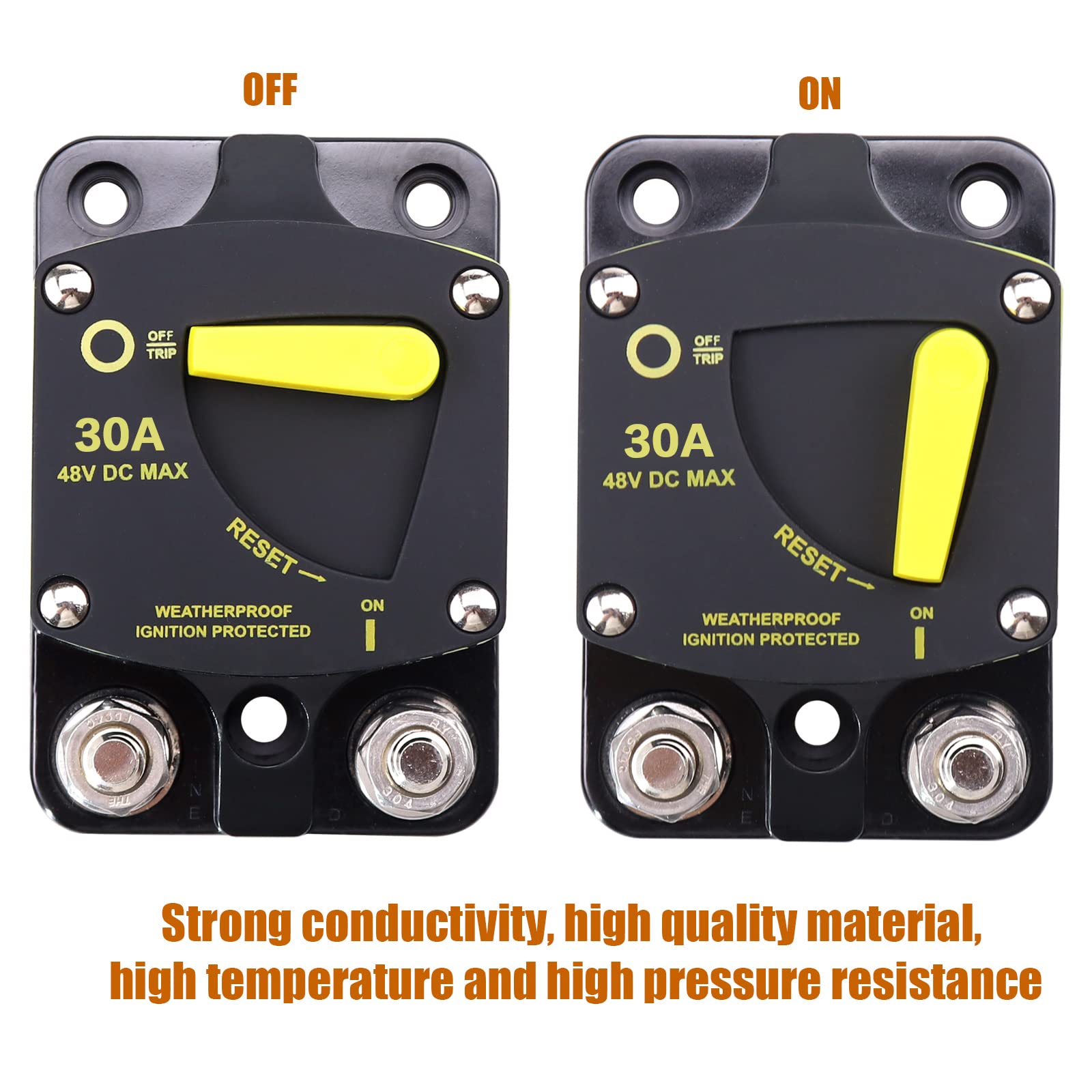

How to work?
1. Long handle opens, circuit breaker loses power.
2. After resetting the yellow long handle that popped open, the circuit breaker is powered on.

Other product specifications:
Max voltage: 48V DC
Interrupt rating: 3000A@30V DC
Interrupt capacity: 5000A @12V, 3000A @ 24V, 1500A @ 42V
Rated power: 30 Amp
Voltage rating: 12-48V DC
Product weight: 191.5g
Product size:(LxWxH) 3.46 x 2.3 x 1.8 inchs
Screw diameter: 6mm
Terminal: 1/4'' Bolt
Color: Black
Material: Nickel plated brass+Thermo-set Polyester
Design: Manual Reset Switch
Operating Temperature Rating: -40 °F(-40℃)to 185 °F(85 ℃)
Storage Temperature Rating: -40 °F(-40℃)to 260°F(125℃)
Weatherproof rating: IP67
Type: switchable/manual reset - trip free

Package List:
1 x 30 amp surface mount Circuit Breaker

Notes:
Please confirm that the product meets your needs before purchasing. If you have any other questions after purchasing, please contact us for assistance.
ProductSiteLaunchDate : 2023-03-29T02:37:53.037Z
Size : 30A
SpecificationMet : CE
Style : 30A
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SwitchType : Push Button
TerminalType : Through Hole
UnitCount : 1
UnspscCode : 39121601
UpperTemperatureRating : 1 degrees_celsius
Voltage : 48 volts
Wattage : 19200 watts
