Specification
Amperage : 600 amps
Brand : WSDMAVIS

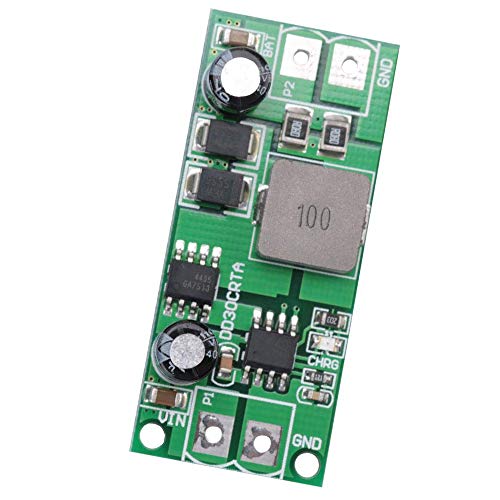

BulletPoint1 : The DD30CRTA is a PWM switch-mode battery charger controller for 12V lead-acid battery in a small package using few external components.It is specially designed for charging 12V lead-acid battery with trickle charge, constant current charge, over-charge and float charge mode.
BulletPoint2 : In over-charge and float charge mode, the regulation voltage is internally set. The constant charge current is programmable with a single sense resistor.Deeply discharged batteries are automatically trickle charged at 17.5% of the programmed.Constant charge current until the cell voltage exceeds 75% of the regulation voltage in.Constant charge current, then DD30CRTA will enter float charge mode. A new charge cycle.
BulletPoint3 : Over-charge mode. The over-charge is terminated once the charging current drops to 38% of the.Automatically restarts if the battery voltage falls below 83.95% of the over-charge voltage in.Float-charge mode. DD30CRTA will automatically enter sleep mode when input voltage is lower than battery voltage.Undervoltage lockout and status indication etc.

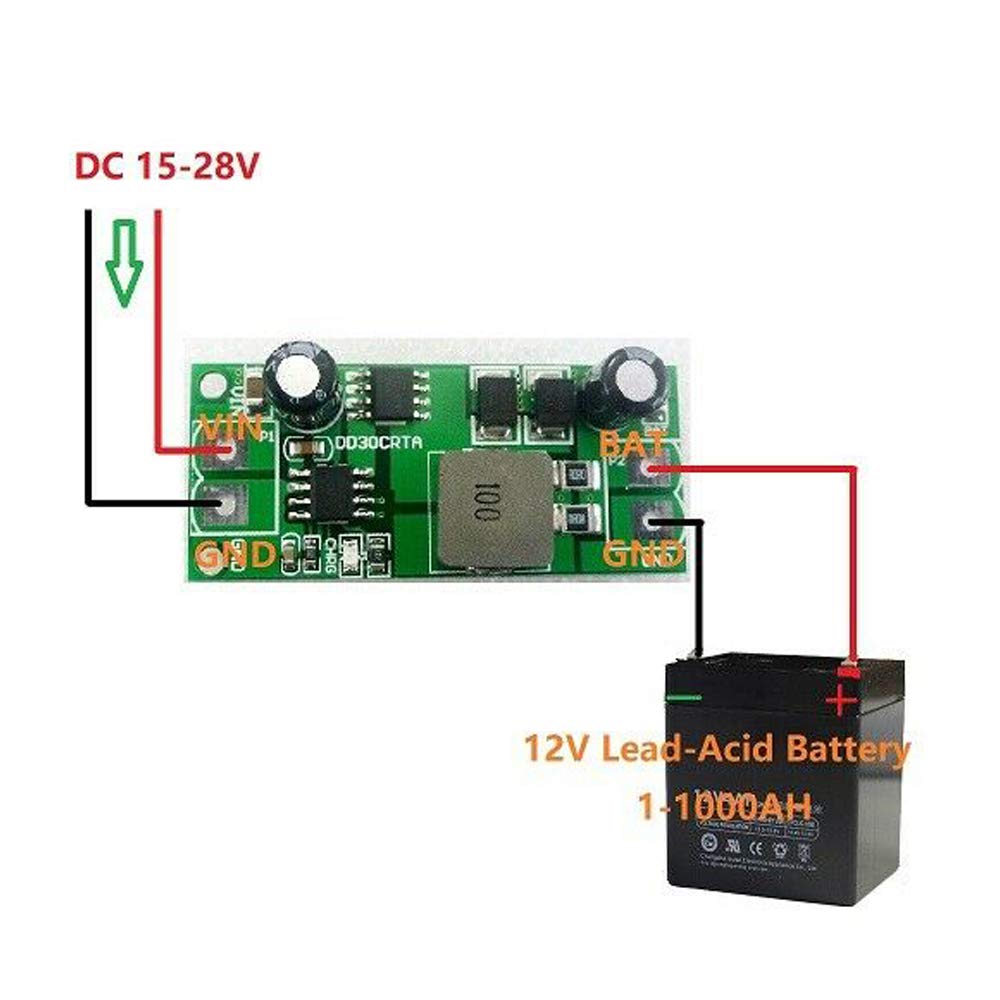

BulletPoint4 : Power supply voltage :15-25V;Over Charge Voltage is 14.8V;Float Charge Voltage is 13.55V;Maximum charge current : 3A;Quiescent current: about 1.8mA;High PWM Switching Frequency:300KHz;Operating Ambient Temperature －40℃ to ＋85℃.
BulletPoint5 : Applications to Car battery charging,Solar battery charging,Mobile Loadspeaker,Lead-Acid Battery Charger,Electric Bicycle Charger,UPS and Standalone Battery Chargers.
Color : Blue,Purple,Silver
CompatibleDevices : adapter
CompatibleWithVehicleType : Passenger Car
ConnectivityTechnology : Proprietary 2 Pin
ConnectorGender : Male-to-Female
ConnectorType : barrel connector
CurrentRating : 3 amps
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier : 3238337407729
ExternallyAssignedProductIdentifier1 : 0779675959967
ExternallyAssignedProductIdentifier2 : 779675959967
IncludedComponents : 1 x AC Adapter
InputVoltage : 15 volts
IsPortable : 1
ItemName : WSDMAVIS 1 Pcs Lead Acid Battery Charger Module 12V 3A 1-1000AH Lead Acid Accumulator Storage Cell Battery Charger Board for Car Solar Motorcycles
ItemPackageDimensions_Height : 11.9888 centimeters
ItemPackageDimensions_Length : 0.9906 centimeters
ItemPackageDimensions_Width : 7.7978 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : automotive-battery-chargers
Manufacturer : WSDMAVIS
MountingType : Wall Mount
NumberOfItems : 1
OutputCurrent : 0.5 amps
OutputVoltage : 12 volts
PartNumber : WS455
PowerPlugType : type_a_2pin_na
PowerSourceType : Corded Electric
ProductDescription : The Regulation Voltage in Over Voltage Mode and Float Charge Mode:
The regulation voltage VOC at BAT pin in over charge mode is set at 14.8V(Typical) with ±1.5% accuracy.
In float charge mode, the regulation voltage VFLOAT at BAT pin is 91.57% of that in over charge mode, which is 13.55V(Typical).
Trickle Charge Mode At the beginning of a charge cycle, if the battery voltage is below 75%×VOC, the charger goes into trickle.
Charge mode with the charge current set at about 17.5% of the constant current.

End-of-Over Charge Current
When the battery voltage approaches the over-charge voltage, the charger goes into the over charge mode. In over charge mode, the charge current start to decrease and when the charge current drops to 38% of constant charge current, the charger goes into float-charge mode.
Float Charge Mode
After the over voltage charge is terminated, the charger goes into float charge mode. In float charge mode, the battery voltage is regulated to 91.57%×VOC, namely 13.55V(Typical). Float charge mode can compensate for the loss of battery power due to self-discharge or external loading.
Automatic Battery Recharge
In float mode, if both the battery and the input power supply (wall adapter) are present, a new charge cycle will begin if the battery voltage drops below 83.95%×VOC due to self-discharge or external loading.A new charge cycle can also be started manually by plugging off the input supply and reapplying it.
Package Includes: 1Pcs 3A 12V 1-1000AH Lead-Acid Battery Charger Module(No Terminal)

ProductSiteLaunchDate : 2021-01-08T01:58:38.033Z
SpecificationMet : CE
SpecificationMet1 : CE
SpecificationMet2 : RoHS
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 26111729
Voltage : 15 volts
Voltage1 : 24 volts
Voltage2 : 12 volts
WarrantyDescription : 30 Days Money Back Guarantee / 60 Days Free Exchange With Paid Return Label / 365 Days Anytime Worry-Free Warranty!
Wattage : 12 watts
