Specification
Amperage : 3 amps
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : JESSINIE
BulletPoint : Ridgid R86049 Lithium Ion Battery Charger 12V JobMax Fast Charging Class 2
BulletPoint1 : 【Versatile Power Solution】 Equipped with a non-isolated constant current and voltage module, our power supply unit is a wide range of applications including ASICs, DSPs, microprocessors, and more. Output with an adjustable maximum 5A current and a 0.8V-30V output voltage range.
BulletPoint2 : 【Efficiency and Performance】Achieve up to 95% conversion efficiency with this compact module (5.2 x 2.65 x 1.4cm). Features include a switching frequency of 300KHz and an ultra-low output ripple of 50mV for smooth power supply.
BulletPoint3 : 【Easy Adjustable Settings】 Adjust the blue resistor to fine-tune the output voltage, ensuring optimal performance for charging batteries or powering LEDs. Input/output voltage difference is minimized to 1V, allowing for precise control.
BulletPoint4 : 【Durable and Reliable】Designed to withstand conditions, our module operates effectively between -40°C to +85°C. Its robust build ensures long-term reliability, making it suitable for both commercial and industrial use.
BulletPoint5 : 【Simple Setup for Battery Charging and LED Driving】Follow our step-by-step guide to easily set up the module for charging batteries or driving LEDs. Adjustable settings allow you to define the exact current and voltage needed, ensuring efficient and safe operation.
Color : Orange
CompatibleDevices : Black & Decker 18V NiCd Drill/Drivers
CompatibleDevices1 : Speakers
CompatibleDevices2 : Cameras
CompatibleDevices3 : Tablets
CompatiblePhoneModels : Black & Decker 18V NiCd drill/driver series
ConnectivityTechnology : DC Barrel
ConnectorType : Proprietary
CurrentRating : 5 amps
CurrentRating1 : 3 amps
CurrentRating2 : 3.1 amps
ExternallyAssignedProductIdentifier : 5747432270001
ExternallyAssignedProductIdentifier1 : 0767853015581
ExternallyAssignedProductIdentifier2 : 767853015581
FormFactor : Rectangular
FrequencyRange : 50-60Hz
Hazmat : 9
Hazmat1 : LITHIUM ION BATTERIES
Hazmat10 : EG_SmallLithiumIonBatteryStandalone
Hazmat11 : ES_SmallLithiumIonBatteryStandalone
Hazmat12 : FR_SmallLithiumIonBatteryStandalone
Hazmat13 : GB_SmallLithiumIonBatteryStandalone
Hazmat14 : IN_SmallLithiumIonBatteryStandalone
Hazmat15 : IT_SmallLithiumIonBatteryStandalone
Hazmat16 : JP_SmallLithiumIonBatteryStandalone
Hazmat17 : MX_SmallLithiumIonBatteryStandalone
Hazmat18 : NL_SmallLithiumIonBatteryStandalone
Hazmat19 : PL_SmallLithiumIonBatteryStandalone
Hazmat2 : UN3480
Hazmat20 : SA_SmallLithiumIonBatteryStandalone
Hazmat21 : SE_SmallLithiumIonBatteryStandalone
Hazmat22 : SG_SmallLithiumIonBatteryStandalone
Hazmat23 : TR_SmallLithiumIonBatteryStandalone
Hazmat24 : US_SmallLithiumIonBatteryStandalone
Hazmat25 : 9
Hazmat3 : II
Hazmat4 : AE_SmallLithiumIonBatteryStandalone
Hazmat5 : AU_SmallLithiumIonBatteryStandalone
Hazmat6 : BR_SmallLithiumIonBatteryStandalone
Hazmat7 : CA_SmallLithiumIonBatteryStandalone
Hazmat8 : CN_SmallLithiumIonBatteryStandalone
Hazmat9 : DE_SmallLithiumIonBatteryStandalone
IncludedComponents : 1 x Adapter
InputVoltage : 240 volts
IsPortable : 1

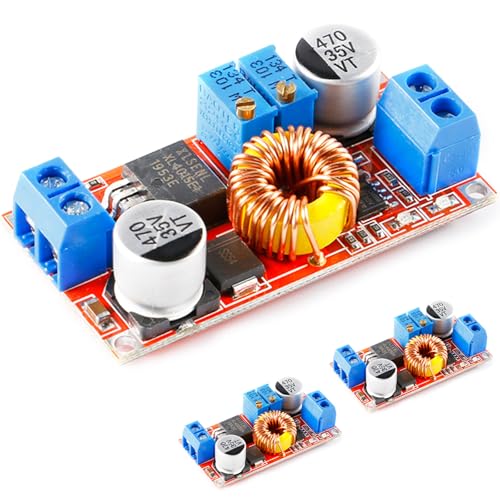

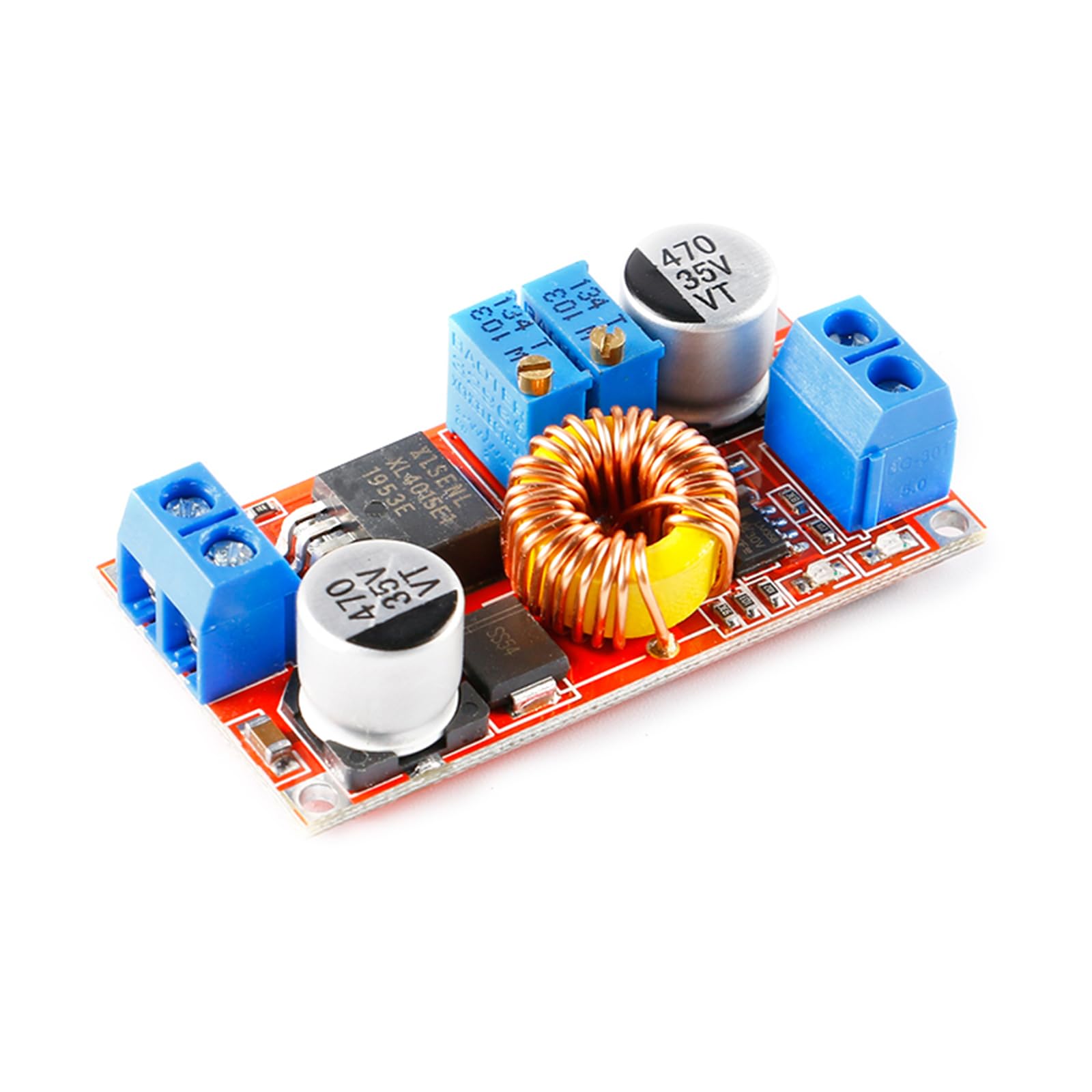

ItemName : JESSINIE 3pcs XL4015 5A DC-DC Step Down Charger Modules, CC CV Lithium Battery Charging Board, LED Power Converter
ItemPackageDimensions_Height : 17.1 centimeters
ItemPackageDimensions_Length : 2 centimeters
ItemPackageDimensions_Width : 11.5 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : cordless-tool-battery-chargers
Manufacturer : JESSINIE
Material : Plastic
Material1 : Plastic
Material2 : Metal
MinimumFrequency : 50 hertz
ModelNumber : R86049
MountingType : Wall Mount
NumberOfItems : 3
NumberOfLithiumIonCells : 3
NumberOfPowerLevels : 1
OutputCurrent : 6.22 amps
OutputVoltage : 12 volts_of_direct_current
PartNumber : DC10WD
PowerPlugType : type_b_3pin_na
PowerSourceType : Battery Powered
ProductDescription :
Feature：
Size: 5.2 x 2.65 x 1.4cm (L x W x H)
Module Properties: non-isolated constant current and voltage module
Rectification: non-synchronous rectification
Input voltage: 5V-32V
Output voltage: 0.8V-30V
Output current: adjustable maximum 5A
Conversion efficiency: 95% (the highest)
Switching frequency: 300KHz
Output ripple: 50mV (max) 20M bandwidth
Load Regulation: ± 0.5%
Voltage Regulation: ± 2.5%
Operating Temperature: -40 °c to +85 °c

This module is an adjustable step-down module, you can change the output voltage by adjusting the blue adjustable resistor on top of the module. The input/output voltage difference is 1V and the minimum output voltage is 0.8V.
Make sure to connect IN-(input negative), IN+(input positive), OUT-(output negative), OUT+(output positive) correctly, otherwise the module may be damaged.

Battery charging How to use: 1.
1. Determine the floating voltage and charging current of the battery you need to charge, and the input voltage of the module; 2. Adjust the constant voltage potentiometer to adjust the output voltage to about 5V. 3.
3. Measure the output short-circuit current with a multimeter 10A current stop, and adjust the constant current potentiometer to make the output current reach the predefined charging current value.
4. Charge the lamp current default shipping for 0.1 times the charging current (constant current value).
5. Adjust the constant voltage potentiometer so that the output voltage reaches the float voltage.
6. Connect the battery, test charging.
(1, 2, 3, 4, 5 steps for the module input to connect the power supply, the output no-load not connected to the battery.)


ProductSiteLaunchDate : 2024-07-02T03:57:08.000Z
Size : Small
SpecificationMet : UL
SpecificationMet1 : CCC
SpecificationMet2 : CE
SpecificationMet3 : RoHS
Style : for Milwaukee Battery Charger & Inverter
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TotalUsb20Ports : 2
TotalUsbPorts : 2
UnitCount : 1
UnspscCode : 39121000
Voltage : 5 volts_of_direct_current
WarrantyDescription : 1 YEAR
Wattage : 25 watts
