Specification
Brand : JESSINIE
BulletPoint : For LifePO4 Lithium
BulletPoint1 : Protect battery pack from overcharging, over-discharging over-current and short circuit
BulletPoint2 : With balance function to keep each battery in balance and good service life
BulletPoint3 : Continuous current limit of discharge: 8A ± 1A; Discharge protection current limit: 12A ± 1A
BulletPoint4 : Charging limit voltage: 12.6V; Charging continuous current limit: 7A ± 1A; Charging protection current limit: 12A ± 1A
BulletPoint5 : The power range is applicable to the following products: massager battery pack, LED lamp backup power supply, 12V electronic products, solar street lamp battery pack, monitoring backup power supply, and other products
BulletPoint6 : ⭐Overvoltage protection, overcurrent protection, short circuit protection, reverse protection
Color : Red
CurrentRating : 4 amps
ExternallyAssignedProductIdentifier : 7443492891054
ExternallyAssignedProductIdentifier1 : 0771077253674
ExternallyAssignedProductIdentifier2 : 771077253674
InputVoltage : 12.6 volts

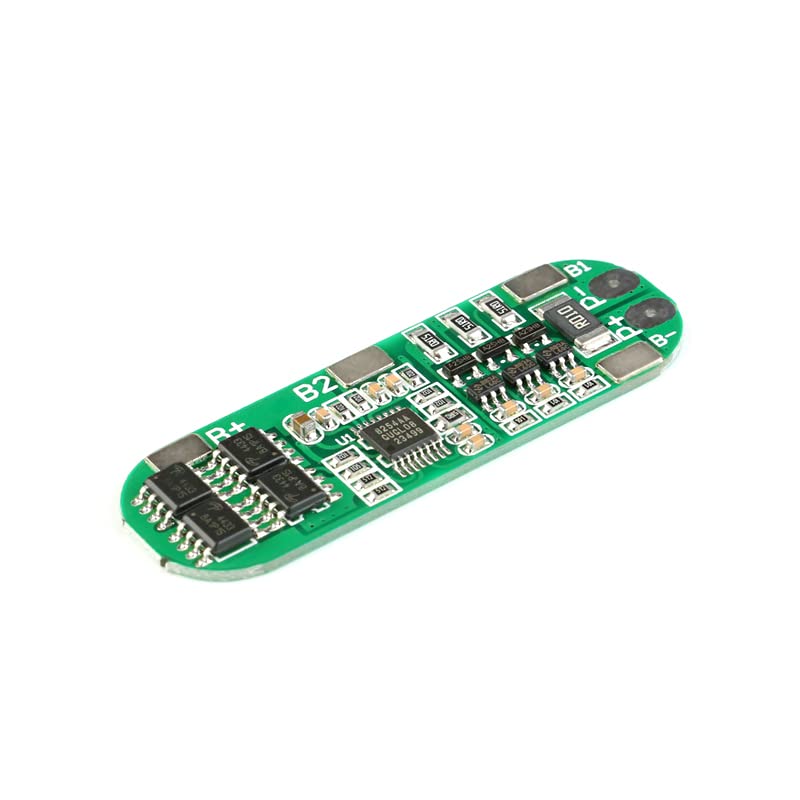

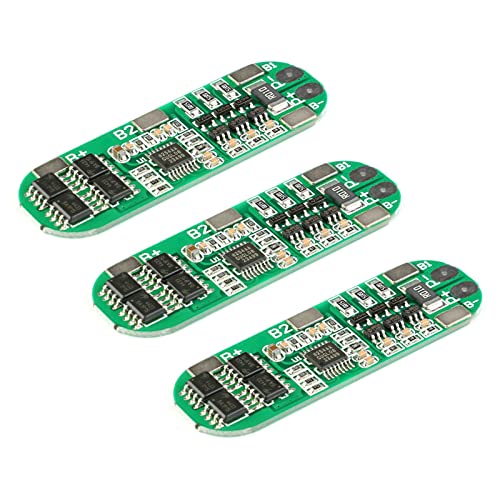

ItemName : JESSINIE 3Pcs 3S Battery Protection Board 3S 10A 18650 Lithium Battery Protection Board 12.6V with Charge Balance Overcharge Overdischarge Overcurrent Protection
ItemPackageDimensions_Height : 0.7 inches
ItemPackageDimensions_Length : 7.08 inches
ItemPackageDimensions_Width : 4.72 inches
ItemPackageQuantity : 1
ItemTypeKeyword : general-use-battery-chargers
Manufacturer : JESSINIE
Material : Plastic
ModelName : 3A LiFePO4 Charger
ModelNumber : HX-3S-JHA10
NumberOfItems : 3
OutputVoltage : 12.6 volts
PartNumber : ADC-13
ProductDescription : Technical parameters:
Model: HX-3S-JHA10
Overcharge voltage range: 4.25-4.35V ± 0.05V
Size: 53mm*17mm*2.7mm
Over-discharge voltage range: 2.3-3.0V ± 0.05V
Upper limit working current: 6A - 8A
Operating temperature: -40℃ to +50℃
Upper instantaneous current: 9A-10A
Storage conditions: - 40℃ to +80℃
Quiescent current: less than 30μA
Effective life: more than 30000 hours
Short circuit protection: protectable, delayed self-recovery
Charging voltage: 12.6V-13V
Continuous current limit of discharge: 8A ± 1A
Discharge protection current limit: 12A ± 1A
Charging limit voltage: 12.6V
Charging continuous current limit: 7A ± 1A
Charging protection current limit: 12A ± 1A
(Single section) Overcharge voltage: 4.25V ± 0.05V
(Single section) Overcharge release voltage: 4 15V ± 0.08V
(Single section) Over-discharge release voltage: 3V ± 0.1V

Description and explanation:
3 strings (three 18650 batteries or polymer lithium batteries in series)
10.8V (rated voltage of polymer battery)
11.1V (rated voltage of 18650 or 3.7V lithium battery)
12.6V (voltage after lithium battery is fully charged)
Discharge 10A (refers to the upper limit discharge current limit)

This protective plate cannot be used for lithium iron phosphate batteries, hernia lamps, electric hand drill battery packs, electric fish machine battery packs, electric bicycle battery packs, children's car batteries, motors above 775 (4A), and 1W fisheye LED lamp
ProductSiteLaunchDate : 2023-03-03T10:00:21.288Z
SpecificationMet : CE, UL
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 26111700
Voltage : 12 volts
WarrantyDescription : yes
