Specification
Brand : DAOKAI
BulletPoint1 : Enhanced version charging: Charge with efficient charging current, and stop charging when the total battery voltage is increased to the charging cut-off voltage, which can improve the charging speed of the battery.
BulletPoint2 : Module Highlights: This module has overcharge protection, overdischarge protection, overcurrent protection, high charge and discharge current, small size and light weight. fine workmanship and durable.
BulletPoint3 : Scope of application: Suitable for lithium batteries with a nominal voltage of 3.7V and a full voltage of 4.2V (including 18650, 26650, and polymer lithium batteries, there is no limitation on size).
BulletPoint4 : Note: Do not mix good batteries and bad batteries together, and new and old batteries can't be used together. Strictly according to the diagram wiring，0V/4.2V/8.4V/12.6V.
BulletPoint5 : Package includes: You will get 2 x 40A 3S PCB Lithium Battery Charger Protection Board, 1 x 1M/39.37in Nickel Strip 8mm.
Color : 40A 3S PCB Protection Board
CurrentRating : 40 amps
GpsrSafetyAttestation : 1
InputVoltage : 13.6 volts

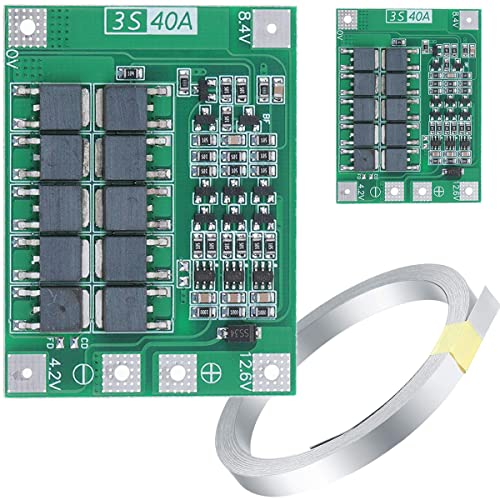

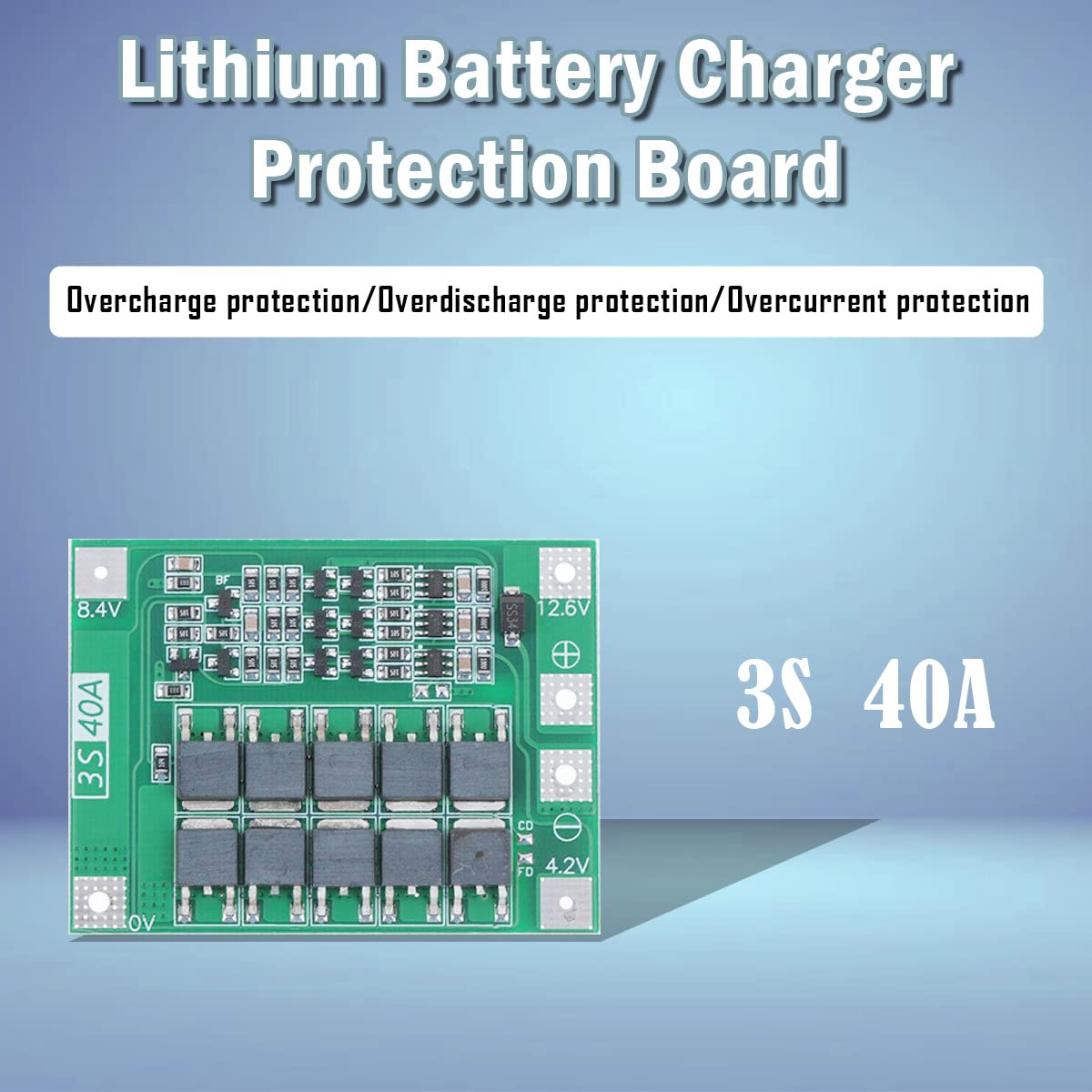

ItemName : DAOKAI 2Pcs 40A 3S PCB Protection Board Li-ion Lithium Battery Charger Protection Board Enhanced Edition with Nickel Strip for 40A Drill Motor 11.1V 12V 12.6V Lipo Cell Module
ItemPackageDimensions_Height : 9.2 centimeters
ItemPackageDimensions_Length : 2.1 centimeters
ItemPackageDimensions_Width : 7.5 centimeters
ItemTypeKeyword : general-use-battery-chargers
Manufacturer : DAOKAI
Material : copper
ModelNumber : WE-DA-156
NumberOfItems : 2
OutputVoltage : 13.6 volts_of_direct_current
PartNumber : WE-DA-156
ProductDescription : Specifications:
Charging voltage:12.6v ~ 13.6v
Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current )
Continuous charge current (upper limit): 20A
Size:41 mm×55 mm×3.4mm/1.61 ×2.16×0.13in
Detailed electrical parameters are shown in the picture

Scope of application:
Suitable for lithium batteries with a nominal voltage of 3.7V and a full voltage of 4.2V (including 18650, 26650, and polymer lithium batteries, there is no limitation on size)

Note：
1.To successful starting the drill requires three 15C-20C power batteries, or six 10C-15C power batteries (ordinary 18650 battery can not start the drill!!Recommended power battery models: SONY VTC4, VTC4A, VTC5A, and VTC6).).
2.Strictly according to the diagram wiring，0V/4.2V/8.4V/12.6V,Do not touch any components on the board when soldering the wire.
3.When welding the battery for the first time or charging, as long as a single battery exceeds 4.2V, the '430' resistor will heat up and discharge (discharge to about 4.19V and stop heating). If the '430' resistor is seriously hot (it is too hot to touch), please check whether the wrong wire is connected.
4.Do not mix the good battery and poor battery to use.The internal resistance of 3 battery capacity are closer will be better.

Package includes：
2x40A 3S PCB Lithium Battery Charger Protection Board
1x1M/39.37in Nickel Strip 8mm
ProductSiteLaunchDate : 2023-01-31T01:59:58.254Z
Style : 40A 3S PCB Protection Board
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 26111700
