Specification
Brand : Tyenaza
BulletPoint : Three Stage “Smart” Chargers Phase Three “Smart” battery charging technology is now available in a
BulletPoint1 : Principle - The battery balancer can test the voltage difference between adjacent battery strings and send high volts to low volts to achieve voltage balance
BulletPoint2 : Applicable Battery Type -- NCM (Li-ion)/LFP, NO LTO support; Single voltage working range: 2.0V-4.5V; Static working current: 0.01mA; Suggested Battery Capacity: Below 30AH
BulletPoint3 : Tips - The equalization board is not a BMS protection board, it is a protection board accessory, so no matter how bad the battery you use to test, it can be used, but it does not have an over-voltage/over-discharge protection function. Overvoltage/over-discharge is the function of the BMS protection board. If voltage protection is required, it is best to use it in parallel with the BMS protection board
BulletPoint4 : Accuracy - Built-in MOS with ultra-low internal resistance and 0-1.2A balance current and balance voltage accuracy within 30mv, the static current consumption is less than 20uA, safe and reliable
BulletPoint5 : Smart -- With sleep protection, when the voltage is lower than 3V, it will automatically stop and enter sleep mode to reduce the damage to the battery
Color : White
ControlMethod : remote
CurrentRating : 25 amps
ExternallyAssignedProductIdentifier1 : 689925417386
ExternallyAssignedProductIdentifier2 : 0689925417386
InputVoltage : 240 volts

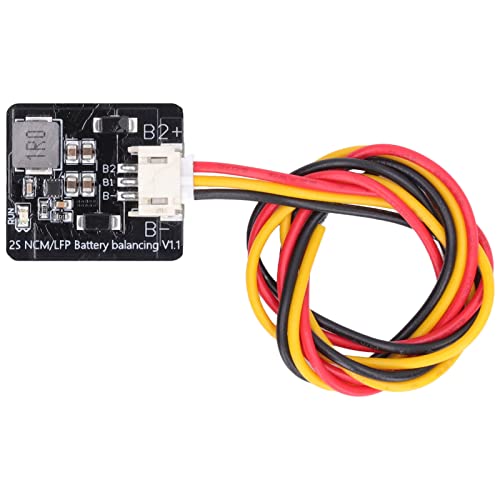

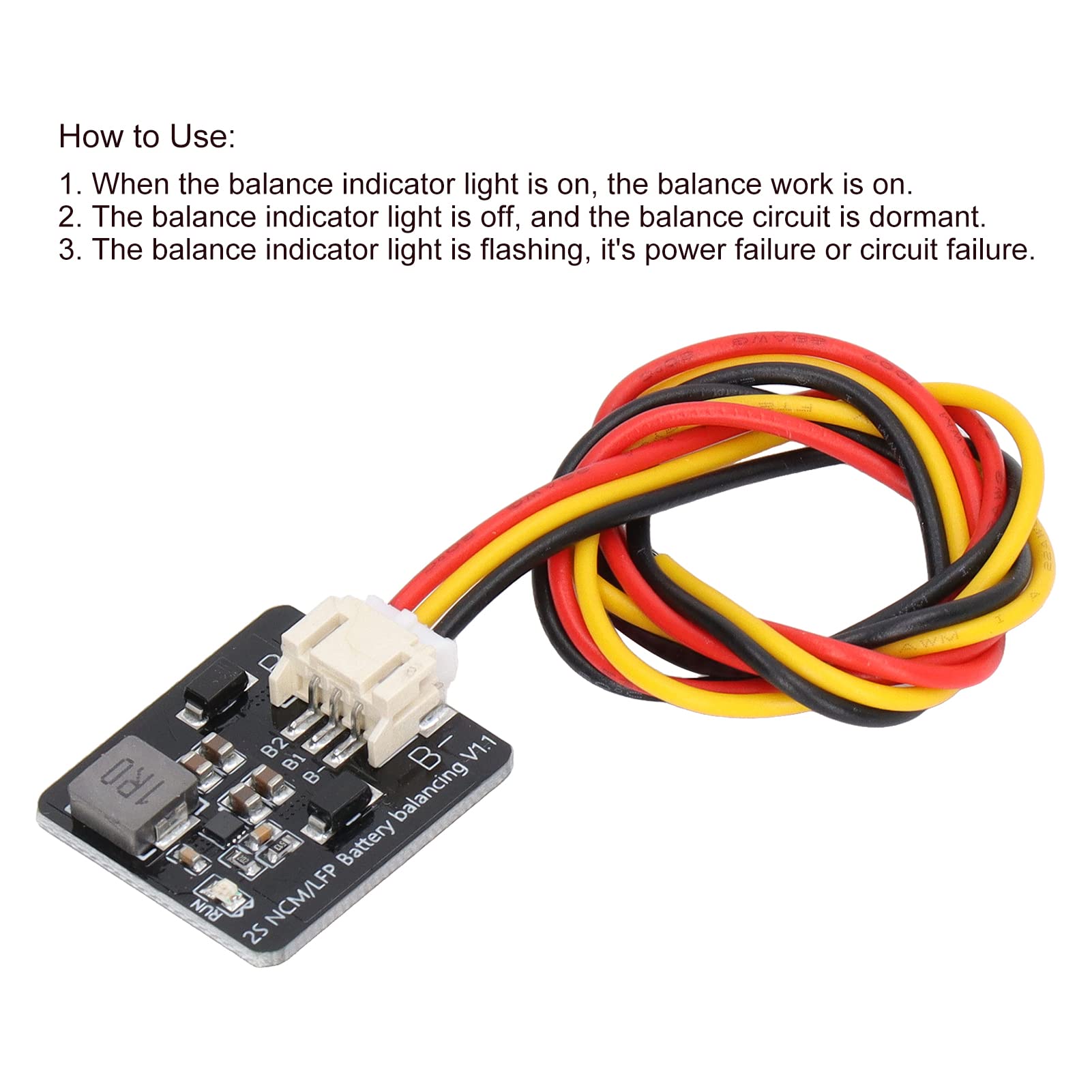

ItemName : 2S Active Equalizer, Universal Li Ion Cell Balancer Balance Board, Whole Group Balancer Li-ion Lipo LiFePO4 Lithium Active Battery Energy Transfer Equalization Capacitor
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 8 centimeters
ItemPackageDimensions_Width : 5 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : general-use-battery-chargers
Manufacturer : Tyenaza
Material : Lithium
ModelNumber : Tyenazab8nmsz9653-11
NumberOfItems : 1
OutputVoltage : 12 volts_of_direct_current
PartNumber : Tyenazab8nmsz9653-11
ProductDescription : Specification:
Item Type: Battery Active Equalizer
Applicable Battery: Li ion NCM, LFP.
Single Cell Voltage: 3.0-4.2V
Recommended Battery Capacity: Below 30AH
Voltage Balance Accuracy: 30mV between adjacent voltages, typical.
Equalization Method: It is detected that the voltage difference between adjacent batteries is greater than 0.1V to trigger the equalization, and the voltage difference between adjacent batteries is less than 0.03V to stop working.
Balance Current: 0.1V voltage difference and 0.5A balance current, when the voltage difference is above 0.2V, the maximum balance current is 1.2A.
Under voltage protection sleep voltage: The adjacent voltage difference is less than 0.03V and enter the sleep state.
Quiescent Operating Current: 0.01mA

Package List:1 x Battery Active Equalizer1 x Cable
Note:1. It is not recommended to be compatible with low strings, the indicator light will flash and report an error. Be sure to check that each cell is properly wired and insulated before connecting the balancing board. Otherwise it will short circuit and burn the board.2. If the battery is connected, it must be used with the BMS protection board. The charge and discharge voltage difference triggers the balance board to work to achieve energy transfer balance.
ProductSiteLaunchDate : 2023-01-30T01:52:57.105Z
Size : 2S
SpecificationMet1 : CE
SpecificationMet2 : CG
SpecificationMet3 : ABS
SupplierDeclaredDgHzRegulation : other
UnspscCode : 26111700
