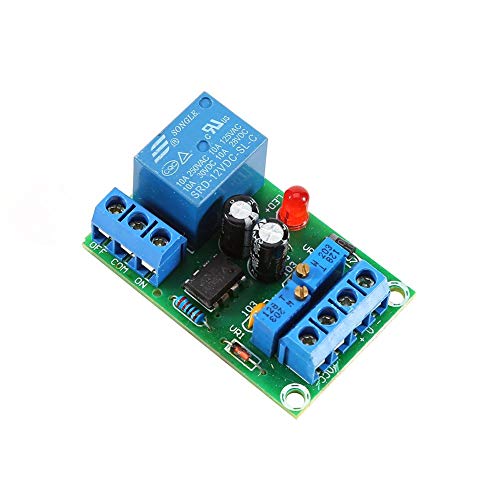

ItemName : 12V Battery Charging Controller Board Automatic Charging Stop Control Module
ItemPackageDimensions_Height : 9.8 centimeters
ItemPackageDimensions_Length : 2.8 centimeters
ItemPackageDimensions_Width : 6.5 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : automotive-battery-chargers
Manufacturer : Walfront
Material : Synthetic fiber base, organic resin
ModelName : Tire Repair Tools
ModelNumber : J29193W61OMUQUL1D218RYXZD
MountingType : Wall Mount
PartNumber : Walfronttzug73ok2r
PowerSourceType : Corded Electric
ProductDescription : Specifications:
Size of PCB: 50 x 32 x 18 mm
Default Value:
Low Voltage: 10.5 V
Shutoff Voltage: 14.8 V (adjustable, might be different)
Wiring Method: Please wire according to instruction. Do not change wiring.

Instruction:
Connect any wire of 220 V with the COM port of relay, and connect charger with OFF port.
The charger must be full bridge rectified output.
The DC output voltage can be between 13.8 and 14.8 V.
Charging test for the first time: battery voltage should be about 10 V.
Function 1: Current cannot be larger than 10 A.
Function 2: The board has reverse connect function. There is no output if no battery is connected. No output if the polarity of battery is wrong.
Output short circuit automatically shut down: It is a practical . As long as the output short circuit, the charger will automatically shut down output, so the charger from burning.
Adjustment:
VR1 relay disconnected to shutoff when battery charging voltage to 14.4 V. (shutoff voltage setting: clockwise lower, counterclockwise higher)
VR2 relay connected and began to when battery voltage is 10.5 V(low voltage setting: clockwise lower, counterclockwise higher)

Package includes:
1 x Charging Control Board

Note:
1. Users need electric knowledge to use this item, please make sure you know how to use it before you buy. Thanks for your understanding.
2. Please allow 1-3 mm error due to manual measurement. Thanks for your understanding.
3. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
