Specification
Brand : Fafeicy
BulletPoint1 : [Small Volume and Large Current] Compact design without compromising on power output
BulletPoint2 : [Accurate and Stable Voltage Shutoff] Safely and reliably shuts off when the battery is at the desired level
BulletPoint3 : [Assembled with Special Voltage Control Ic and Automotive Relay] Ensures precise and stable voltage control for efficient charging
BulletPoint4 : [Complete Functions] Offers comprehensive features for enhanced charging control
BulletPoint5 : [Automaticallyand Shut off] Conveniently charges the battery and protects against overcharging
BulletPoint6 : LED Charging Indicator
BulletPoint7 : Connectors: Color coded alligator clips
Color : popular
CompatibleDevices : SUNL E225S E325S
CompatiblePhoneModels : SUNL E225S E325S
ConnectivityTechnology : Powerline
ConnectorType : Barrel Plug
CurrentRating : 10 amps
ExternallyAssignedProductIdentifier : 9313419078609
IncludedComponents : No
InputVoltage : 250 volts

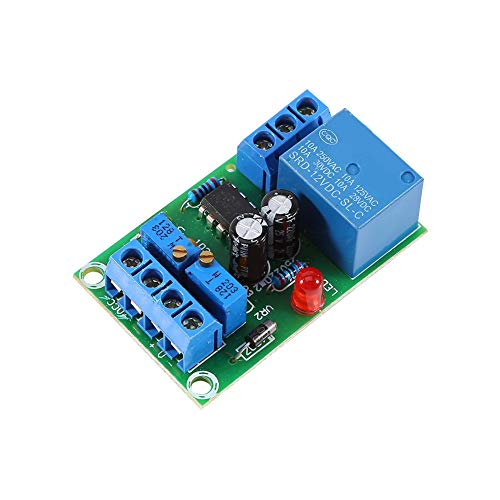

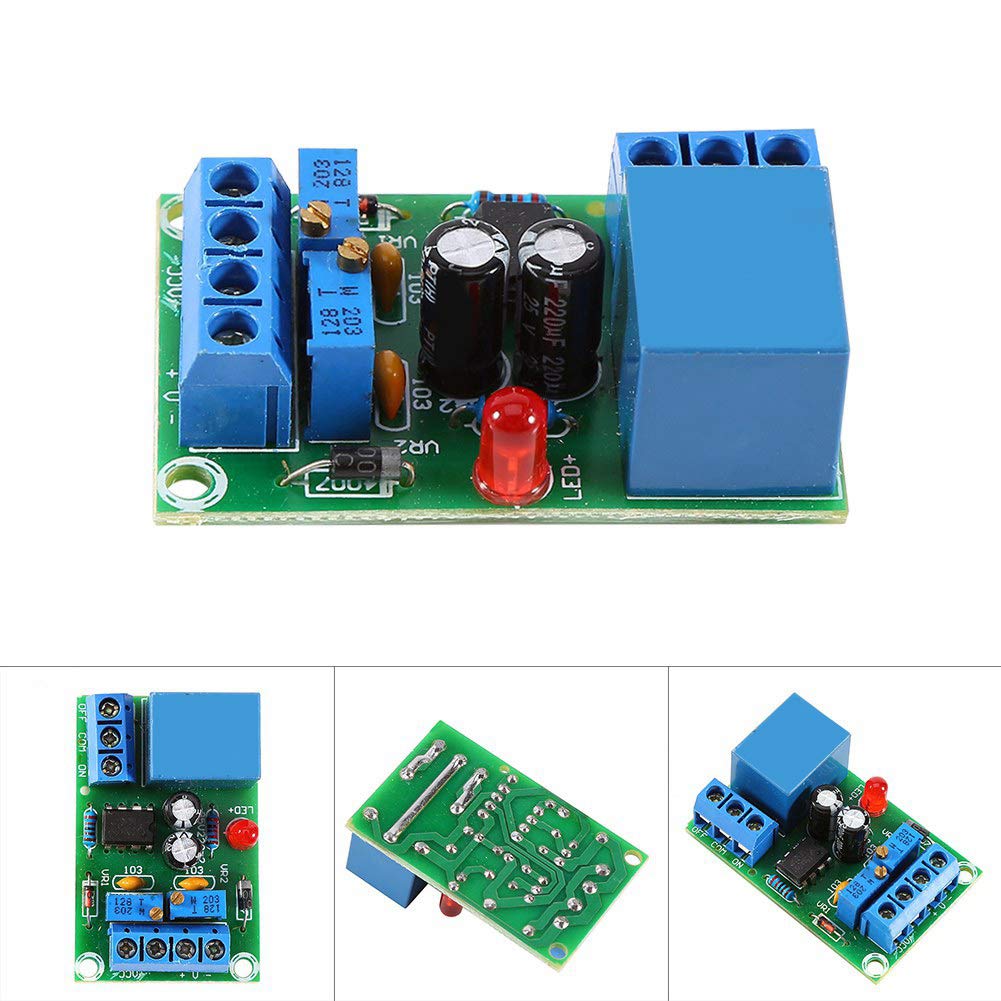

ItemName : 12V Battery Automatic Charging Controller ModuleRelay Board
ItemPackageDimensions_Height : 8.3 centimeters
ItemPackageDimensions_Length : 23 centimeters
ItemPackageDimensions_Width : 15.5 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : powersports-battery-chargers battery-chargers
Manufacturer : Fafeicy
Material : Copper
MaximumSwitchingCurrent : 10 amps
ModelName : Fafeicyoup1m0rx2k
ModelNumber : Fafeicyoup1m0rx2k
MountingType : PCB Mount
NumberOfItems : 1
OperationMode : Automatic
OutputVoltage : 24 volts
PartNumber : Fafeicyoup1m0rx2k
PowerSourceType : Corded Electric
ProductDescription : Specifications:

Size of PCB: 50 x 32 x 18 mm
Default Value:
Low Voltage: 10.5 V
Shutoff Voltage: 14.8 V (adjustable, might be different)
Wiring Method: Please wire according to instruction. Do not change wiring.
Instruction:
Connect any wire of 220 V with the COM port of relay, and connect with OFF port.
The must be full bridge rectified output.
The DC output voltage can be between 13.8 and 14.8 V.
Charging test for the first time: battery voltage should be about 10 V.
Function 1: Current cannot be larger than 10 A.
Function 2: The board has reverse connectfunction. There is no output if no battery is connected. No output if the polarity of battery is wrong.
Output short circuit automatically shut down: It is a practical . As long as the output short circuit, the will automatically shut down output, so protect the from burning.
Adjustment:
VR1 relay disconnected to shutoff when battery charging voltage to 14.4 V. (shutoff voltage setting: clockwise lower, counterclockwise higher)
VR2 relay connected and began towhen battery voltage is 10.5 V(low voltage setting: clockwise lower, counterclockwise higher)
Package includes:
1 x Charging Control Board
Note:
1, Users need electric knowledge to use this item, please make sure you know how to use it before you buy. Thanks for your understanding.
2, Please allow 1-3 mm error due to manual measurement. Thanks for your understanding.
3, Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
ProductSiteLaunchDate : 2024-01-15T07:50:03.395Z
Size : normal
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 26111729
WarrantyDescription : 1 year
