Specification
Brand : U.S. Solid
BulletPoint1 : 1. Conserving Space: The 3-way motorized ball valve is smaller in size compared to multiple one-way valves or other valve types, enabling space-saving in pipelines.
BulletPoint2 : 2. Fluid Control: The motorized ball valve is used to control the direction of fluid flow, featuring one inlet and two outlets or two inlets and one outlet. This configuration allows for diverting the fluid into different pathways to meet various process requirements.
BulletPoint3 : 3. Heavy Duty Construction: The ball valve is constructed from long-lasting brass, which ensures safety and reliability. With an estimated lifespan of at least 70,000 cycles, it is designed to endure and last.
BulletPoint4 : 4. Easy Installation: The 3-way brass motorized ball valve is user-friendly and straightforward to install. It includes a built-in capacitor return and 2-wire control with installed position feedback wires. The valve only needs a simple two-wire connection and is mostly de-energized once it's open. Water flows through the left port when power is applied, and it switches to the right port when power is disconnected.
BulletPoint5 : 5. Dependable Leak-Free Flow: This ball valve has been meticulously designed to ensure a secure and reliable flow, completely free from any leaks. It is rated for a maximum working pressure of 145 PSI and is specifically engineered for bidirectional use. This valve is an ideal choice for applications that involve handling contaminants and prolonged periods of inactivity.
Color : Brass
ExteriorFinish : Brass
ExternallyAssignedProductIdentifier1 : 888107104438
ExternallyAssignedProductIdentifier2 : 0888107104438

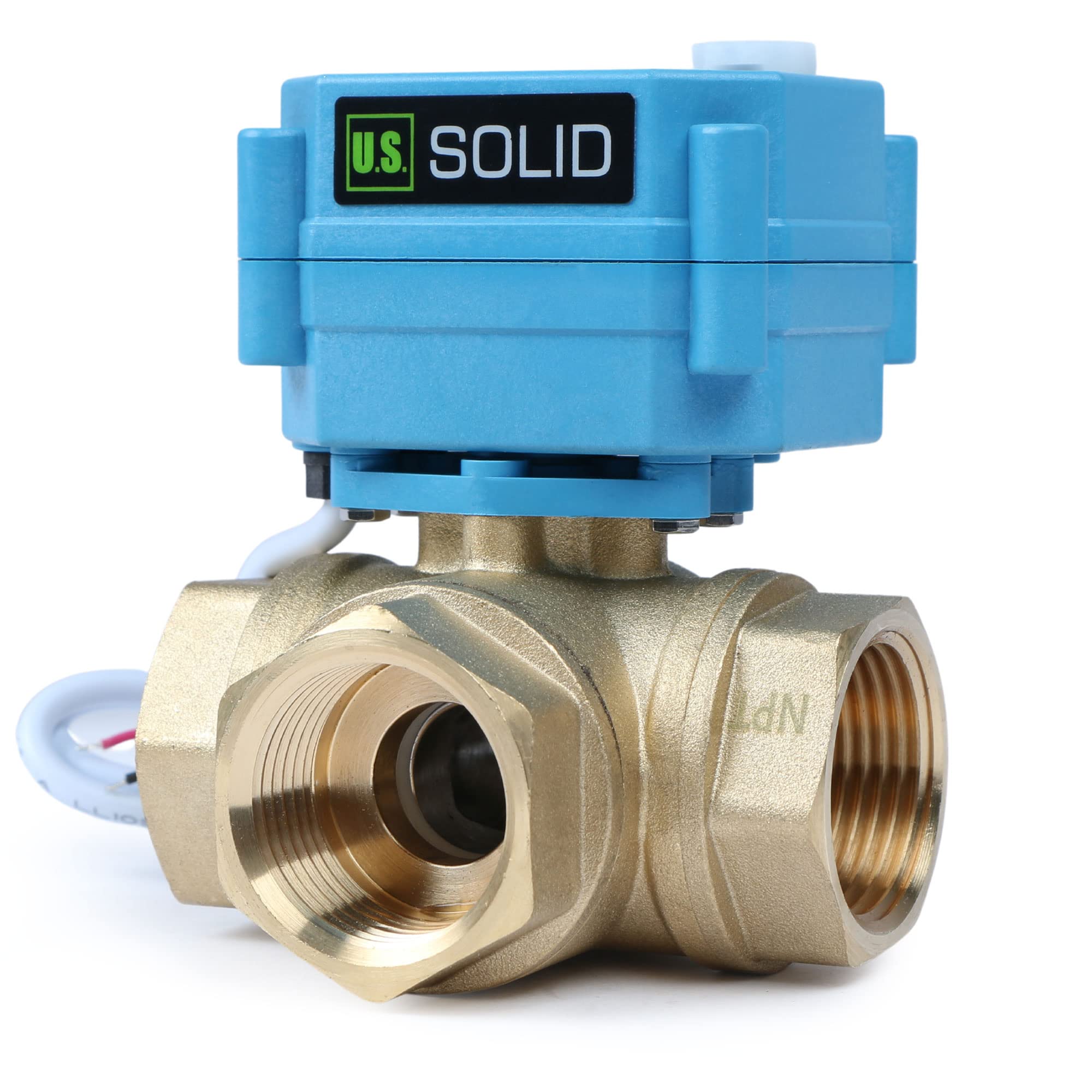

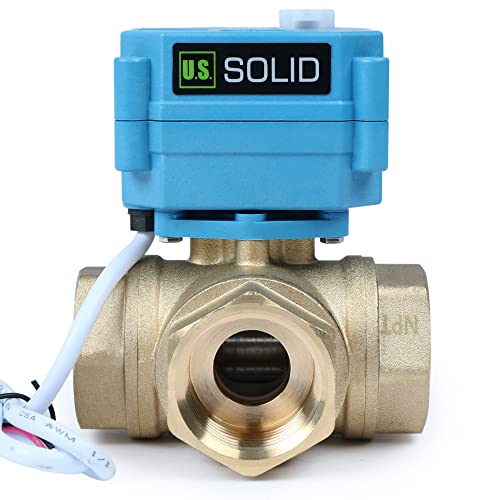

ItemName : U.S. Solid 3 Way 1" Motorized Ball Valve AC/DC9-24V - Heavy Duty Multipurpose L Type Non-Portable Water Shutoff Valve - 3 Way Valve with Manual Function, Standard Port
ItemPackageDimensions_Height : 14.3002 centimeters
ItemPackageDimensions_Length : 8.1026 centimeters
ItemPackageDimensions_Width : 9.0932 centimeters
ItemTypeKeyword : industrial-ball-valves
Manufacturer : U.S. Solid
Material : Brass
NumberOfItems : 1
NumberOfPorts : 3
ProductDescription : Ensuring that your control system fittings operate safely and effectively requires the use of high-quality accessories. Our trusted and well-established brand is dedicated to providing innovative and reasonably priced hydraulics, pneumatic, and plumbing solutions that make your job easier while maintaining safety and reliability. We use only high-grade materials from carefully selected suppliers to meet our customers' high standards for quality. If you are not completely satisfied with your purchase, please let us know, and our customer care department will promptly address any concerns.

This 3-way valve was designed to provide a user-friendly and long-lasting experience. It features a wide range of working voltage designs, built-in limit switches, 2-wire control, and a built-in capacitor return that maximizes current and water savings. Made of heavy-duty brass with an NPT female thread connection, this intelligent water shut-off valve is an excellent choice for HVAC, water treatment, automatic systems, and more!
Specifications
Model: USS-MSV10005
Valve Body Material: Brass
Port Size: 1''
Voltage: 9-24V AC/DC
Max. Torque: 3 N m
Open/Close Time: ~ 5 seconds
Max. Power: 5 W
Max. Pressure: 1.0 MPa
Flow Medium Temp. Rage: 0 to 90 ℃
Ambient Temp. Range: -15 ℃ to 50℃
Life Time: ≥70000 times
Actuator Material: PPO
O-ring: FKM
Sealing: PTFE
Manual Override: Yes
On/Off Indicator: Yes
IP Rating: IP 67
Bore Type: Standard Port

ProductSiteLaunchDate : 2023-03-09T08:30:45.530Z
Size : 1''
Style : DC9-24V
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 40141600
ValveType : Ball Valve
Voltage : 24 volts
