Specification
Brand : Gdrasuya10
BulletPoint : Reverse Osmosis pressure tank ball valve
BulletPoint1 : Valve Material: 304 stainless steel, connection method: clamp, interface: DN15.
BulletPoint2 : Features: large flow, long life, maintenance-free, and reliable.
BulletPoint3 : Installation: Install as required, preferably with the actuator facing upwards.
BulletPoint4 : Applicable Medium: water, neutral gas or liquid, alcohol, oil, organic solvent, water vapor, weak acid or weak base solution.
BulletPoint5 : Widely Used In: beer and beverage filling equipment machinery, textile printing and dyeing or bleaching, gas industry pharmaceutical and medical equipment, high-temperature sterilization and disinfection in the pharmaceutical and chemical industries; foaming machinery, foaming equipment; water pollution treatment.
Color : White
ConnectorType : Threaded
ExteriorFinish : Plastic,Stainless Steel
ExternallyAssignedProductIdentifier1 : 615264231697
ExternallyAssignedProductIdentifier2 : 0615264231697
IncludedComponents : Ball Valve

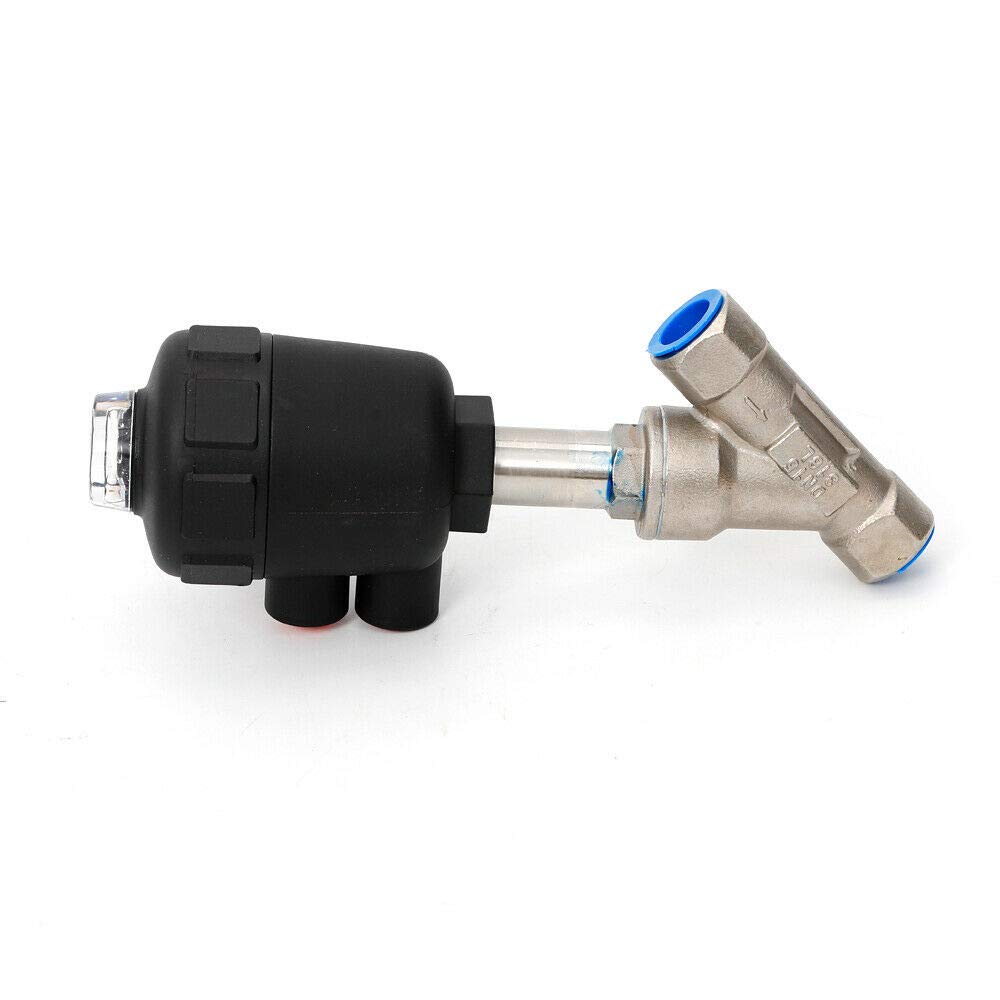

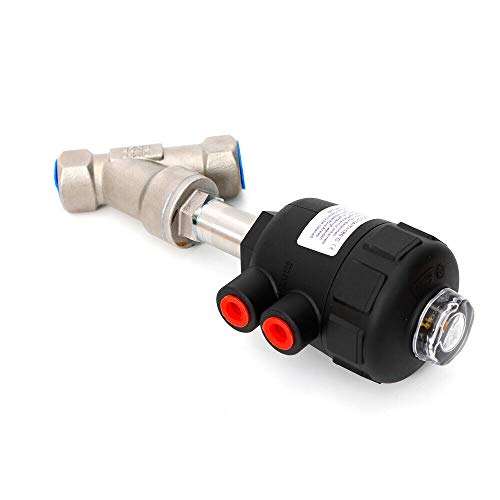

ItemName : 1/2" DN15 Pneumatic Angle Seat Valve Stainless Steel BSPP N/C PN25
ItemPackageDimensions_Height : 20.5 centimeters
ItemPackageDimensions_Length : 7.8 centimeters
ItemPackageDimensions_Width : 14.4 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-ball-valves
Manufacturer : Ligavender
Material : Stainless Steel
ModelName : Reverse Osmosis Pressure Tank Ball Valve
ModelNumber : C-a21Ra27-15
NumberOfItems : 1
NumberOfPieces : 1
NumberOfPorts : 2
PartNumber : C-a21Ra27-15
Pattern : 15pcs valve
ProductDescription :

Specification:

Interface: DN15

Control pressure: 0.3Mpa-1Mpa

Body material: 304 stainless steel

Pneumatic form: plastic head

Spool seal: PTFE

Stem seal: PTFE/FKM

Piston seal: FKM/NBR

Applicable medium: water, neutral gas or liquid, alcohol, oil, organic solvent, water vapor, weak acid or weak alkali solution

Medium temperature: PTFE: -10 ° C - +180 ° C

Ambient temperature: -10 °C - +60 °C

Viscosity: up to 600MM2/s

Control medium: air/neutral gas

Control pressure range: 0.3-1MPA

Installation: Install as needed, preferably with the actuator facing up

Features: large flow, long life, maintenance free, reliable

Widely used in: beer beverage filling equipment machinery, textile printing or bleaching, gas industry pharmaceutical and

medical equipment, pharmacy, chemical industry high temperature sterilization, disinfection; foaming machinery, foaming

equipment; water pollution treatment.

Installation and removal:

1. Connect the valve to the pipe to ensure that it is in the same direction as the flow and attached to the body (the outside of the

body represents the direction of fluid flow, according to the installation);

2. Please remove the actuator when welding installation;

3. Threaded or flanged: correct installation;

4. Disassembly: Ensure that the pressure has been removed before disassembling the valve; carefully disassemble and properly store the thread and sealing material after removal.

5. The torque required for the connection of the valve and the pipeline is large enough. The torque value of the torque is as follows: DN15 to 40Nm

6. Ensure that the pipeline and no residual interface when installing.

7. Make sure there are no leaks before use.

Package Included:

1*DN15 Angle Seat Valve



ProductSiteLaunchDate : 2021-09-06T08:52:47.045Z
Style : Minimalist
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 40141600
ValveType : angle,valve
