Specification
Brand : Omabeta
BulletPoint1 : Package Dimensions: 6.35 cms (L) x 6.35 cms (W) x 1.016 cms (H)
BulletPoint2 : Product Type: Bearings And Bushings
BulletPoint3 : Package Quantity: 1
BulletPoint4 : Country Of Origin: Taiwan
BulletPoint5 : Double nut ball screw model includes DFU1604, DFU1605, DFU2005, DFU2505, DFU2510, DFU3205, DFU3210, DFU4005, DFU4010, DFU5010, DFU6310, DFU8010; Ball screw nut, nut housing, coupling, ball screw support BK, BF, EK, EF, FK, FF and end machining service are available, please let us know
ExternallyAssignedProductIdentifier1 : 750886197591
ExternallyAssignedProductIdentifier2 : 0750886197591
ExternallyAssignedProductIdentifier3 : 00750886197591

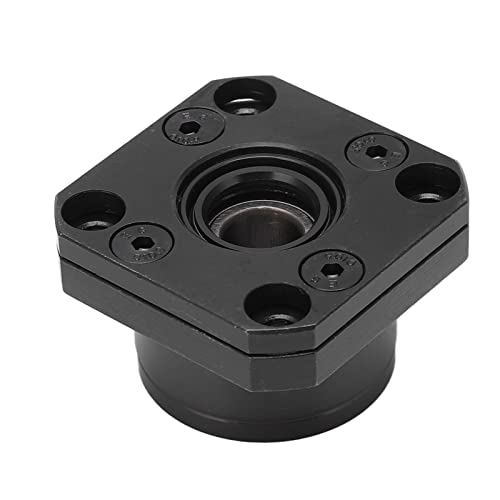

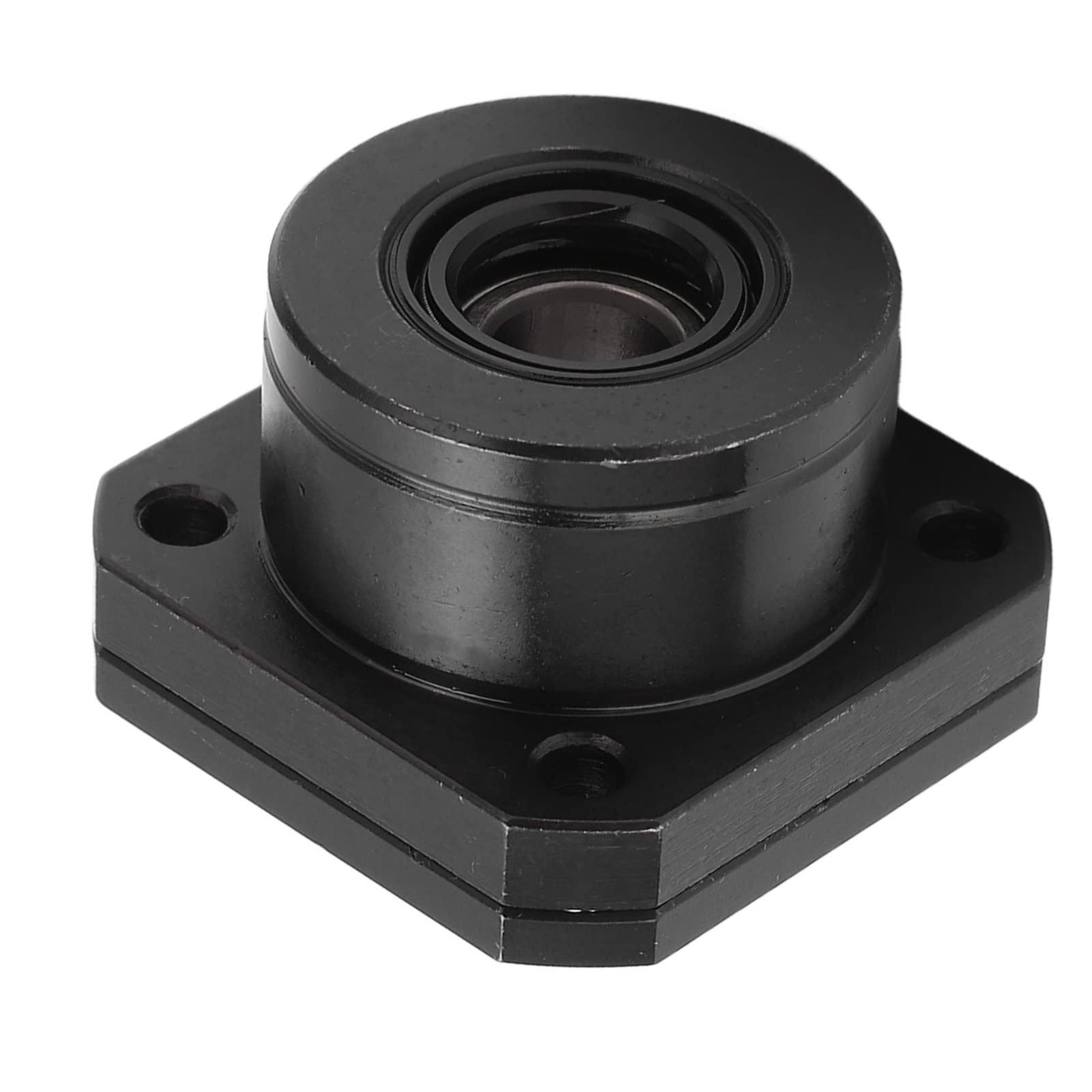

ItemName : Ball Screw Bearing Block, Ball Screw Support FK10 Carbon Steel Stable for Robot
ItemPackageDimensions_Height : 29.8 centimeters
ItemPackageDimensions_Length : 6.1 centimeters
ItemPackageDimensions_Width : 17.8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ball-screws
Manufacturer : Omabeta
Material : Carbon Steel
Material1 : NBR(Buna Rubber)
Material2 : Carbon Steel
ModelNumber : 10142TB-H-BX
NumberOfItems : 1
PartNumber : Omabetaqpxvukmw1e3665
ProductDescription : Specifications:
Brand: Mssoomm
Manufacturing Process: Rolled Thread
Precision: C7 Grade, C5 (Grinding grade) is also available, please message us
Material: GCr15 steel
Model: DFU2005
This item includes:
1pcs Ball Screw DFU2005 RM2005 20mm Length 23.62 inch / 600mm (with standard end machining for BK/BF15)
1pcs Double Ballscrew Nut
1Pcs BK15/BF15 End Supports, and Motor Bracket for Nema 23 stepper motor which integrated with BK with locknuts and circlips( The bearings in the BK bearing block support are deep groove ball bearings, if you need angular contact bearings, please tell us, which has a higher price )
1Pcs Flexible Coupler ( The standard bore diameter of the coupler which matches the motor shaft is 8mm, if your motor shaft is other size, pls tell us )
1Pcs Nut Housing
Lead Time: 7-10 Business Days except for for Chinese National Day holiday and Spring Festival

Customizable Processing and Technical Support:
1. We can provide any length that you want.
2. If you need end machining according to your drawings, please tell us

Introduction and Application:
Double ball nut designs produce preload in one of two ways: through tension between two single nuts, or through an offset in the lead of a single nut.
1. The first method uses a spring or a spacer to create tension between two nuts that are mechanically coupled.
During machining of the ball nut raceways, an offset is created in the lead, approximately halfway down the length of the nut body. This lead offset creates preload within the ball nut.
Because there are no spacers or springs required, the lead offset method is more compact than a double nut design, but it reduces load capacity. With greater complexity and higher cost, double nut designs are typically used when high preload (7 percent or greater) is required.
ProductSiteLaunchDate : 2022-08-13T22:00:15.103Z
Size : L: 23.62 in / 600mm
Style : DFU 2005 for Nema 23
UnitCount : 1
