Brand : Generic
BulletPoint : DC 8-24V 30W x 2 Class D Dual Channel High Power Stereo Digital Amplifier Board With Adjustable Volume Potentiometer
ItemName : DC 8-24V 30W x 2 Class D Dual Channel High Power Stereo Digital Amplifier Board with Adjustable Volume Potentiometer
ItemTypeKeyword : electronic-component-audio-amplifiers
Manufacturer : Generic
Material : Copper
MountingType : Surface Mount
NumberOfChannels : 2
PartNumber : Lile_HFN_2287
ProductDescription :
Descriptions:

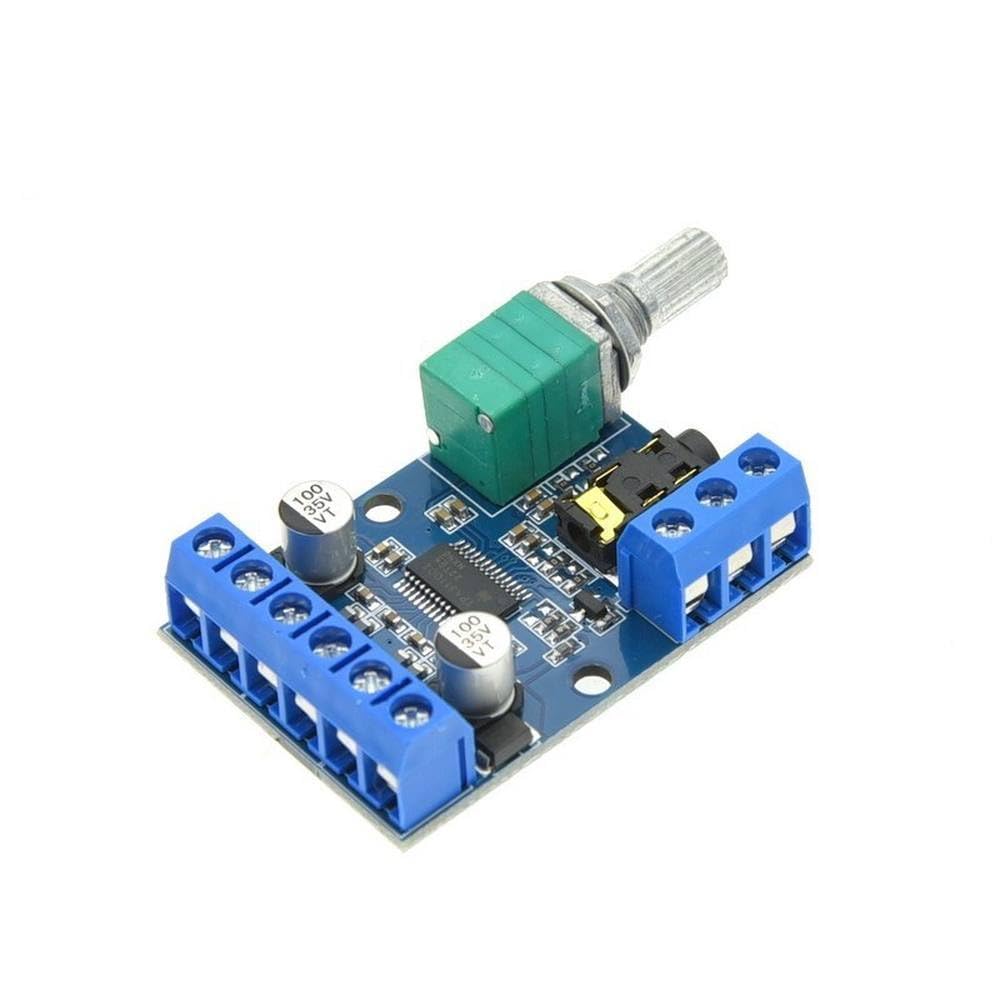

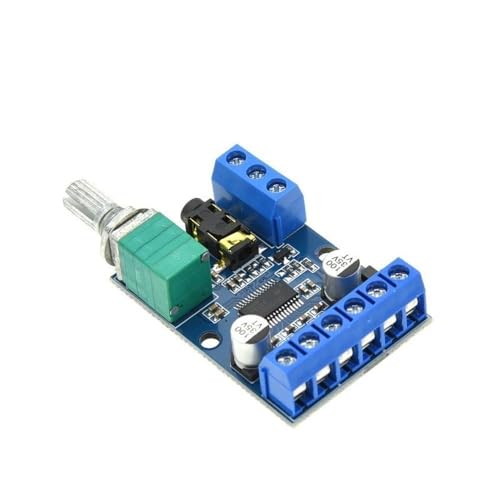

DY-AP3015 is a high-power stereo audio module.Dual channels audio signal output.Built-in amplifier module therefore it can connect to loudspeaker directly.It is ideal for DIY speakers and transponders.


Features:


1.Width work voltage range

2.Applicable multiple type speakers

3.Knob adjustment

4.Support reverse connection protection

5.Support short circuit protection

6.Self-recovery overheat protection

Parameters:

1.Product name:DY-AP3015 Stereo Power Amplifier Module

2.Model:DY-AP3015

3.Work Voltage:DC 8V-24V

4.Work Mode:Class D(PWM)

5.Channel:Dual channel

6.Output Power:

6.1. Output power 18W*2 at 12V 4ohm

6.2. Output power 10W*2 at 12V 8ohm

6.3. Output power 15W*2 at 16V 8ohm

6.4. Output power 20W*2 at 20V 8ohm

6.5. Output power 30W*2 at 24V 8ohm(Need add extra heat sink!)

7.Match speaker(30W~150W):

7.1. 4ohm at 8V~12V

7.2. 8ohm at 8V~24V

8.Work Temperature:-40℃~85℃

9.Work Humidity:0%~95%RH

10.Module Size:59*32*14mm

Use steps:

1.Choose the right speaker and connect as shown in wiring diagram.

2.Connect to right power supply from input terminal.

3.Connect audio signal from 3.5mm socket or blue terminal.

4.Test and use.

Application:

1.Modified speaker

2.Amplifier equipment

3.Repair replacement


Notes:


1.The power amplifier board should be as far away as possible from the WIFI signal (router) avoid signal interference.

2.Recommended power supply voltage DC 8~24V.Module will be damaged if input voltage is more than 26V.

3.Input voltage can not more than 12V if connect 4ohm speaker.

4.Input voltage can not more than 24V if connect 8ohm speaker.

5.It is recommended to use
