Brand : Midzoo

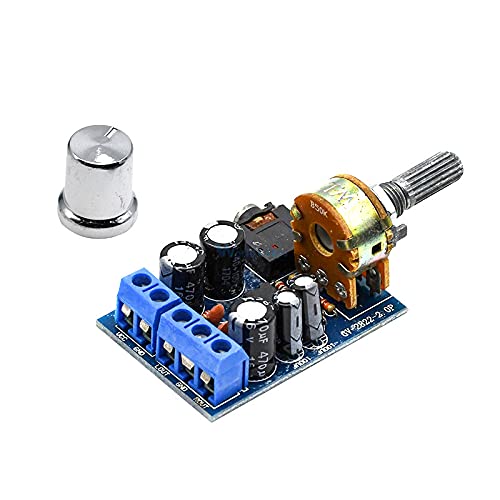

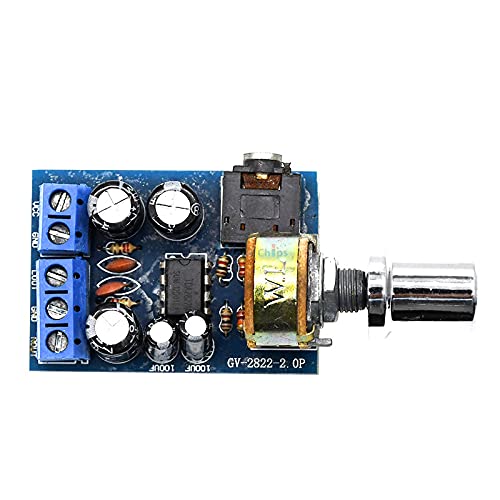

BulletPoint : DC 1.8 -12V TDA2822M Audio Amplifier Module 2 * 1W Dual Channel Stereo Audio Power Amplifier Board with Potentiometer Switch
ExternallyAssignedProductIdentifier : 4862440119980
ItemName : DC 1.8-12V TDA2822M Audio Amplifier Module 2 1W Dual Channel Stereo Audio Power Amplifier Board with Potentiometer Switch
ItemTypeKeyword : electronic-component-audio-amplifiers
Manufacturer : Midzoo
Material : iron
MountingType : Surface Mount
NumberOfChannels : 2
PartNumber : MiMODULE-12656
ProductDescription :
Features:
This board features:
adopts original TDA2822M power amplifier chip, it has many advantages such as small static current, crossover distortion characteristics.Suitable for portable, miniature tape recorder, computer audio power amplifier.In the era of portable tape recorders, almost 85% are TDA2822M amplifier chip.
Amplifier with the volume control potentiometer, convenient for the user to adjust the volume size, at the same time Presented a cap quality knob.
The audio all adopt the wiring seat, users do not need to use soldering iron, as long as a small screwdriver can easy wiring.
circuit boards have a Screwdriver screw terminal and do not need to use the soldering iron can fast connection, even if you don't have any basis for buyers, see the wiring diagram is also very easily, DIY power amplifier so simple.
Directions for use:
1. Connect speakers
The speaker two thread ends at the end of the line is connected to
the amplifier board audio output port, left sound channel the positive
line connect power amplifier board LOUT port, the cathode connect
to GND.
Right track the positive line power amplifier board the ROUT of port,
the cathode connect to GND.
2. Connect audio source
Use a 2 core audio line, connected to the amplifier board of 3 p audio
input, connect the other side of the audio line plug to sound source
(such as computers, mobile phones, MP3, DVD, etc.)
3. Connect the power supply
Use 1.8-12 v dc output of the power adapter/battery/charging etc
all can treasure.Will two dc power cord is connected to the amplifier
board
2 p power source port, the positive line to VCC, negative to GND,
the connection is important to make clear is negative, not blindly wiring,
if meet the could
seize power amplifier board.
4. Play music
Put through power supply, amplifier board into working state;You can the
befond of according to oneself
ProductSiteLaunchDate : 2021-06-27T16:34:29.214Z
UnspscCode : 52161547
Voltage : 12 volts
