Specification
Brand : Generic
BulletPoint : BS-280 232 GPS Receiver Module 1PPS Timing With Flash + GPS Antenna
BulletPoint1 : Frequency: GPS 1575.42MHz ±3 MHz; LNA Gain: 20dB; Power Supply DC Current: 20mA Max.
BulletPoint2 : Cable ength: 1.5m; Connector: Fakra-C blue GPS Antenna, space-efficient, easy to tighten the plug, and get the cable smoothly.
BulletPoint3 : Features: compact construction/ low profile, fully waterproof, excellent temperature stability, low noise figure.
BulletPoint4 : Easy installation: adhesive base which can adhere to any surface, 1.5m extension cable allows you placing the antenna properly.
BulletPoint5 : Compatibility: Compatible with vehicle real time tracking mobile DVR video recorder; bus truck RV van alarm system; vehicle amateur radio mobile radio.
Color : Black
ConnectivityTechnology : Serial Port
ControlMethod : touch
ExternallyAssignedProductIdentifier1 : 0736309188384
ExternallyAssignedProductIdentifier2 : 736309188384
HumanInterfaceInput : buttons
Impedance : 50 ohm
IncludedComponents : GPS Module, Cable

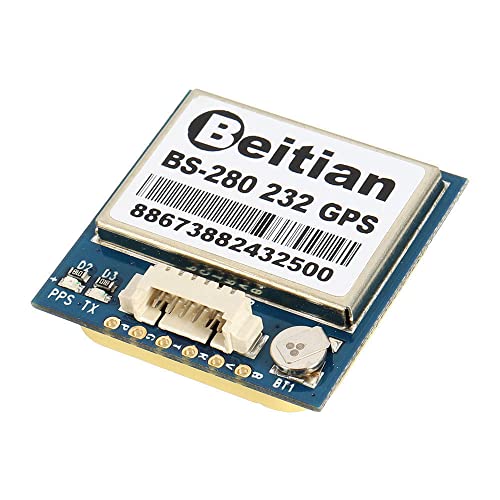

ItemName : Generic BS-280 232 GPS Receiver Module 1PPS Timing + GPS Antenna
ItemPackageDimensions_Height : 16 centimeters
ItemPackageDimensions_Length : 20 centimeters
ItemPackageDimensions_Width : 20 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : gps-antennas
Manufacturer : Generic
MapType : Worldwide
ModelNumber : Full band GPS antenna
MountingType : Panel Mount
NumberOfChannels : 1
NumberOfItems : 1
PartNumber : SCDJ_UYN_10601
ProductDescription : Description:
232 level output, 9600, 1HZ output, standard NMEA-0183 protocol output.


ParameterDescription
Chip characteristics
ChipU-blox U7Receiving modeGPS, QZSS, WAAS, SBAS, EGNOS, MSASFrequencyGPSL1, SBAS L1Channel56 search channels
SensitivityTrack-162dBmRecapture-160dBmCold start-148dBm
PrecisionHorizontal accuracy2.0 m CEP 2D RMS SBAS assist (open space)Speed accuracy0.1m/s 95% (SA off)Time accuracy1us
Start TimeCold start29sWarm start25sHot Start1s
Output DataBaud rate4800bps-921600bps,default 9600bpsOutput levelTTL or RS232, default RS-232 levelOutput protocolDefault NMEA-0183 protocolStandard GNSS1Hz-10Hz, default 1Hz
Work limitHeight50,000m maximumSpeed515m/s maximumGravity acceleration4g maximumPower consumptionVoltageDC 3.6V-5.5V, typical: 5.0VCurrentNormal 45mA 5.0V
Physical parameterSize28mm*28mm*8mmWeight11.5 gramsLine length2mConnector1.25 pitch 6pin socketSurroundingsOperating temperature-40 °C ~ +85 °Cstorage temperature-40°C ~ +85°CIndicator lightTX lightPower-on blue light flashes to indicate that there is data output.PPS lightThe light is not lit when it is not positioned. After 3D positioning, it starts to blink.
The pins of the module are:
1.PPS, there is a second pulse output after positioning, the pulse period is 1s, and the high level lasts for 100ms, which is used for system synchronization.
2. GND, ground.
3.TX, the data output of the module.
4.RX, the data input of the module.
5.VCC, 3.6-5.5V, recommended 5.0V.
6. BOOT, please hang out during normal work.
Package included:
1 x BS-280 232 GPS Receiver Module
1 x cable
ProductSiteLaunchDate : 2023-05-06T13:04:52.794Z
Size : one size
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 25173107
Voltage : 12 volts
WarrantyDescription : 1 year warranty
Wattage : 10 watts
