Specification
AgeRangeDescription : adult
Brand : BARRINS
BulletPoint1 : 【Product Function】: Main functions include electrical isolation, EMI suppression, device protection, line matching and amplification, and address expansion.
BulletPoint2 : 【Excellent performance】: Signal isolator with good low temperature resistance, superior insulation, moisture, leakage, shock, corrosion, anti-aging and other properties
BulletPoint3 : 【Product features】: good resistance to high and low temperatures, insulation and shockproof performance, not easy to moisture, the use of safe and other characteristics
BulletPoint4 : 【Application scope】: Widely used in industrial equipment, such as large motors, medical equipment, computer servers, power grid equipment.
BulletPoint5 : 【Easy to install】: Installation does not take up space, strong versatility
Color : 1 Input 3 Output
ExternallyAssignedProductIdentifier : 6912149318851
ItemName : Signal Isolator 0-20mA DC Analog Signal Isolator 4-20mA 0-10V 0-5V 1-5V Signal Converter 1 In 1 Out 1 In 2 Out 2 In 2 Out Signal Transmitter(1 input 3 output,4-20MA INPUT_DC24V POWER SUPPLY_0-20MA OUT
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : analog-to-digital-converters
Manufacturer : BARRINS
ModelName : BARRINS
ModelNumber : BARRINS
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : BARRINS
ProductDescription : Introduction:

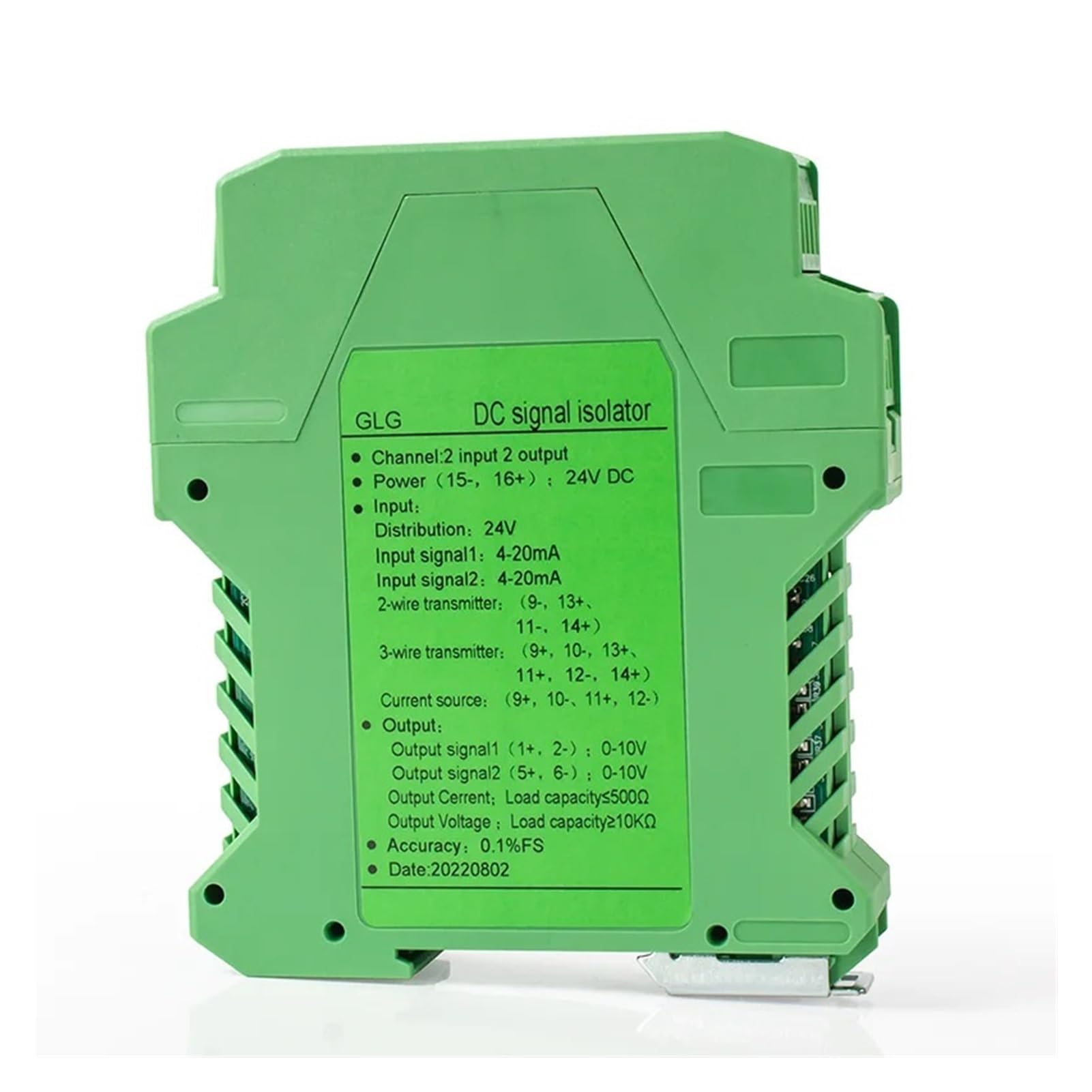

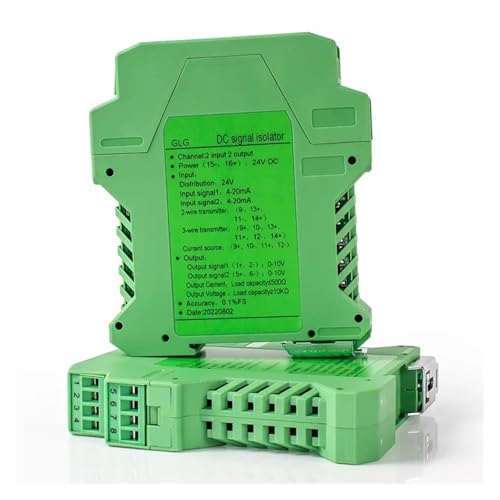

<;1>.GLGsignal isolator provides isolated power distribution power supply for transmitter, meanwhile it isolates and converts the current signal to control room,PLC and DCS etc.
<;2>.Input terminal is in common use for current source,2-wires and 3-wires. The input, output and power are isolated from each other by adopting highly efficient magnetoelectric isolation technology interiorly.
<;3>. DC 24V or AC 220V power supply.Standard 35mm DIN rail independent mounting.
<;4>. GLGhas 6 type channels, 1 in/1 out, 1 in/2 out, 1 in/3 out, 1 in/4 out, 2 in/2 out, 2 in/4 out, input and output signal can be customized.
FEATURES:
High accuracy
Highlinearity
Standard 35mm DIN Rail Installtion, strong versatility
Strong anti-interference
Parameters can be customize
Technical parameters:
Power Supply
Power Supply
DC24V,±10% or AC85-265V
Current Consumption
50mA(1 in 1 out,24V power supply, output 20mA);
70mA(1 in 2 out,24V power supply, output 20mA);
100mA(2 in 2 out,24V power supply, output 20mA);
Input
Input Signal
4-20mA;0-20mA;0-10mA;0-5V;0-10V;1-5V;customized
Input Burdern
Current transformer CT0.2VA
Input Impedance
50
Output
Output Signal
4-20mA;0-20mA;0-10mA;0-5V;0-10V;1-5V;customized
Output Load Resistance
RL500(output current signal);
RL10K(output voltage signal);
Output Ripple
0.5%RO
Other Parameters
Accuracy
DC;±0.1%F.S.
Respond Time
<;10ms
Temperature Drift
0.005%F.S./ (-20~+55)
Isolation intensity
1500V AC/1min(between input-ouput-power)
Insulation resistance
100M(between input-ouput-power)
Overload capacity
withstand double rating(continous),10 times rating(10s)
Working Temperature & Humidity
<;80%humidity(non condensing state)
Storage Temperature & Humidity
<;70%humidity(non condensing state)
Size:
Dimensio
ProductSiteLaunchDate : 2025-03-04T06:10:02.147Z
Size : 4-20MA INPUT_DC24V POWER SUPPLY_0-20MA OUTPUT
UnitCount : 1
UnspscCode : 52140000
