Specification
Brand : ANKROYU
BulletPoint1 : 【High Data Output Rate】This high accuracy data acquisition card boasts a remarkable data output rate of up to 30ksps, enabling fast and efficient data transfer for enhanced practicality and real-time monitoring capabilities
BulletPoint2 : 【Analog-to-Digital Conversion】Equipped with an ADC module, this electronic component module excels in converting continuous analog signales into discrete digital signales, ensuring precise and reliable data processing with high accuracy
BulletPoint3 : 【Analog Voltage Measurement】Designed for measuring analog voltages within a 3V range, the accuracy data acquisition device offers exceptional accuracy with a minimal non-linearity of ±0.0010%, guaranteeing precise voltage readings for various applications
BulletPoint4 : 【Flexible Input Configuration】The high accuracy electronic module provides versatile input options, allowing users to configure it as either 8 single-ended inputs or 4 differential inputs based on specific requirements, ensuring adaptability to diverse measurement scenarios
BulletPoint5 : 【Construction】Constructed with premium PCB materials and an advanced ADC chip, the signales acquisition module delivers high levels of accuracy and performance, promising reliable operation and optimal data acquisition capabilities
FinishType : Finish
IncludedComponents : inc
ItemName : ANKROYU Data Acquisition Module, 8‑Channel Data Acquisition Module, 24‑Bit Data Acquisition Module, Data Acquisition Card Electronic Component for Conversion
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 9 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : analog-to-digital-converters
Manufacturer : ANKROYU
Material : Material
ModelName : Narooteaedv5ftqgg
ModelNumber : Garosay3nv8a0qg2
NumberOfItems : 1
PartNumber : ANKROYUe5x2tuk8dh
PowerSourceType : PowerSource
ProductDescription : Specification:

Item Type:Data Acquisition Module
Overview:

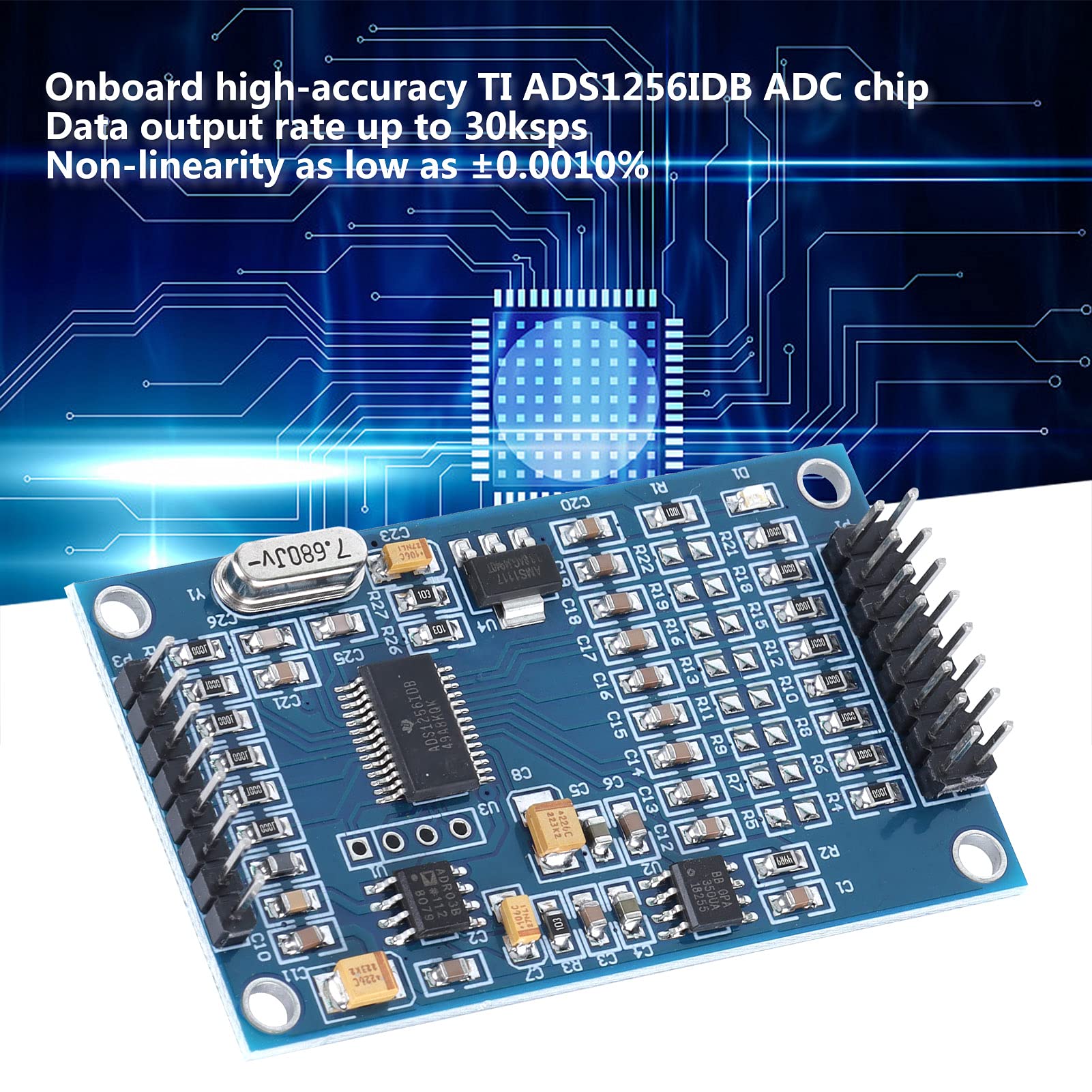

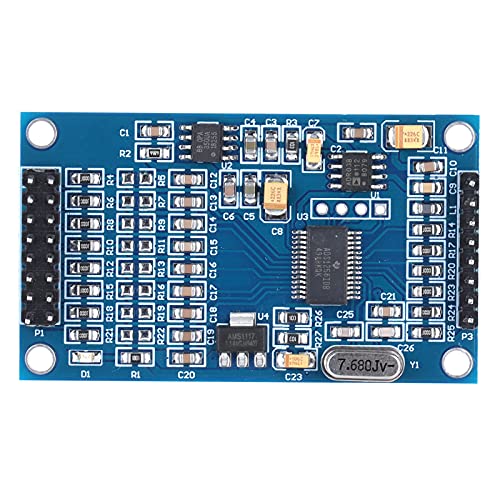

ADS1256 8-Channel 24-Bit ADC Module Equipped with TI ADS 1256IDB, Low Power Consumption, High-Accuracy ADC Chip And 2.5V Reference Voltage Source, Using SPI Interface Communication Protocol, Data Output Rate up to 30ksps, Support
Single-Ended Input and Differential Input
Interface Description:
5V, GND: 5V Power Input
SCLK, DIN, DOUT, CS: SPI Communication Interface
DRDY: ADS1256 Data in Order Output (Active Low)
PDWN: ADS1256 Sync/Turn Off The Power Input (Active Low)
AIN0-AIN7: Analog Voltage Input, Configurable as 8 Single-Ended Inputs or 4 Differential Input Values,
(The Measured Voltage Should be Shared with The Module) The Third Group is The Difference Between AIN2-AIN3, Which are 2.5V, 2.5V, 0V, and 2.5V for The Four Groups


Package List:1 x Module
Note:Since the voltage of ADS1256 is 5V, the measured voltage should be lower than the power supply voltage 2V, so this module is only suitable for measuring analog voltages within 3V.
ProductSiteLaunchDate : 2024-03-22T02:42:23.257Z
UnitCount : 1
