Specification
AgeRangeDescription : Adult
Brand : Auinshifiman
BulletPoint1 : 【Balanced Discrete Class A Amplifier】The preamplifier stage of the Gustard H26 uses two LM49720 ultra-low distortion, ultra-low noise dual OPAs. These OPAs are designed for audiophile and professional applications. The preamp output can be turned off to quickly switch between headphones and speakers. The purpose of the H26
BulletPoint2 : 【Power Supply of Two 50W Toroidal Transformers】Balanced Headphone Amplifier customizes two 50W audio-specific toroidal transformers, one for each left and right channel, which do not interfere with each other, and is matched with 4 Nikon nichicon capacitors for main filtering. The components are rigorously designed, the layout is reasonable, and the workmanship is neat, providing a clean and stable power supply for the H26.
BulletPoint3 : 【Balanced Input Structure】The Class A Headphone Amp input stage adopts a fully balanced architecture, a single-ended to balanced circuit, so that the single-ended RCA input can also enjoy the effect of fully balanced driving, providing richness and clarity for the sound, and enjoying the best music effect.
BulletPoint4 : 【2 LME49720 Operational Amplifiers】The preamplifier contains two directly integrated LME49720 dual operational amplifiers. Both the headphone amp power and preamp output can be switched independently for seamless switching.
BulletPoint5 : 【2-Gain fully Discrete Balanced Headphone Amplifier】H26 has 2 gain options, enough to cover a wide range of headphones: low gain to drive IEMs with high sensitivity, high gain to drive full-size over-ear headphones. Fully discrete balanced headphone amplifier: Discrete devices are more flexible, allowing the parameters of each stage to be freely adjusted for optimal operation.
Color : Black
ControlMethod : voice
IncludedComponents : Remote Controller

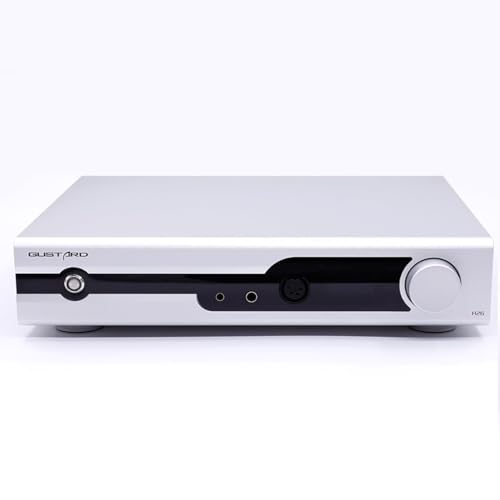

ItemName : Gustard H26 Fully Balanced Class A Headphone Amplifier LME49720 x2 Op-Amps Discrete Pre-Amplifier 6.35mm/4.4mm Balanced/4-Pin-XLR Headphone/Stereo RCA Output Headphone Amp (Black)
ItemPackageDimensions_Height : 6 centimeters
ItemPackageDimensions_Length : 17 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : headphone-amps
Manufacturer : Gustard
ModelName : SPYMINNPOOu5afw801i7
ModelNumber : H26
NumberOfItems : 1
PartNumber : H26
Pattern : Solid
ProductDescription : roduct type：Preamplifier / Headphone amplifier
OPA：LME49720

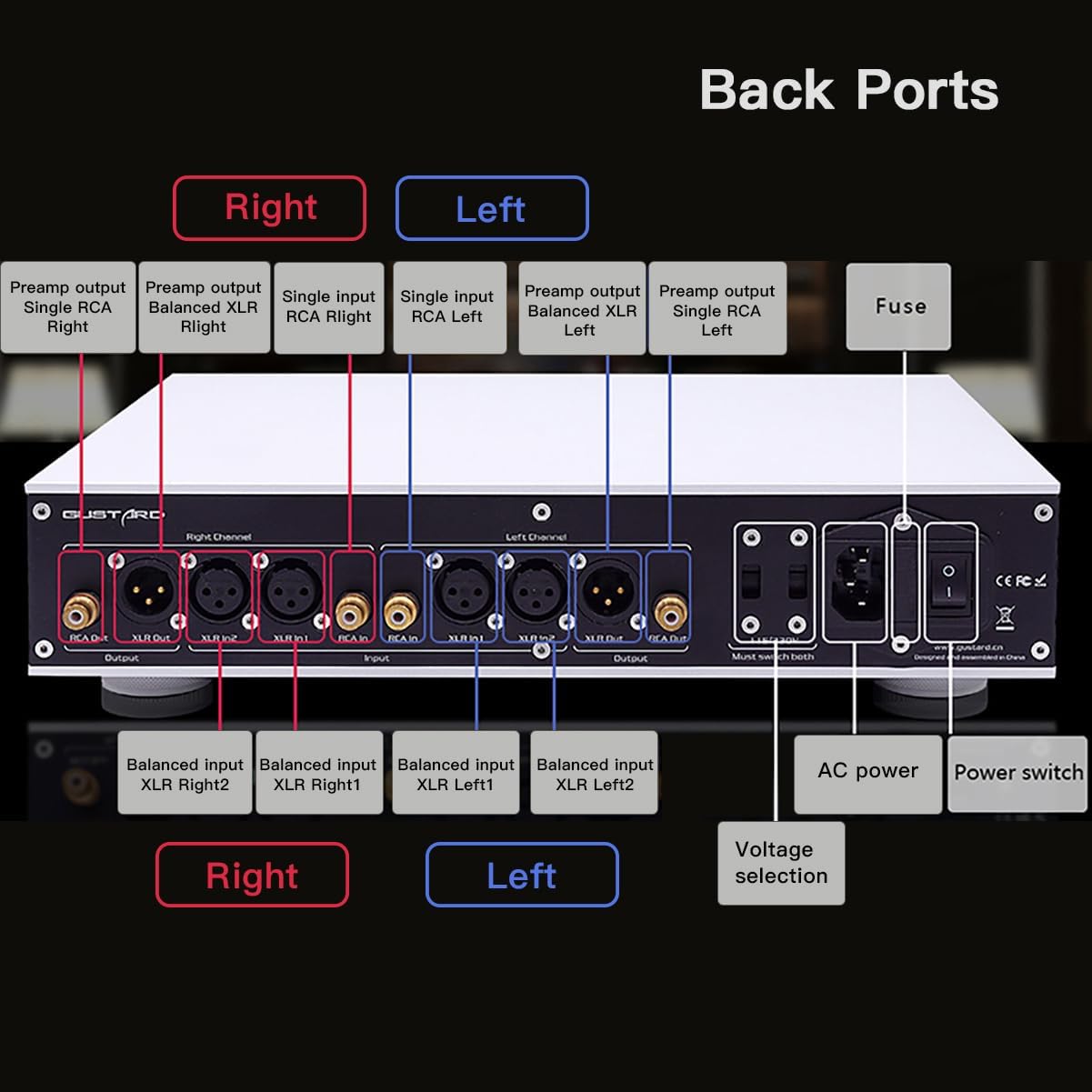

Inputs：x RCA stereo
2x XLR balanced
Outputs 1x Stereo RCA output
1x XLR stereo balanced output
1x 6.35mm headphone output
1x Balanced headphone output 4.4mm jack
1x XLR 4-pin balanced headphone output
Input sensitivity:RCA : 2-3Vrms
XLR : 4-6Vrms, max. 12Vrms
Input impedance RCA : 4 KΩ
XLR : 8 KΩ
Output impedance RCA : 100Ω
XLR : 100Ω
Frequency response:20-80kHz / -0.1dB
SNR:> 123dB
Crosstalk: < -123db 1khz
THD+N:< 0.0002%
IMD:< 0.0003%
Output impedance 6.35mm jack: 0.05Ω
Balanced outputs (jack 4.4 and XLR 4 pins): 0.1Ω
Frequency response:20-80kHz / -0.1dB
SNR:20-80kHz / -0.1dB
Crosstalk :< -120db 1khz
THD+N:< 0.0005% @ 9700mW 32Ω load
IMD:< 0.0005% @ 9700mW 32Ω load
Max. undistorted output power:6000mW @32ohm load
Max. output power:12000mW @32ohm load (THD=1%)
Load power (per channel):64Ω 7350mW
150Ω 3125mW
300Ω 1576mW
600Ω 788mW
Power supply:100-240V AC (Selector on rear panel)
Power consumption:< 30W
Dimensions:330x 260 x 65mm
Gross weight:7Kg
Package: 1x Gustard H26 preamplifier/headphone amplifier

ProductSiteLaunchDate : 2024-08-28T09:48:56.739Z
Size : 200mmx70mmx25mm
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 52161547
Voltage : 240 volts
WarrantyDescription : Manufacturer warranty for 90 day
