Specification
Brand : Honio
BulletPoint1 : PCB Board: Made of premium PCB board, this high power amplifier is and for long term use, you can take it with confidence!
BulletPoint2 : Easy Carrying: Comes with a small size and lightweight as well, you can easily carry this board for convenient using.
BulletPoint3 : Upgraded Performance: The ungraded version of the board possesses circuit optimization, increased horn relay , startup delay, shutdown break, effectively solved the impact of switching.
BulletPoint4 : Working Details: Efficiency of this board is greater than or equal to 90%. The frequency response range is from 20Hz to 20KHz, 50 times voltage magnification. And it possesses Output DC bias speaker .
BulletPoint5 : Multi : This board features multi function, including output short circuit , output DC bias horn , over temperature . When the temperature of heat sink FET is higher than 100¡æ, the output will be closed.
ExternallyAssignedProductIdentifier : 7598724034799

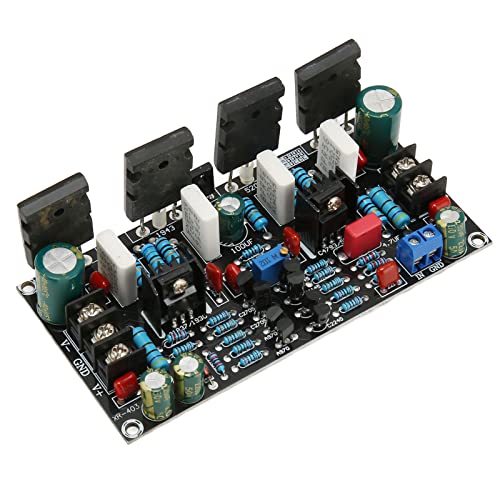

ItemName : Honio 200W High Power Mono Digital Power Amplifier Board for Speaker
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 15 centimeters
ItemPackageDimensions_Width : 11 centimeters
ItemTypeKeyword : audio-component-amplifiers
Manufacturer : Honio
Material : PCB
MaximumSupplyVoltage : 90 volts
MinimumSupplyVoltage : 20 volts_of_direct_current
ModelNumber : Honio6k9yt5bwi7
MountingType : Surface Mount
NumberOfChannels : 1
OperatingTemperature : -40 degrees_celsius
OutputPower : 200 watts
PackageTypeName : box or envelope
PartNumber : Honio6k9yt5bwi7
ProductDescription : Specification:
Item Type: High Power Amplifier Board
Mode: IRS2092S
Material: PCB
Power Supply Voltage: DC power supply ± 45-± 70V (+- 65V power supply is recommended)
Rated Output Power: 500W (± 65V power supply 4 Ω load, distortion 1%)
Efficiency: Greater than or equal to90%
to Noise Ratio: 90dB
Total Harmonic Distortion:
380W (± 70 power supply 4 ohm horn, distortion less than 0.1%)
280W (± 70 power supply 8 ohm horn, distortion less than 0.1%)
Frequency Response Range: 20Hz to 20KHz
Horn: 4 to 8 Ω
Voltage Magnification: 50 times
Input Sensitivity: 1V (RMS)
Output DC Bias , Horn : Yes
Power Amplifier Board Size: Approx. 105 x 43 x 28mm / 4.13 x 1.69 x 1.1in(L x W x H)

How to Use:
Installanduseaccordingtothewiringdiagram

Package List:
1 xHigh Power Amplifier Board

Note:
1. The rated power supply of the power supply is power supply ± 65V, and the voltage is 45 ‑ ± 70, which can work normally (if it exceeds 70V, it will burn out)
2. The recommended power supply is ± 65V filtered DC power supply.
3. Recommended 10‑18 4‑8 speakers.
4. Although the output is short circuit protected, please try not to short circuit.
5. Please check carefully before power on to ensure that the wiring is correct before power on.
6. The voltage magnification of this board is fixed at 50 times. If the output power is not enough, the front stage amplification can be increased according to the specific situation.


ProductSiteLaunchDate : 2023-06-17T01:18:09.979Z
SpecificationMet : FCC
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 52161547
Voltage : 60 volts_of_direct_current
