Specification
Brand : G-PENNY Machine
BulletPoint1 : AC 110v spindle motor (Must need connect to inverter/VFD)
BulletPoint2 : 4pcs 7series angular contact bearing, extred the spindle using life.
BulletPoint3 : Spindle connect to GND, Pin-4 connect to inverter GND.
BulletPoint4 : Spindle 1-2-3, connect to Inverter u, v, w.
BulletPoint5 : Diameters: Height 11mm
Color : Black
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier : 7316574559367
ExternallyAssignedProductIdentifier1 : 803467177663
ExternallyAssignedProductIdentifier2 : 0803467177663
IncludedComponents : Collet, Nut
ItemDisplayDimensions_Length : 25 millimeters
ItemDisplayWeight : 81 grams

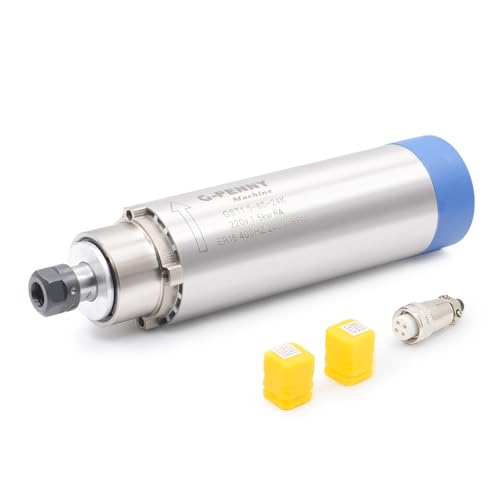

ItemName : 1.5KW ER16 D65 110V Air cooled spindle motor steel ball bearings
ItemPackageDimensions_Height : 20 centimeters
ItemPackageDimensions_Length : 40 centimeters
ItemPackageDimensions_Width : 20 centimeters
ItemPackageQuantity : 2
ItemTypeKeyword : air-bearings
Manufacturer : G-PENNY Machine
Material : Alloy Steel
ModelName : 1.5KW ER16 D65 110V Air cooled spindle motor
ModelNumber : 1.5KW ER16 D65 110V
NumberOfBoxes : 1
NumberOfItems : 2
PartNumber : 519-CBB2298R
PowerSourceType : ac

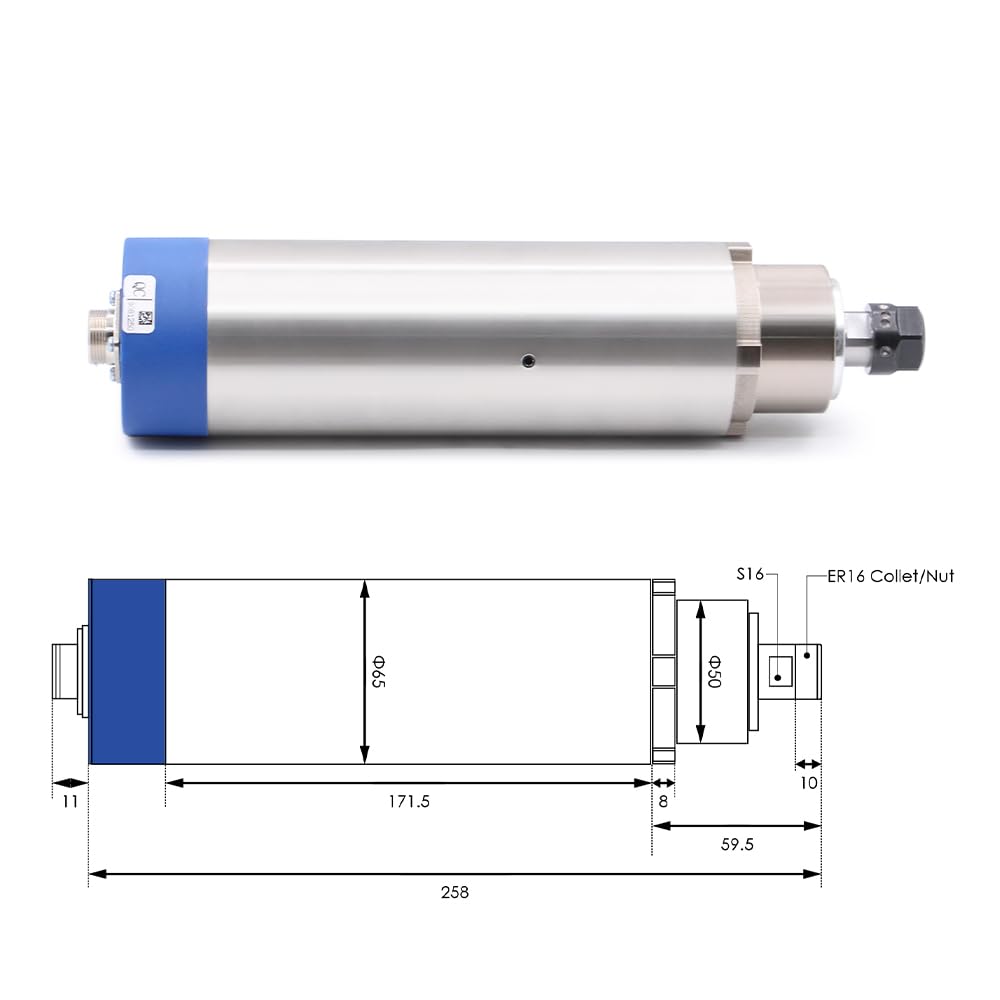

ProductDescription : Basic parameter: Size: 65 x 258mm ( Body diameter:65mm; Length:258mm) Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed. Cooling: Air cooling Power Interface: Optional H17-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.(Pay attention! our spindle "4" connecting to GND,promised personal safety!!) Power: 1.5kw (1HP=0.735kw) Voltage: 110vAC Current: 12A Frequency: 0-400Hz Speed: 0-24000rpm Runout Off: 0.01mm Bearing Type: 2X7004 P4 DT and 2X7000 P4 DT Full sealed angular contact bearings Collet: ER16 Clip Knifediameter: 10mm,9mm,8mm,7mm,6.35mm,6mm,5mm,4mm,3.175mm,3mm,2mm,1mm Air Cooling ER16 collet chunk Grease Lubrication Main Application: Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on gold,silver,copper, aluminium,Pb etc soft metal surface working.(Please pay more attention, this is wood working spindle, only can used for wood working and aluminum working,please don't use it for steel. If you need steel working,please check the metal spindle,thank you!)
ProductSiteLaunchDate : 2024-04-30T06:11:59.648Z
Size : 1.26" x 2.19" x 0.625"
SupplierDeclaredDgHzRegulation : unknown
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 27000000
Voltage : 110 volts_of_alternating_current
