Features:

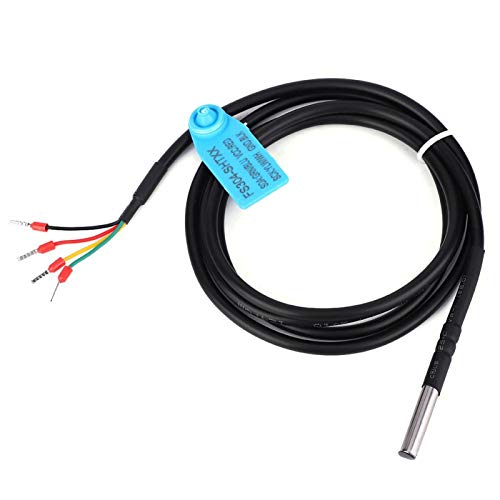

1. The temperature and humidity sensor probe is a cable type sensor in the digital temperature and humidity sensor series.
2. Using the world's advanced temperature and humidity sensors as the core components to ensure high reliability and excellent long term stability.
3. It has the advantages of excellent quality, high protection level, ultra fast response, and high cost performance.
4. Can be applied in computer room monitoring, HVAC, weather station, warehouse, construction site, concrete test block inspection, agricultural greenhouse, flower nursery and soil temperature and humidity measurement.
5. Fully calibrated, excellent long term stability.
6. Digital output, I2C interface.
7. Low power consumption, low cost, small size.
8. DFN package for reflow soldering.
Specification:
Condition: 100% Brand New
Item Type: Temperature and Humidity Sensor
Model: FS304-SHT30/FS304-SHT31/FS304-SHT35 (Optional)
Working Current: <10mA
Temperature Measurement Range: -20 ° C ~ 100 ° C
Humidity Measurement Range: 0~100%RH
Working Conditions: - 40 ° C ~ 125 ° C, 0 ~ 99% RH
Storage Conditions: - 20 ° C ~ 80 ° C, 0 ~ 95% RH
Shell: 304 stainless steel, IP67 waterproof
Line Length: Approx. 150cm / 59.1in
Weight: 61 g / 2.2 oz(approx.)
ModelHumidity Accuracy (%RH)Temperature Accuracy (°C)Voltage (V)
SHT30±2±0.23.3-5
SHT31±2±0.23.3-5
SHT35±1.5±0.13.3-5
Package List:
1 x Temperature and Humidity Sensor
1 x Line Mark
