Specification
Brand : TECHTONGDA
BulletPoint1 : *Accurate Printing*The Powerful vacuum makes sure the printing object can be tightly adsorbed onto the pallet, to prevent the printing object moving when printing. The light printing object will not be sticked with the screen when lifting up the screen.
BulletPoint2 : *Wide Application* This printing press is equipped with vacuum pallet that can guarantee precise and fine printing effect.It can be used to printing all kinds of light item such as transfer paper, PVC, PET, PC and other soft/hard film, board, paper. It can also be used for the fine printing on cartons, glass, wooded/metal/plastic plate and etc.It is NOT suitable for printing cloth, ribbons and other textile products.
BulletPoint3 : *Micro-registration Function* This is screen printing press with 3D micro-regstration function. It allows you adjust the screen in 3 directions.The height of the screen can be adjusted.The screen can be adjusted within 3/4 inch in left-to-right and back-to-forward direction.
BulletPoint4 : *Great Design* The vacuum pallet is made of stainless steel with laser cutting technology.Pallet area: 20*24 inches.Vacuum area: 16.5*20.5 inches. Equipped with 4 gravity balance plates, they are used to keep balance when lifting the screen according to weight of your screen, it can be moved forward and back within 4 inches. The lifting angle/height can be adjusted as required.
BulletPoint5 : Screen clamp size: 15.5" x 3"; Max Screen Frame thickness: 2"; Recommended Printing area: 16" x 20"; Machine size: 30x20x16 inches; Max Screen Frame size: 20x24x2 inches
Color : White
Color1 : Blue
Color2 : Silver
CompatibleDevices : Personal Computer
CompatibleMaterial1 : Plastic
CompatibleMaterial2 : Metal
CompatibleMaterial3 : Stainless Steel
CompatibleMaterial4 : Polycarbonate
CompatibleMaterial5 : Polyethylene Terephthalate
CompatibleMaterial6 : Polyvinyl Chloride
ExternallyAssignedProductIdentifier1 : 0748497499135
ExternallyAssignedProductIdentifier2 : 748497499135

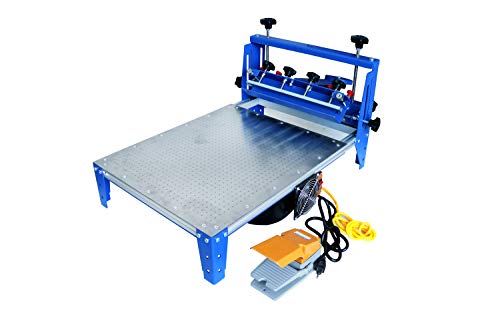

ItemName : TECHTONGDA Vacuum Screen Printing Press Micro-Registration 20x24 Inch Silk Screen Printing Machine with Stainless Steel Pallet
ItemPackageDimensions_Height : 46.482 centimeters
ItemPackageDimensions_Length : 9.906 centimeters
ItemPackageDimensions_Width : 10.922 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : screen-printing-accessories
Manufacturer : TECHTONGDA
Material1 : Plastic
Material2 : Metal
Material3 : Stainless Steel
MountingType : Wall Mount, Ceiling Mount, Tripod Mount, Floor Mount
NumberOfItems : 1
PaperFinish : smooth
PartNumber : 006156

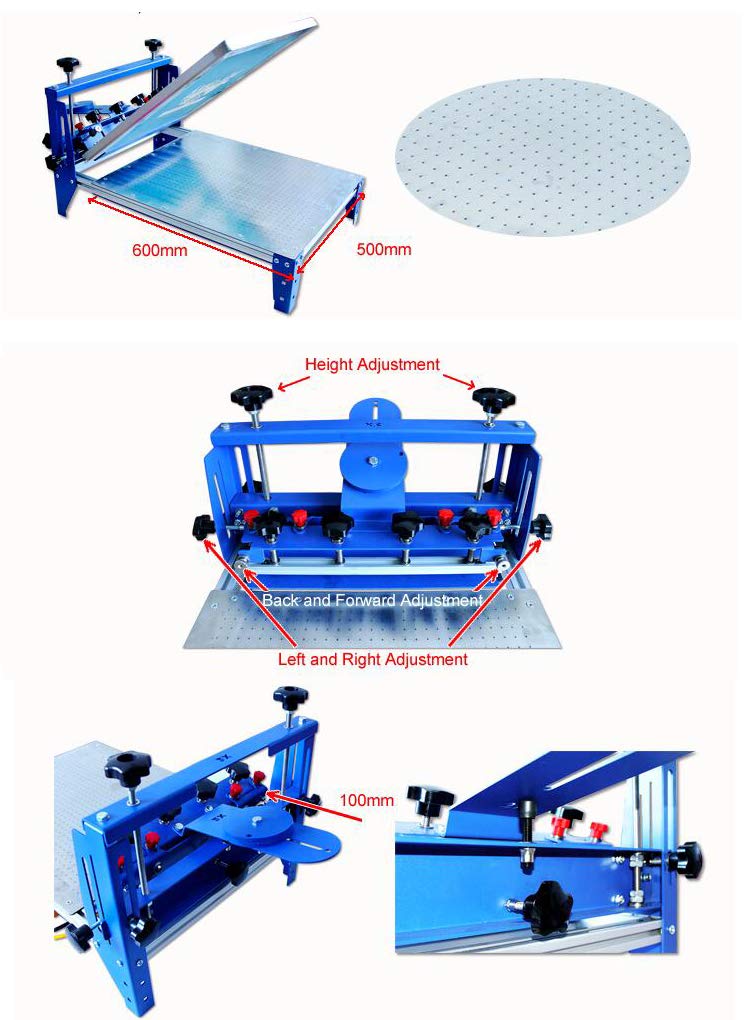

ProductDescription : Height adjustment: place the screen frame flat on the platform. According to the substrate height or printing requirements, rotate the up and down adjustment handle to reach the appropriate height, and lock the height through the two rear positioning handles.
Left and right adjustment: loosen the handle on both sides of the nose, and rotate the handle to move slightly left and right as required; When it is done, tighten both handles.
Back and forward adjustment: first, slightly loosen the four red knobs on the front of the chuck, then loosen the fine-tuning knobs on both sides of the front of the chuck and make front and rear fine-tuning as required. After the fine-tuning, tighten the knob and tighten the four red knobs on the top of the chuck.
When printing object is too small, adsorption maybe reduced, you can cover the holes to increase the vacumm power.
We adopt advanced metal electrostatic spraying technology that can make machine acid and alkali resistance, corrosion resistance, rust proof.You can use it easily in a long-term;
Item include: 1 set 20"x24" Three Directions Micro-adjustable Vacuum Screen Printer---006156
ProductSiteLaunchDate : 2019-08-07T07:00:00.000Z
SheetCount : 1
Size : 20x24 Inch
UnitCount : 1
UnspscCode : 31000000
