Specification
AgeRangeDescription : Adult
Brand : Taidacent
BulletPoint1 : Temperature and humidity sensors mostly use temperature and humidity integrated probes as temperature measurement components
BulletPoint2 : collect temperature and humidity signals, and process them after voltage stabilization filtering
BulletPoint3 : operational amplification, non-linear correction, V/I conversion constant current and reverse protection circuits.
BulletPoint4 : Converted into a current signal or voltage signal output in a linear relationship with temperature and humidity
BulletPoint5 : Or directly through the main control chip for interface output such as 485 or 232.
Color : White
Department : mens clothing
ExteriorFinish : Black
ExternallyAssignedProductIdentifier1 : 0792323450821
ExternallyAssignedProductIdentifier2 : 792323450821
FabricType : 89% Cotton, 8% Polyester, 3% Elastane
IncludedComponents : hygrothermograph

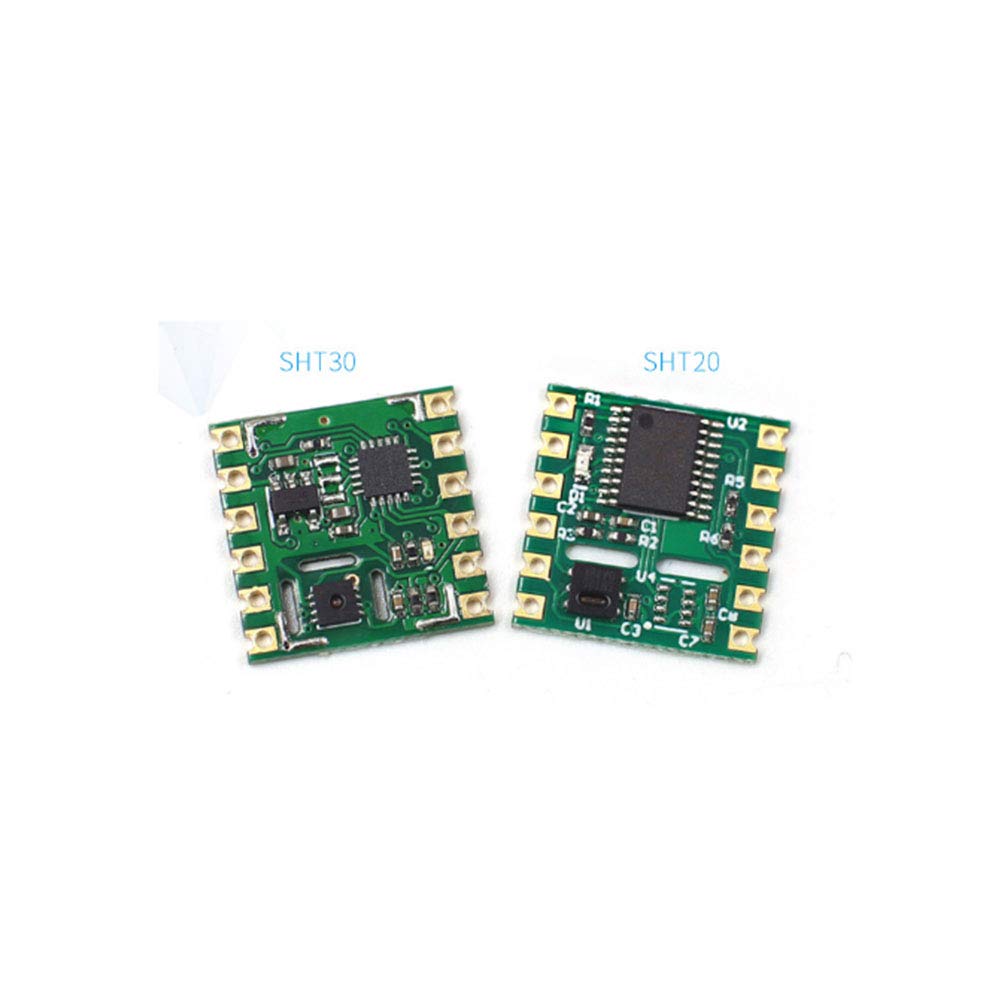

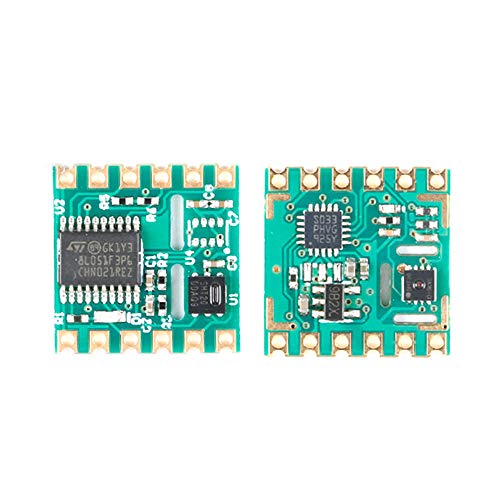

ItemName : Taidacent SHT20 SHT30 Temperature and Humidity Sensor Module Serial Port TTL IIC I2C ASCII Modbus Digital Output Temp and Humidity Meter (SHT20)
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : humidifier-accessories
Manufacturer : Taida
Material : plastic
ModelNumber : 9UR66P4P10Z33921409A3N
MountingType : Tabletop
NumberOfItems : 1
PartNumber : ZC-SHT2030TempRH-210303
Pattern : Solid
PocketDescription : "Zipper Pocket"
ProductDescription : SHT20 temperature and humidity sensor
Voltage: 2.1V~3.3V
Working current: average 0.21mA (10Hz 3.3V)
Serial port baud rate: 115200
Communication method: TTL serial port (only supports ASCII output)
Return rate: 0.1/0.2/0.5/1/2/5/10Hz optional
Temperature range: -40~125°C
Temperature accuracy: ±0.3°C
Humidity range: 0-100%RH
Humidity accuracy: ±3%RH
Working temperature: -40°C~+125°C
Weight: 1g
Product size: 15.24mm X 15.24mm X 2mm
Pad spacing: top and bottom 100mil (2.54mm), left and right 600mil (15.24mm)

SHT20 Pin interface
1. DO, chip DO pin
2. VCC, 3.3V input
3. RX, serial data input, TTL level
4. TX, serial data output, TTL level
5. GND, ground wire
6, D1, chip D1 pin
7, D2, chip D2 pin
8, VCC, 3.3V input
9, SCL, I2C clock line
10. SDA, I2C data line
11. GND, ground wire
12. D3, chip D3 pin
SHT30 temperature and humidity sensor
Voltage: 3.3V~5V
Working current: <6mA
Serial port baud rate: 9600 (default), 115200, 460800
Communication method: IIC, TTL serial port (Modbus mode and ASCII code mode)
Return rate: 0.1-10Hz
Temperature range: -40~125°C
Temperature accuracy: ±0.3°C
Humidity range: 0-100%RH
Humidity accuracy: ±3%RH
Working temperature: -40°C~+125°C
Weight: 1g
Product size: 15.24mm X 15.24mm X 2mm
Pad pitch: top and bottom 100mil (2.54mm), left and right 600mil (15.24mm)

SHT30 Pin interface
1, ALERT, chip SWIM pin
2, VCC, 3.3V or 5V input
3, RX, serial data input, TTL level
4. TX, serial data output, TTL level
5, GND, ground wire
6, SWIM, chip SWIM pin
7, PC6, chip PC6 pin
8, VCC, 3.3V or 5V input
9, SCL, I2C clock line
10, SDA, I2C data line
11, GND, ground wire
12, PA3, chip PA3 pin

ProductSiteLaunchDate : 2021-03-03T18:45:38.084Z
Size : Module
Style : SHT20
SupplierDeclaredDgHzRegulation : not_applicable
TargetGender : male
Voltage : 5.5 volts
