Specification
Brand : INSTRUKART
BulletPoint1 : Supply Voltage: 10-28 VDC V min = 10 V + (0.02 x load*) | Current Consumption: Max. 2 x 20 mA | Electrical Connections: screw terminals and M16 cable gland | Humidity Sensor: ROTRONIC Hygromer IN-1; Range: 0 to 100 %rh; Accuracy at 23C: 2.0 %rh; Repeatability: 0.3 %rh; Long Term Stability: <1 %rh/year; Response Time: Typically 10 s for 63% of a change 35 80 %rh (1 m/sec air flow at sensor) |
BulletPoint2 : Temperature Sensor: Pt100 1/3 Class B; Range: -40 to 60C / -40 to 140F | Accuracy at 23C: 0.3 K | Repeatability: 0.05C | Long term Stability: <1 C/year | Response Time: 4 sec for 63 % of a change from 23 to 80C (1 m/sec air flow at sensor) | Start-up Time: Typically, 3.4 s |
BulletPoint3 : Signal Type: 420 mA | Scale Limits: -999.99 +9999.99 units | Minimum/Maximum Load: 0/500 Ω | Probe Material: Polycarbonate | Filter Material: Polyethylene | Housing Material/ Protection: ABS / IP 65 | Solder: Lead-free (RoHS-compliant) |
BulletPoint4 : Fire Resistance: Conforms to UL94-HB | FDA/GAMP Compatibility: Conforms to FDA21 CFR Part 11 and GAMP4 | Electronics Operating Range: 40 to 60 C & 0 to 100% RH | Temperature Limits at Probe: -40 to 60 C | Maximum wind Velocity at Probe: 20 m/s (7,870 ft /min)
BulletPoint5 : Supply Scope: 1 Unit of Rotronic WB1XXXXX/J1 Temperature and Humidity Transmitter, Calibration certificate and Instruction Manual | Applications:HVAC, BMS Systems, Museums, Libraries, Plastic Industries, Hi Tech Workspaces, Paper Pulp Beverages, Tobacco Industries, Ducting, Mechatronics etc.
BulletPoint6 : SIMPLE TO INSTALL: Installation is easy; no tools required. Simply remove and replace from your humidifier unit when needed. Replace this filter every 6 months.
Color : white
ExternallyAssignedProductIdentifier : 7626600415957
ExternallyAssignedProductIdentifier1 : 0759224671151
ExternallyAssignedProductIdentifier2 : 759224671151
IncludedComponents : 1 Unit of Temperature and Humidity Transmitter, Instruction Manual

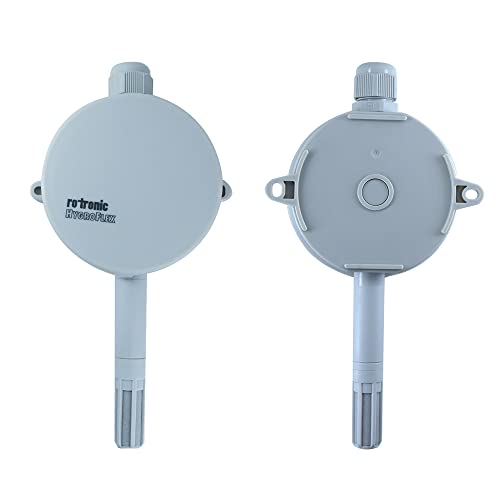

ItemName : INSTRUKART Wall Mounting Temperature and Humidity Transmitter (Temp. Range: -40 to 60°C & Humi.: 0 to 100% RH) for Mechatronics, Ducting, Beverage, Hi Tech Workspaces Model: Rotronic HF320
ItemPackageQuantity : 1
ItemTypeKeyword : humidity-meters
ItemTypeName : Ultrasonic Humidifier Atomizer
Manufacturer : INSTRUKART
MeasurementAccuracy : 23°C: ±2.0 %rh
ModelName : Ultrasonic Humidifier Atomizer
ModelNumber : DDYOOK146
MountingType : Wall Mount
NumberOfItems : 1
OperationMode : Ultrasã³Nico
PartNumber : IM-HF-320
PowerSourceType : Corded Electric
ProductDescription : Wall Mounting Temperature and Humidity Transmitter HF320 transmitters measure temperature, relative humidity and the dew or frost point. The HF320 is designed for fixed installation in cost sensitive HVAC applications where conditions are within the range of 0 to 100 %RH and 0 .50 C. Measurement interval: typically 1 second (without calculations) | Probe adjustment by software: Yes, with service cable | Device Protection by password: Yes | Analog output signal (standard): 020 mA, 4 20 mA; 0 1 V, 0 5 V, 0 10 V | Min. / max. load voltage / current signal: V min = 10 V + (0.02 x Load*) * = Resistance in ohms | Service Information: Calibration interval | Max. cable length: Up to 5 m with passive cable. Up to 100 m with active cable | Probe material: Polycarbonate | Probe protection: Polycarbonate plastic cage, white | Filter cartridge: Polyethylene dust filter, gray, 20 um | Enclosure material: ABS
ProductSiteLaunchDate : 2024-04-25T11:17:46.077Z
RegulatoryComplianceCertification : RSHSS.0635GD-004
RoomType1 : Living Room
RoomType2 : Office
RoomType3 : Bedroom
Runtime : 24 hours
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UpperTemperatureRating : 140 degrees_fahrenheit
Voltage : 28 volts
