Specification
Brand : KEAUTE
BulletPoint1 : The card reader supports 125KHz HID card, please choose the card reader you need before purchasing.
BulletPoint2 : The normal specification of this product is DC 12V. Wiegand 26-37, RS232, RS485, TTL level communication options
BulletPoint3 : The reader will display excellent LED lights.
BulletPoint4 : The module comes with a single-chip microcomputer, serial communication, simple hardware connection, and can be used on any platform with a serial port.
Color : Black HID RS232
ExternallyAssignedProductIdentifier : 6259850634451
IncludedComponents : Built-in buzzer
ItemName : RFHid Card Induction Card Swiping Machine, Waterproof RF Card Reader, Wiegand 26-37, RS485, RS232, TTL Level Fromat Interface (Black HID RS232)
ItemTypeKeyword : access-control-keypads
Manufacturer : KEAUTE
Material : Acrylonitrile Butadiene Styrene (ABS)
NumberOfItems : 3000
PartNumber : KAT055
ProductDescription :

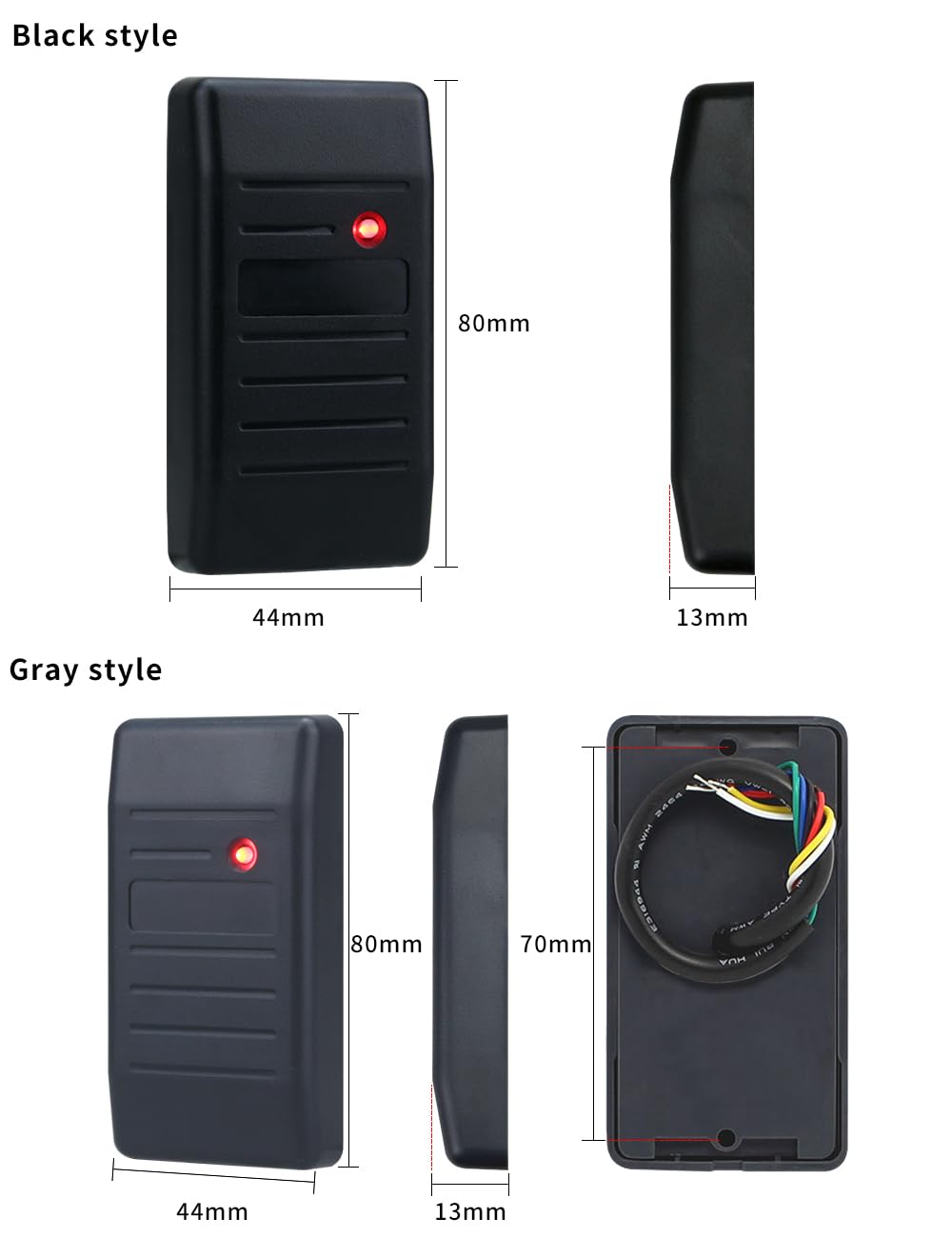

Product parameters
Product name： HID Access Control Reader
Material： ABS & Resin adhesive (effectively waterproof)
Frequency： 125Khz
Card reading type： HID Card
Read Range： 3~15CM
Operating Voltage： DC 9V ~ 16V
Working humidity： 10% ~ 90%
Interface method： WG26~37, RS485, RS232, TTL
Operating Temperature： -25℃ ~ 85℃
Verification method： Swipe card verification
Communication distance： Wiegand interface ≤ 100 meters, RS232/TTL ​interface ≤ 10 meters, RS485 interface ≤ 1200 ​meters (recommended within 800 meters)
Installation Notes
1.Paste the sticker in the card reader box on the position where the card reader is to be installed, open two positioning holes and a middle outlet hole according to the marked position, and plug the positioning holes with rubber plugs. (Note: if it is installed on the wall If installed, the concealed installation needs to be embedded in the 86 installation box)
2.Use a Phillips screwdriver to unscrew the screws that fix the panel and the bottom plate, remove the bottom plate, and use the screws to fix the bottom plate to the wall on the side of the control entrance.
3.Pass the wire of the card reader through the outlet hole, connect the wires according to the instructions, and fix the screws of the card reader panel and the bottom plate.
