Specification
Brand : AOTROY
BulletPoint1 : 1 axis or 2 axis inclinometer sensor is an industrial angle tilt sensor, used for measurement with range ±3°, ±10°, ±15° or ±30°.
BulletPoint2 : Tilt sensor is a single-axis/biaxial inclinometer sensor with full temperature compensation and high precision, with MODBUS communication protocol, which can replace traditional level gauges.
BulletPoint3 : The inclinometer sensor has digital signal transmission and supporting computer software, data measurement and recording can be carried out at the same time, the output interface RS485.
BulletPoint4 : The features of non-contact installation make the inclinometer sensor have good system integration. Just fix the tilt sensor on the surface of the object to be measured with screws, and the inclination angle of the object can be automatically calculated. Simple operation and convenient installation.
BulletPoint5 : The inclinometer sensor has small size, strong ability to resist external electromagnetic interference, strong ability to withstand shock and vibration, and it is widely used in the field of industrial measurement.
IncludedComponents : Inclinometer Sensor

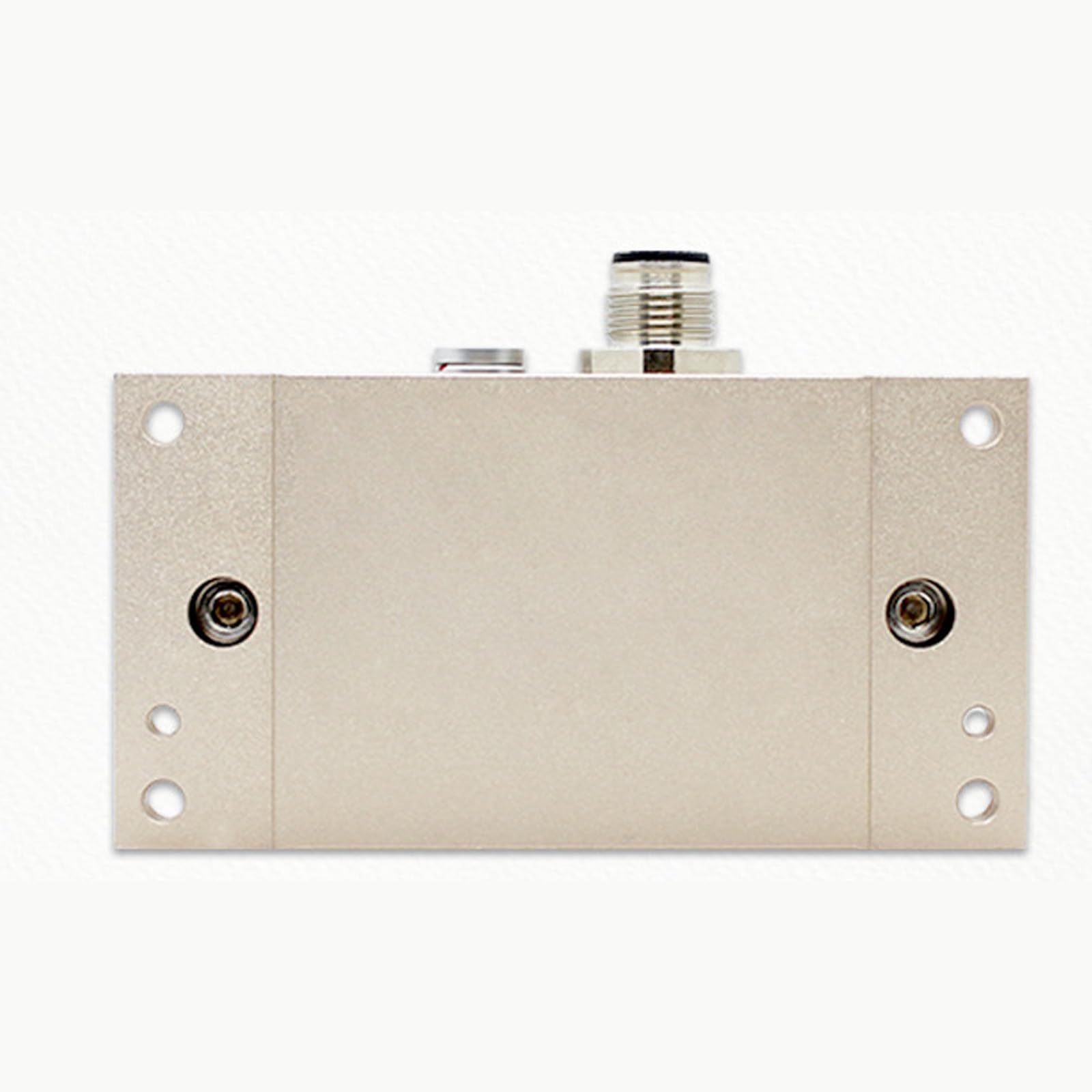

ItemName : Inclinometer Sensor, ±30° Single-Axis Industrial Angle Tilt Level Tilt Measurement Sensor for Bridges, Railways
ItemTypeKeyword : acceleration-sensors
Manufacturer : AOTROY
Material : Copper
MountingType : Flange Mount
NumberOfItems : 1
PartNumber : ACA816--7
ProductDescription :

Model ：ACA816/ACA826T

Condition Measuring Axis ：X/XY (single/Biaxial)

Measuring Range* ：±3°/±10°/±15°/±30°

Resolution : 0.0005°/0.0005°/0.0005°/0.0005°

Absolute Accuracy :0.002°/0.003°/0.005°/0.01°,@25℃

Long Term Stability:0.01°/0.01°/0.02°/0.02°

Zero Temperature Coefficient : ±0.0002°/℃,-40~85℃

Sensitivity Temperature Coefficient : ≤50 ppm/℃≤50 ppm/℃≤50 ppm/℃≤50 ppm/℃,-40~85℃

Power On Time : 0.5s

Response Time : 0.02s

 Response Frequency :5Hz, 15Hz, 35Hz, 50Hz for set

Output Signal :RS485 (Modbus protocol)

Electromagnetic Compatibility :According to EN61000 and GBT17626 MTBF :≥50000 hours/times

Insulation Resistance : ≥100MΩ

Shockproof :100g@11ms, 3 Times/Axis (half sinusoid))

Anti-Vibration : 10grms, 10～1000Hz

Protection Grade : IP67

High Seismic Performance:＞2000g

Cables : Standard 2m length, wearproof, wide temperature, shielded cables 5P*5.7mm aviation connector

Dimension : 92*48*36mm

Weight :235g (without cable)

ProductSiteLaunchDate : 2024-05-13T03:24:01.466Z
Size : Single Axis,±30°
Style : RS485
