Specification
Brand : STEPPERONLINE
BulletPoint : 42HB34F08AB 42HB34F08B stepper motor -3D printer dedicated ball screw stepper motor module

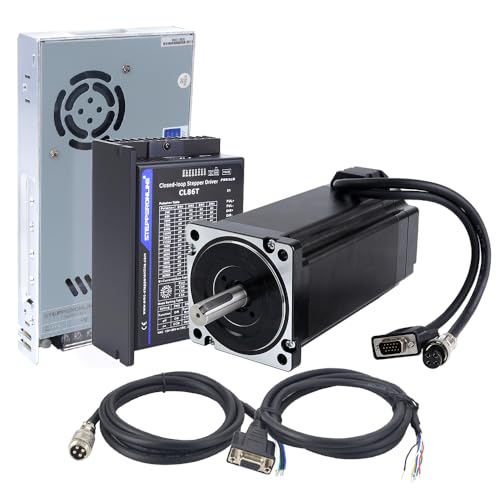

BulletPoint1 : Items in Kit
BulletPoint2 : 1 x 12.0Nm Closed loop stepper motor 34HS59-6004D-E1000
BulletPoint3 : 1 x Closed Loop Stepper Driver V4.1 0~8.0A 18~80VAC/24~110VDC for Nema 34 Stepper Motor CL86T-V41
BulletPoint4 : 1 x 350W 60V Power Supply S-350-60
BulletPoint5 : 1 x 1.7m motor and encoder extention cables
BulletPoint6 : 1 x RS232 Debugging Cable
Color : 1
ExternallyAssignedProductIdentifier : 7597871265179
ExternallyAssignedProductIdentifier1 : 0791590889303
ExternallyAssignedProductIdentifier2 : 791590889303
Horsepower : 350 watts
IncludedComponents : Stepper Motor, Driver, Power Supply, Cable Kit
ItemName : STEPPERONLINE 1 Axis Nema 34 Closed Loop Stepper Motor 12Nm(1700oz.in) with Driver CL86T 0-8.0A 18-80VAC/24-110VDC & 60V Power Supply CNC Kit
ItemPackageDimensions_Height : 7.5 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 12 centimeters
ItemPackageQuantity : 1
ItemShape : Square
ItemTypeKeyword : 3d-printer-motors
Manufacturer : STEPPERONLINE
Material : Metal
ModelName : pizarra
ModelNumber : Does not apply
NumberOfItems : 1
PartNumber : 1-CLTS120-V41
ProductDescription : Motor Specification

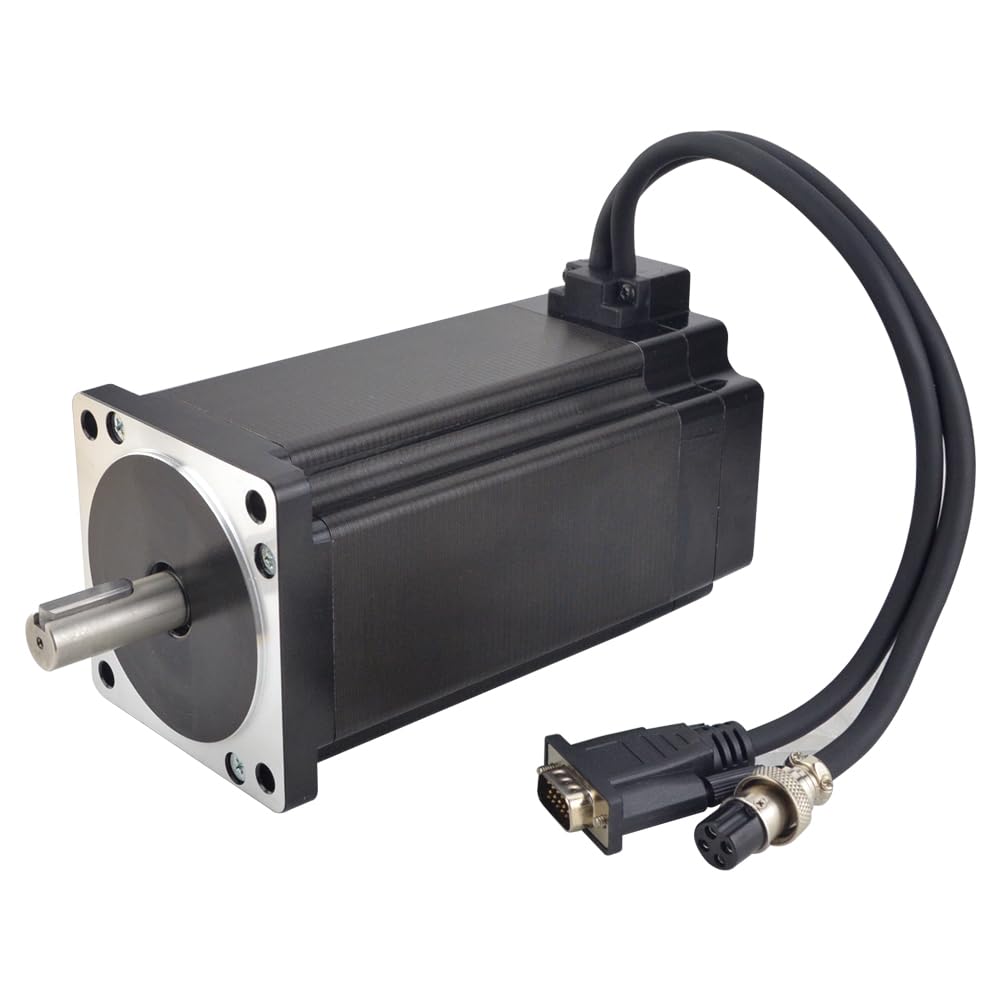

*Part Number: 34HS59-6004D-E1000
*Number of phase: 2
*Holding Torque: 12.0Nm(1699.34oz.in)
*Rated Current/phase: 6.0A
*Phase Resistance: 0.53ohms± 10%
*Inductance: 4.8mH ± 20%(1KHz)
*Frame Size: 86 x 86mm
*Body Length: 175mm
*Shaft Diameter: Φ14mm
*Shaft Length: 37mm
*Keyway Shaft Length: 25mm
*Lead Length: 300mm
*Insulation Class: B 130°C[266°F]

Encoder Specification

*Output Circuit Type: Differential type
*Encoder Type: Optical Incremental
*Encoder Resolution: 1000PPR(4000CPR)
*Output Signal Channels: 2 channels
*Supply Voltage Min: 4V
*Supply Voltage Max: 5V
*Output Current: 100mA
*Output High Voltage: 5V
*Output Low Voltage: 4.5V
*Output Frequency Max: 60kHZ

Driver Specification

*Part Number: CL86T
*Output Peak Current: 0~8.0A
*Input Voltage: +18~80VAC/24~110VDC
*Control Signal Voltage: 5V(Add 2KΩ resistor to apply 24V)
*Logic Signal Current: 7~16mA(Typical 10mA)
*Pulse Input Frequency: 0~200kHz
*Broader operating speed range
*Reduced motor heating and more efficient
*Smooth motion and super-low motor noise

Power Specification

*Part Number: S-350-60
*Input Voltage: 115/230VAC±20%
*Input Frequency: 47-63Hz
*Input Current: 40A/230VAC
*Output Voltage: 60V
*Output Current: 5.8A
*Rated Output Power: 350W
*Leakage Current: <0.5mA/230VAC
*Dimensions: 215*115*30mm(L*W*H)
*Internal EMI filter
*High efficiency low cost
*Forced air cooling by built-in DC fan
*Over current, over voltage, short circuit and overheat protections


ProductSiteLaunchDate : 2024-08-27T05:58:36.977Z
Size : Medium
Speed : 900 rpm
Style : fashion
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 26111500
Voltage : 942 volts
Voltage1 : 500 volts
Voltage2 : 220 volts
