Specification
Brand : pizarra
BulletPoint : 42HB34F08AB 42HB34F08B stepper motor -3D printer dedicated ball screw stepper motor module
BulletPoint1 : FOR NEMA 17 bipolar 1.65 inchx1.65 inchx0.79 inch 4-wire
BulletPoint2 : Short Height
BulletPoint3 : 1.8 . step angle(200 steps/)
BulletPoint4 : 13Ncm(18.4oz.in) holding
BulletPoint5 : Rated current 1.0A & resistance 3.5ohms
Color : Silver
ExternallyAssignedProductIdentifier : 4713309205637
ExternallyAssignedProductIdentifier1 : 0791590889303
ExternallyAssignedProductIdentifier2 : 791590889303
Horsepower : 200 watts

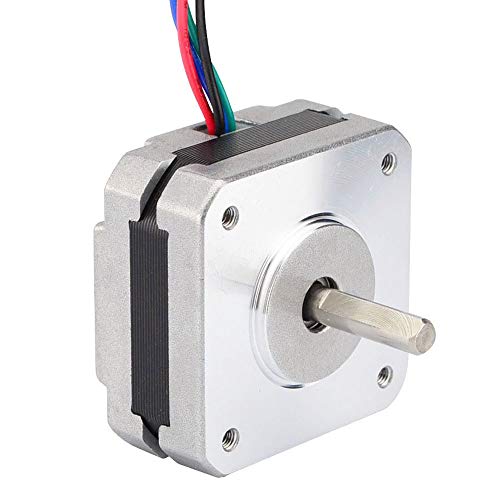

ItemName : pizarra 17Hs08-1004S 4-Lead Nema 17 20Mm 1A 13Ncm(18.4Oz.In) 42 Motor Nema17 Stepper For Diy 3D Printer
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 5 centimeters
ItemPackageDimensions_Width : 5 centimeters
ItemPackageQuantity : 1
ItemShape : Square
ItemTypeKeyword : 3d-printer-motors
Manufacturer : pizarra
Material : Metal
ModelName : pizarra
ModelNumber : 86AM85
PartNumber : 251330
ProductDescription : pizarra This is Short Height FOR Bipolar Nema 17 with 1.8 . step angle (200 steps/).
Each phase draws current 1A, allowing for a holding of 13Ncm(18.4oz.in).
Color: silver
material: metal
Electrical Specification:
Manufacturer Number: 17HS08-1004S
Motor Type: Bipolar Stepper
Step Angle: 1.8 .
Holding : 13Ncm(18.4oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 3.5ohms
Inductance: 4.5mH+/-20%(1KHz)
Specification:
Size: 42 x 42mm
Body Length: 20mm
Shaft Diameter: 5mm
Shaft Length: 20mm
D-cut Length: 16.5mm
Number of Leads: 4
Lead Length: 400mm
Weight: 140g
Connection:
Black(A+), Green(A-), Red(B+), Blue(B-)
Warning:
Make the motor connect to a constant current or chopper drive controller you motor.
Connecting the motor directly to a power supply the motor.
Package Contents:1*
Only the above package content, other are not included.
Note: Light and different displays may cause the color of the item in the a little different from the real . The measurement allowed is +/- 1-3cm.
ProductSiteLaunchDate : 2023-02-07T03:05:10.852Z
Size : ECT60 + 57AM30ED
Speed : 900 rpm
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 5.3969
UnspscCode : 26101200
Voltage : 24 volts
Voltage1 : 500 volts
Voltage2 : 220 volts
