Specification
Brand : Pyhodi
BulletPoint : 2 Pcs motor driver chip stepper motor driver Step Motor Driver QFN-24-EP(4x4) AW8646QNR
BulletPoint1 : Excellent Performance: Continuation of TMC series drivers with good silence and 16 expansions to 256 subdivisions inside the chip.
BulletPoint2 : Aluminum Alloy: This stepper motor driver is made of aluminum alloy material with high hardness, anti and anti rust, and long service life.
BulletPoint3 : Scope of Application: This stepper motor driver supports UART mode and is suitable for for MKS SGEN L without jumpers.
BulletPoint4 : Good Heat Dissipation: Compared with other TMC series drivers, this stepper motor driver has lower heating efficiency and better heat dissipation.
BulletPoint5 : Powerful Current: The stepper motor driver has a higher drive current, with a maximum current of 2.5A and a stable print current of 1.7A.

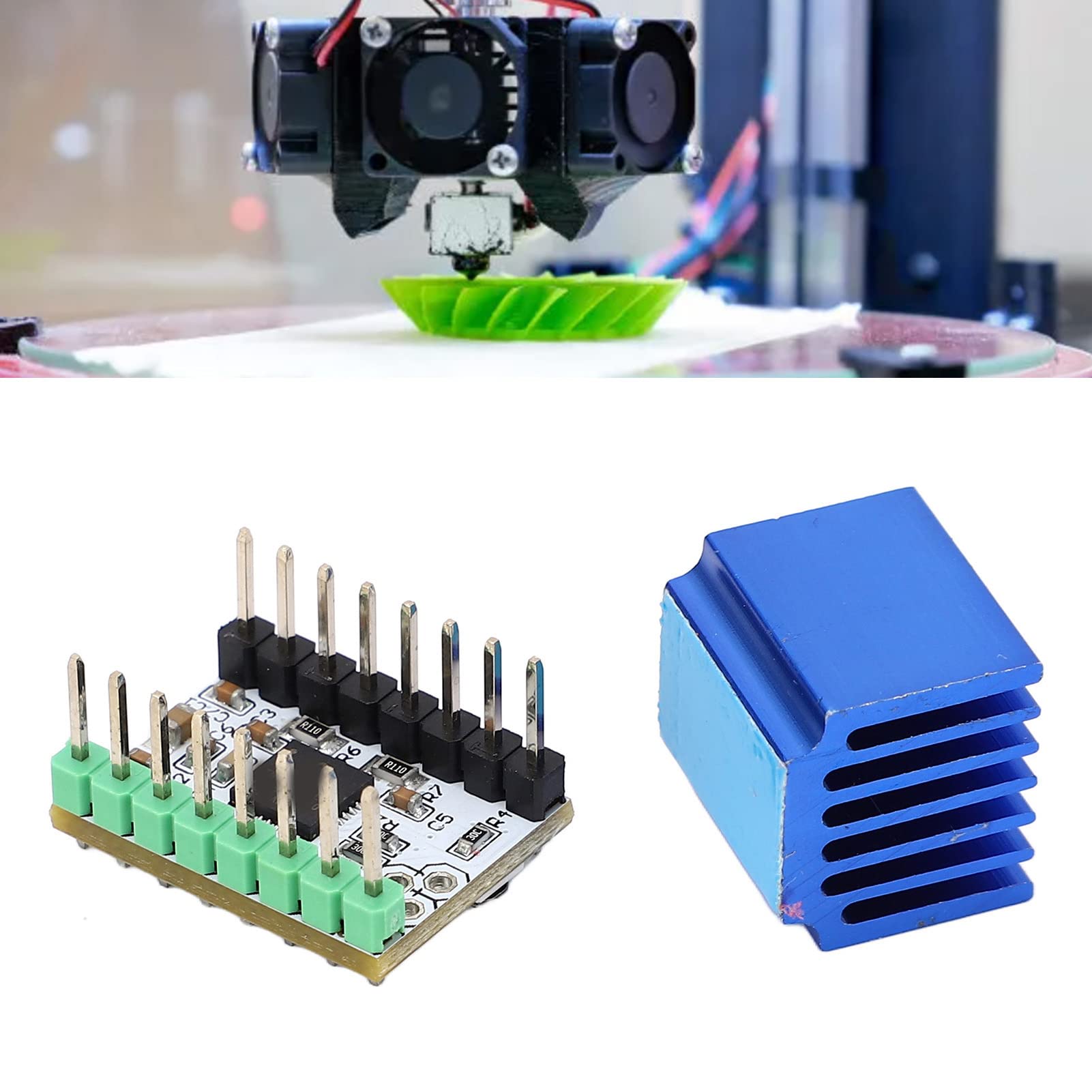

ItemName : Stepper Motor Driver , Stepper Driver Reliable Performance Mini Super Quiet Fast Heat Dissipation 5-36V for 3D Printer
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 15 centimeters
ItemPackageDimensions_Width : 12 centimeters
ItemTypeKeyword : 3d-printer-interface-and-driver-modules
Manufacturer : Pyhodi
ModelName : Pyhodi5zg7vub0iw
ModelNumber : Pyhodi5zg7vub0iw
NumberOfItems : 1
PartNumber : Pyhodi5zg7vub0iw
ProductDescription : 1. Excellent Performance: Continuation of TMC series drivers with good silence and 16 expansions to 256 subdivisions inside the chip.
2. Powerful Current: The stepper motor driver has a higher drive current, with a maximum current of 2.5A and a stable print current of 1.7A.
3. Good Heat Dissipation: Compared with other TMC series drivers, this stepper motor driver has lower heating efficiency and better heat dissipation.
4. Scope of Application: This stepper motor driver supports UART mode and is suitable for for MKS SGEN L without jumpers.
5. Aluminum Alloy: This stepper motor driver is made of aluminum alloy material with high hardness, anti and anti rust, and long service life.

Specification:
​Item Type: Stepper Motor Driver
Material: Aluminum alloy
Output Current: 1.4A
Recommended Operating Current: 1.2A
Microstep: 256 microstep subdivision
Configuration: STEP, DIR OR UART
Load Driving Voltage Range: 5-36V
IC Logic Operating Voltage: 3.3V, 5V

How to Use:
1. Please pay special attention to the drive direction, do not insert the reverse2. Be sure not to connect the motor when measuring the voltage, otherwise it is easy to burn the problem moving.3. When measuring the voltage should be connected to the power supply, do not just connect the USB power supply.4. When used on the printer control board, please retain the three jumper covers under the jack.5. Before adjusting the knob must be carried out in the case of power failure, adjust the completion of the power measurement, to prevent the driver or the motherboard burned6. paste heat sink, please pay attention to the distance between the heat sink and the pins, otherwise it will cause a short circuit between the heat sink and the pin corner 7. Dynamic working conditions, please do a good job of heat dissipation (heat sink and cooling fan), to prevent the drive overheating of the abnormal work.

Package List:
1 x Stepper Motor Driver
1 x Heat
ProductSiteLaunchDate : 2023-12-23T00:00:00.000Z
UnitCount : 1
