Specification
Brand : Acouto
BulletPoint1 : 1. The 5V Servo interface ensures prec and jitter- control over connected devices for applications requ high-resolution movements.
BulletPoint2 : 2. Versatile compatibility with a of motors drive up to 4 DC motors 2 stepper motors or 2 Servo motors with ease.
BulletPoint3 : 3. Each bi-directional DC motor can be individually controlled with 8-bit speed selection owing for customized and accurate movement.
BulletPoint4 : 4. The 4 H-Bridges provide power very with each b offe a t of 1.2A and thermal for added .
BulletPoint5 : 5. The built-in r button and external terminal power interface make this product user-friendly and adaptable to various setups and configurations.

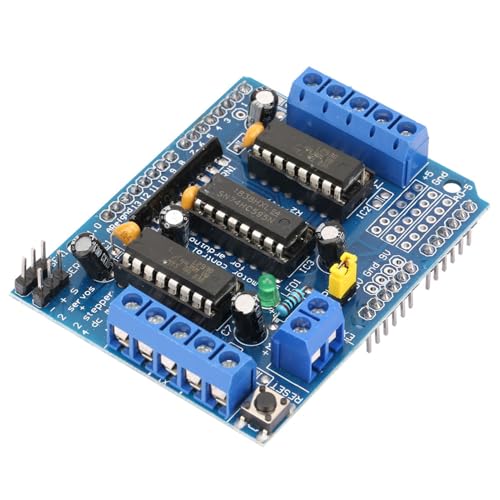

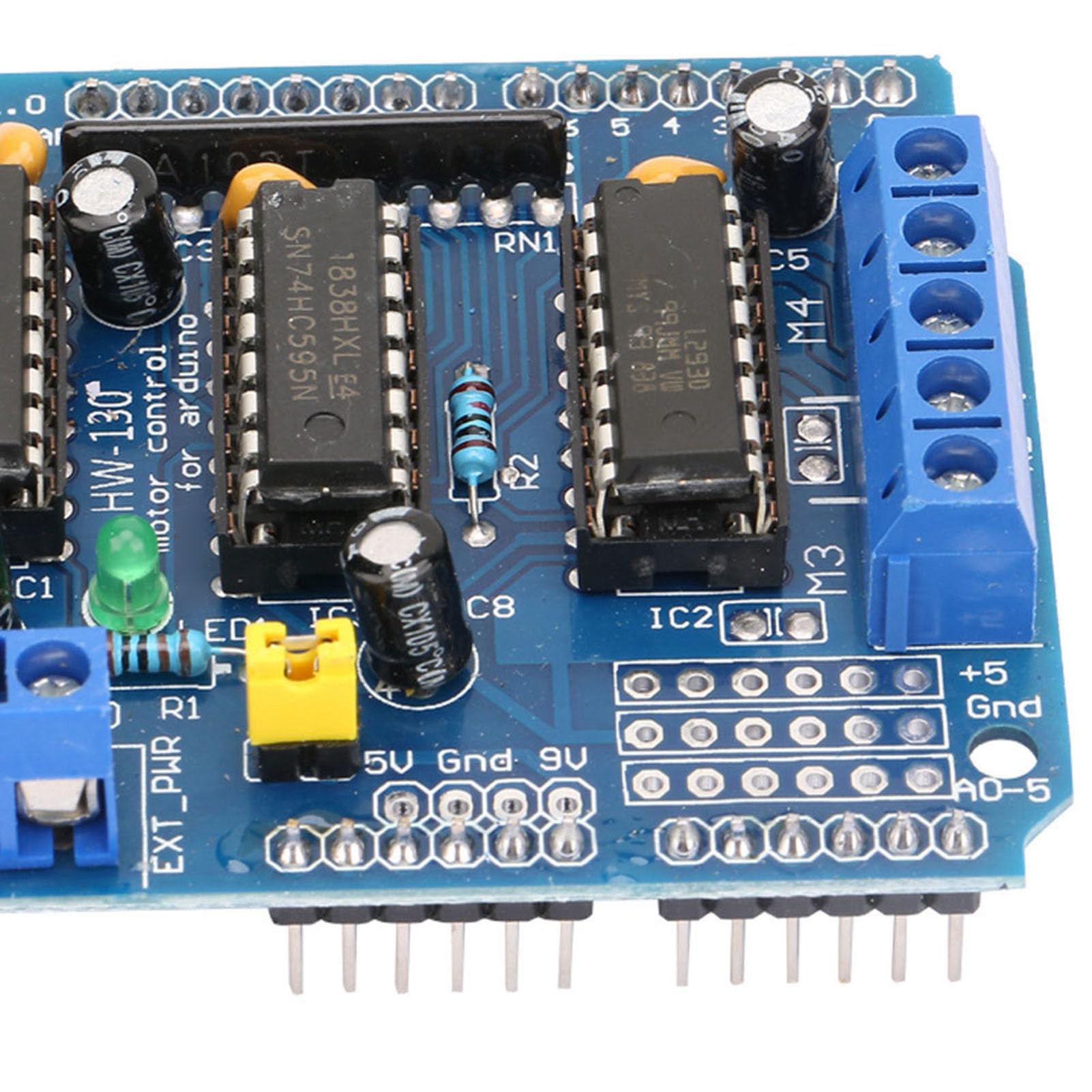

ItemName : L293D Motor Drive Expansion Board Module Motor Drive Tool for Compatible Boards Motor Drive Module for Robotics and DIY Projects
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemTypeKeyword : 3d-printer-interface-and-driver-modules
Manufacturer : Acouto
ModelName : Acoutouqyt2dn6gg
ModelNumber : Acoutouqyt2dn6gg
NumberOfItems : 1
PartNumber : Acoutouqyt2dn6gg
ProductDescription : 1. 2 interface for 5V Servo connected to the high‑resolution dedicated timer ‑ no jitter.
2. Can drive 4 DC motors or 2 stepper motors or 2 Servo.
3. Up to 4 bi‑directional DC motors with individual 8‑bit speed selection.
4. Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
5. 4 H‑Bridges: per bridge provides 0.6A (1.2A current) with thermal protection.

Spec:
L293D is a monolithic integrated, high voltage, high current, 4-channel driver. Basically this means using this chip you can use DC motors and power supplies of up to 36 Volts, thats some pretty big motors and the chip can supply a maximum current of 600mA per channel. The L293D chip is also what's known as a type of H-Bridge. The H-Bridge is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.
Features:
2 interface for 5V Servo connected to the high-resolution dedicated timer - no jitter.
Can drive 4 DC motors or 2 stepper motors or 2 Servo.
Up to 4 bi-directional DC motors with individual 8-bit speed selection.
Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
4 H-Bridges: per bridge provides 0.6A (1.2A current) with thermal
Pull down resistors keep motors disabled during power-up.
Built In Reset Button.
2 external terminal power interface, for separate logic/motor supplies.
Specification:
Motor voltage: 4.5V-25V
Current: ≤1A
PCB size: 6.7*5.3cm / 2.64*2.09in

Package list:
1 * Motor Drive Expansion Board
ProductSiteLaunchDate : 2024-08-27T15:02:53.835Z
UnspscCode : 26111704
WarrantyDescription : Manufacturer warranty for 90 day
